KEL 10-2MT Split Entry Frames
High-density KEL-10 frames up to 18 modules (18/0, 14/1, 10/2, 6/3 layouts).
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL 10/18-2MT (099042240) — 18/0
KEL 10/15-2MT (099042243) — 14/1
KEL 10/12-2MT (099042242) — 10/2
KEL 10/9-2MT (099042278) — 6/3
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Cut-Out | 61.1 × 126.4 mm |

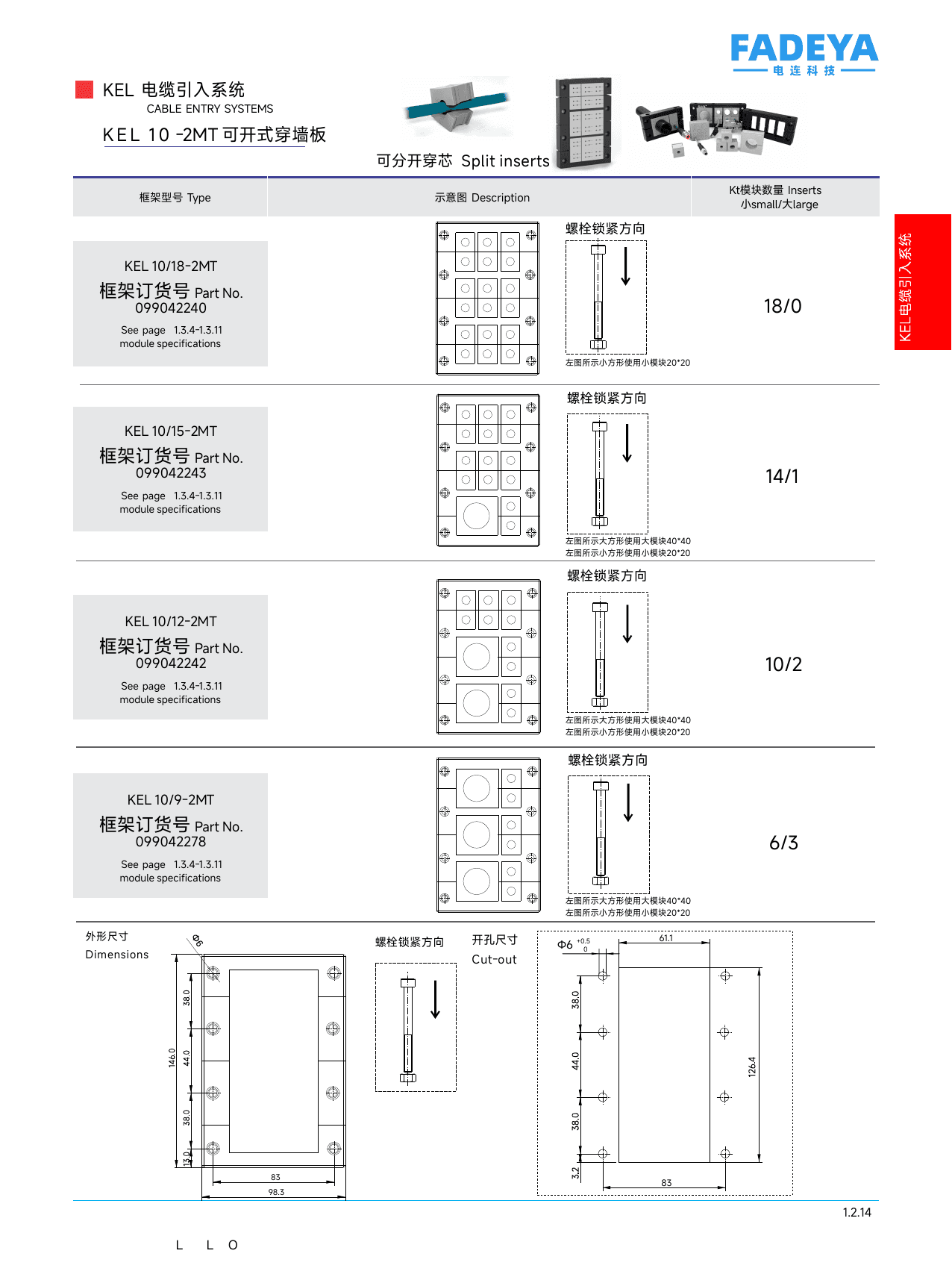

Datasheet
