KEL-FG 90° Flange Connection Seats
90° flange seats for cables/corrugated pipes with connectors — mount KEL frames at a right angle to the wall. Strain relief per EN 62444.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL 6-FG (099047333) — suits KEL 6
KEL 10-FG (099047334) — suits KEL 10
KEL 16-FG (099047335) — suits KEL 16
KEL 24-FG (099047336) — suits KEL 24
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Strain Relief | EN 62444 |
| Suits Frames | KEL 6 / 10 / 16 / 24 |

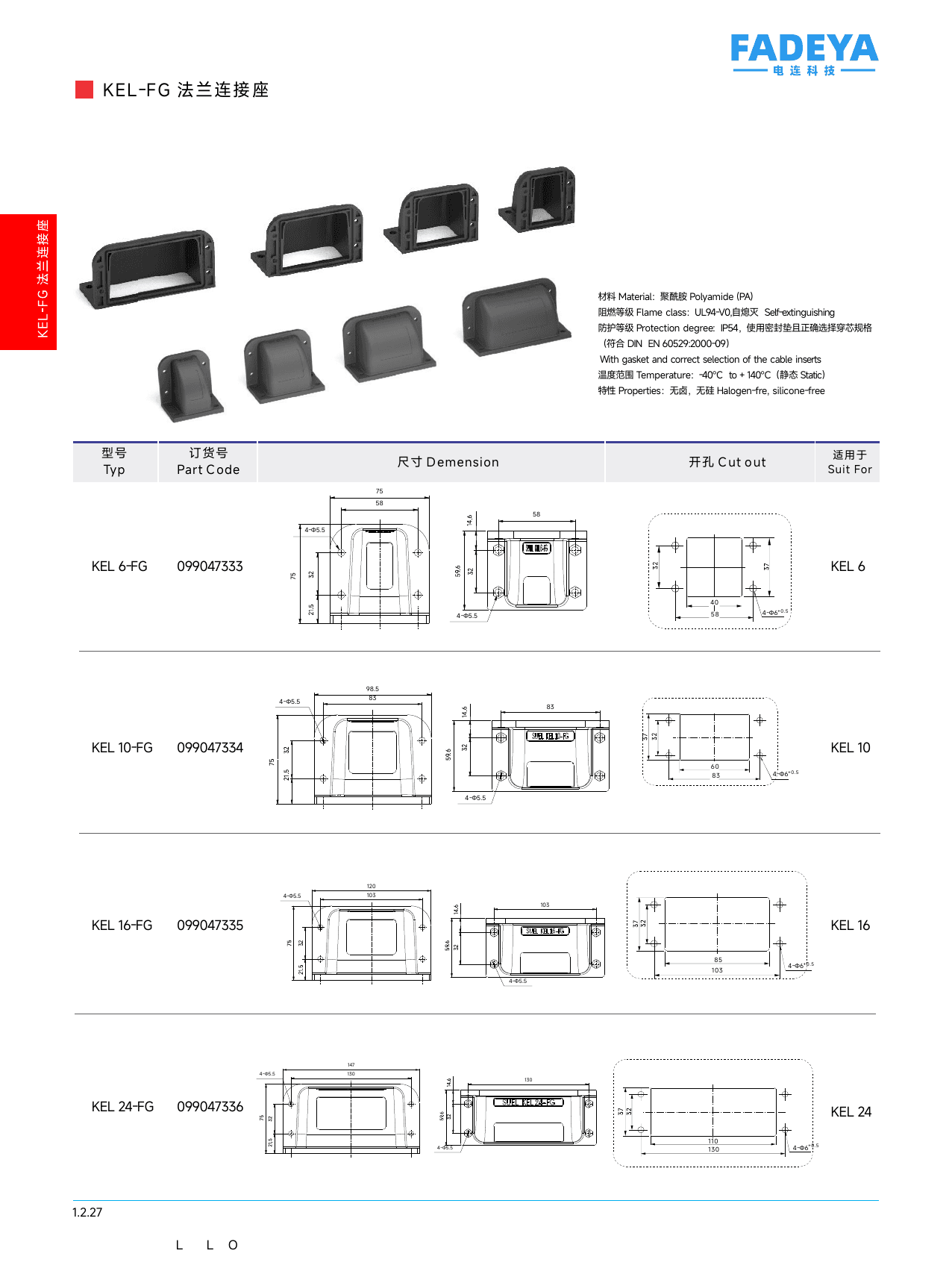

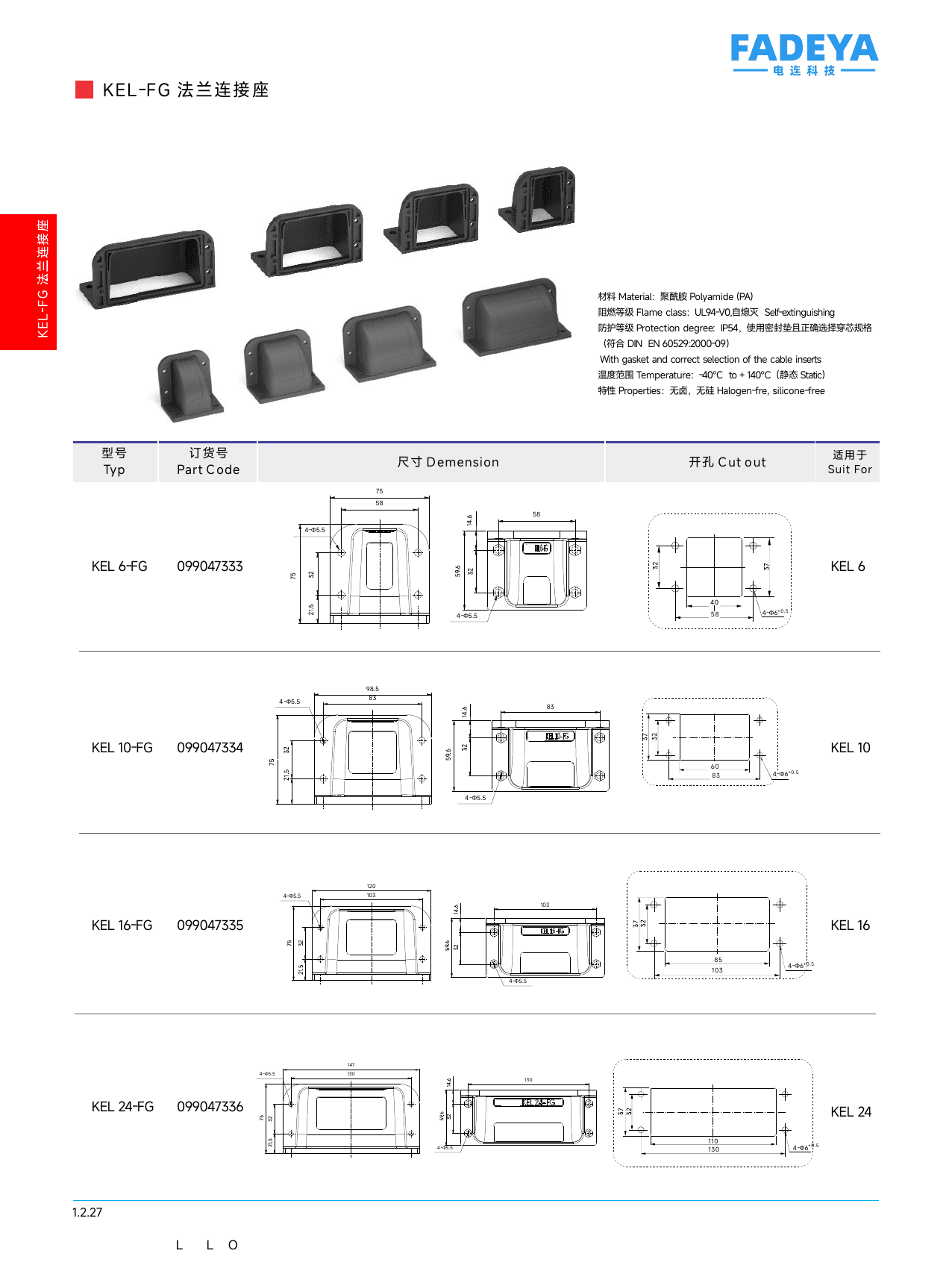

Datasheet
