KTF Standard Bellows Modules

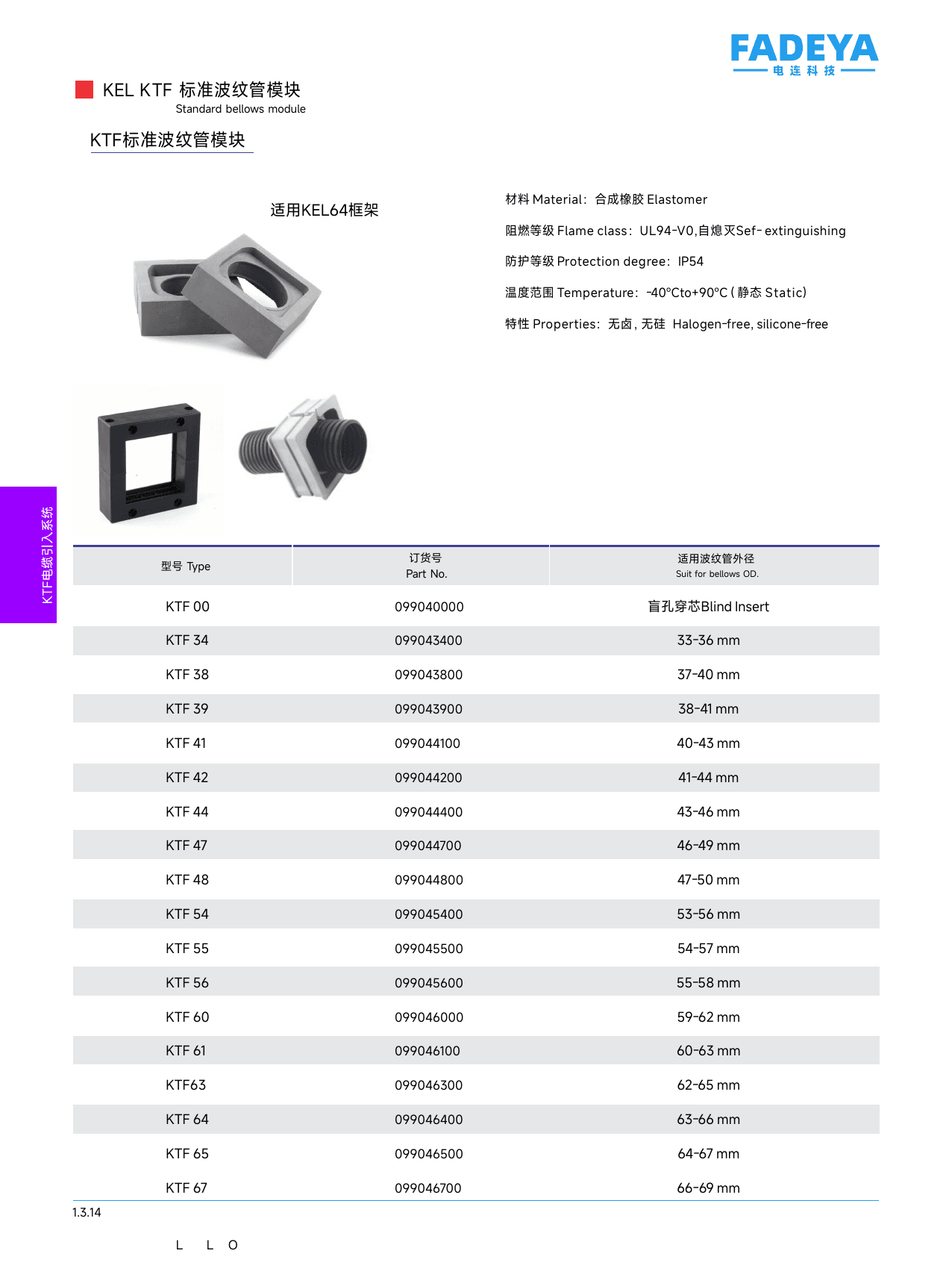

Bellows-tube modules for the KEL-64 frame, suiting corrugated-conduit OD 33–69 mm (plus blind insert).
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KTF 00 (099040000) — Blind insert
KTF 34 (099043400) — 33-36 mm
KTF 38 (099043800) — 37-40 mm
KTF 39 (099043900) — 38-41 mm
KTF 41 (099044100) — 40-43 mm
KTF 42 (099044200) — 41-44 mm
KTF 44 (099044400) — 43-46 mm
KTF 47 (099044700) — 46-49 mm
KTF 48 (099044800) — 47-50 mm
KTF 54 (099045400) — 53-56 mm
KTF 55 (099045500) — 54-57 mm
KTF 56 (099045600) — 55-58 mm
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Synthetic rubber (elastomer) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 |
| Operating Temp. | -40 to +90 °C |
| Suits Frame | KEL-64 |
| Bellows O D | 33 to 69 mm |
Datasheet
