KEL-DPZ — Round Cable Entry Plates
KEL-DPZ Round Entry Plates (M40/M50)
Threaded round membrane plates for high-density routing of standard cables/fibres (1.5–22 mm) in M40/M50 cut-outs. IP66/67/68.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL-DPZ 40/8 (99143741) — M40×1.5, 4×(3.2-6.5) + 4×(5-10.2)
KEL-DPZ 50/8 (99143750) — M50×1.5, 5×(5-10.2) + 3×(7.2-12.5)
KEL-DPZ 50/10 (99143751) — M50×1.5, 7×(3.2-6.5) + 2×(5-10.2) + 1×(16-22.2)
KEL-DPZ 50/12 (99143752) — M50×1.5, 4×(3.2-6.5) + 8×(5-10.2)
KEL-DPZ 50/19 (99143758) — M50×1.5, 19×(3.2-6.5)
KEL-DPZ 50/78 (99143756) — M50×1.5, 76×(1.5-2.6) + 2×(2.5-5)
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | PA frame / elastomer sealing plate |
| Flame Class | UL94-V0 |
| IP Rating | IP66/IP67/IP68 (DIN EN 60529) |
| Operating Temp. | -40 to +90 °C |
| Thread | M40/M50 × 1.5 |
| Mounting Height | 8 mm |

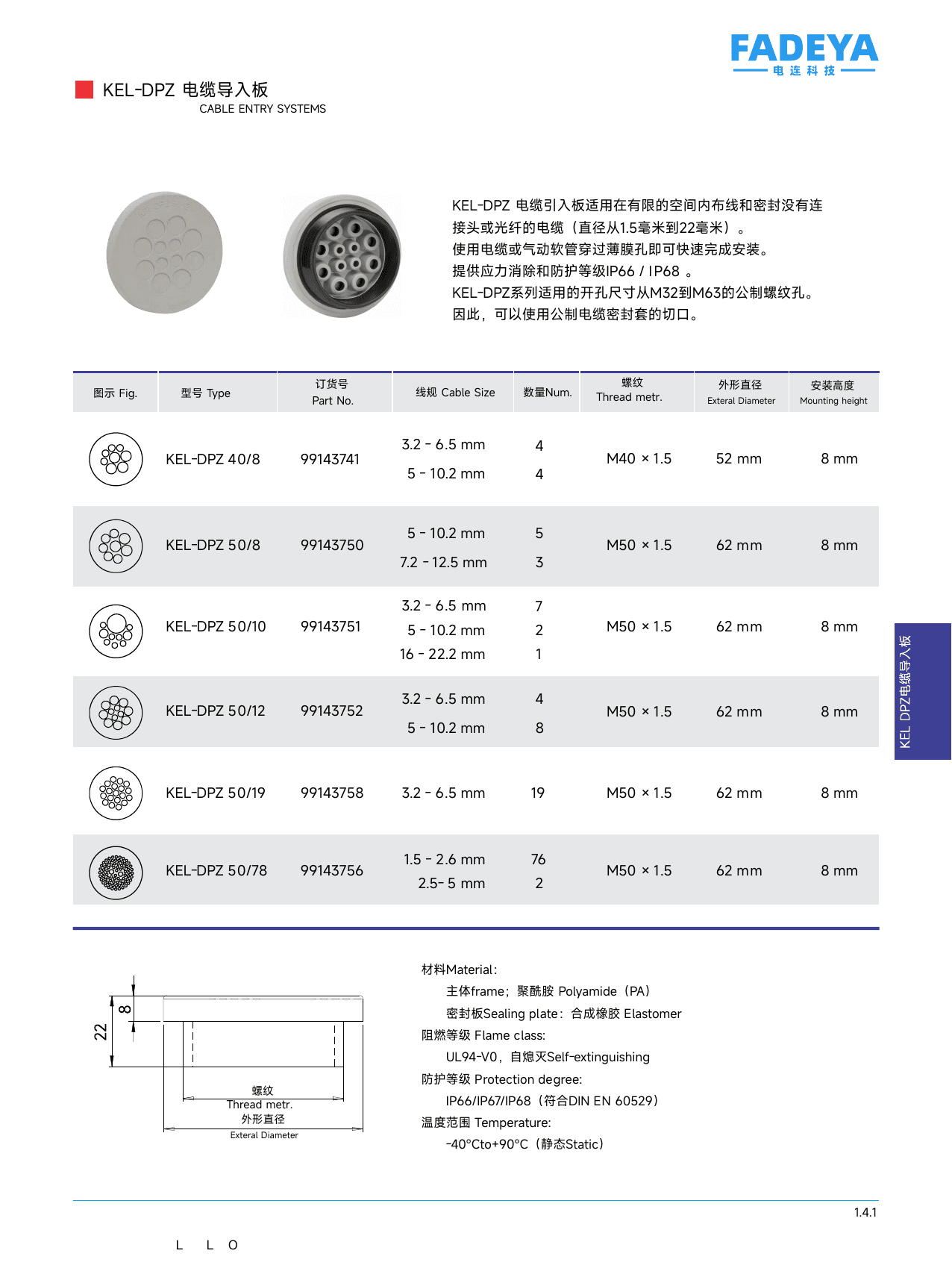

Datasheet
