KEL-DPZ Round Entry Plates (M63)
Large M63 threaded round plates, 9–35 openings, for dense multi-cable routing. IP66/67/68.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL-DPZ 63/9 (99143760) — 9 openings: 1×(3.2-6.5)+3×(5-10.2)+4×(9-16.2)+1×(16-22)
KEL-DPZ 63/13 (99143761) — 13 openings: 4×(3.2-6.5)+4×(5-10.2)+5×(9-16.2)
KEL-DPZ 63/14 (99143762) — 14 openings: 14×(5-10.2)
KEL-DPZ 63/35 (99143763) — 35 openings: 35×(3.2-6.5)
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | PA frame / elastomer sealing plate |
| Flame Class | UL94-V0 |
| IP Rating | IP66/IP67/IP68 (DIN EN 60529) |
| Operating Temp. | -40 to +90 °C |
| Thread | M63 × 1.5 |
| Outer Diameter | 75 mm |
| Mounting Height | 8 mm |

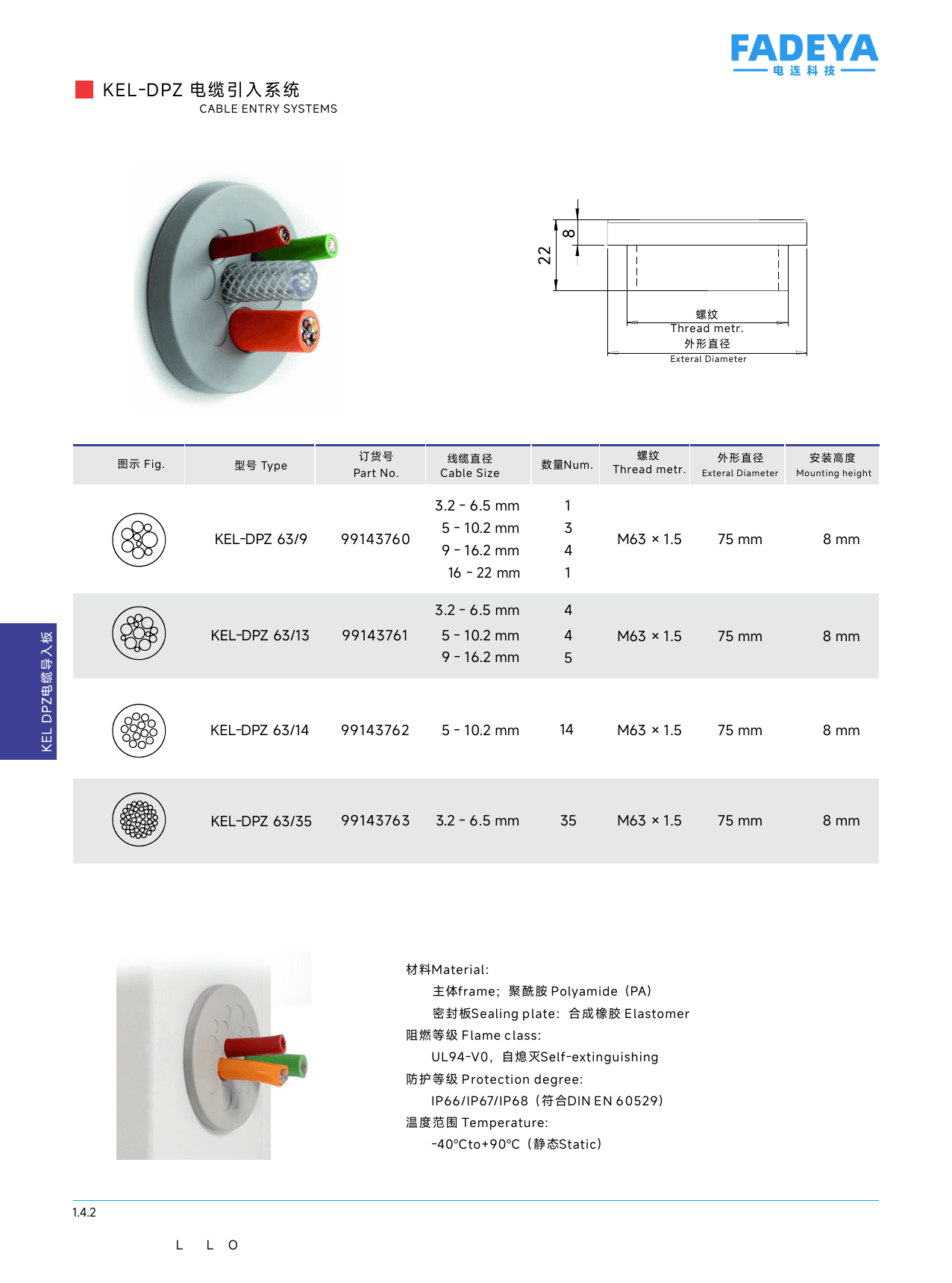

Datasheet
