KT-DPF Multi-Diameter Tower Inserts
Tower-form inserts cut to the cable OD (3–32 mm) for the 20×20 and 40×40 module openings.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KT-DPF-A (099050314) — 3-14 mm
KT-DPF-B (099050418) — 4-18 mm
KT-DPF-C (099051232) — 12-32 mm
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Synthetic rubber (elastomer) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 |
| Operating Temp. | -40 to +90 °C |
| Cable Range | 3 to 32 mm |

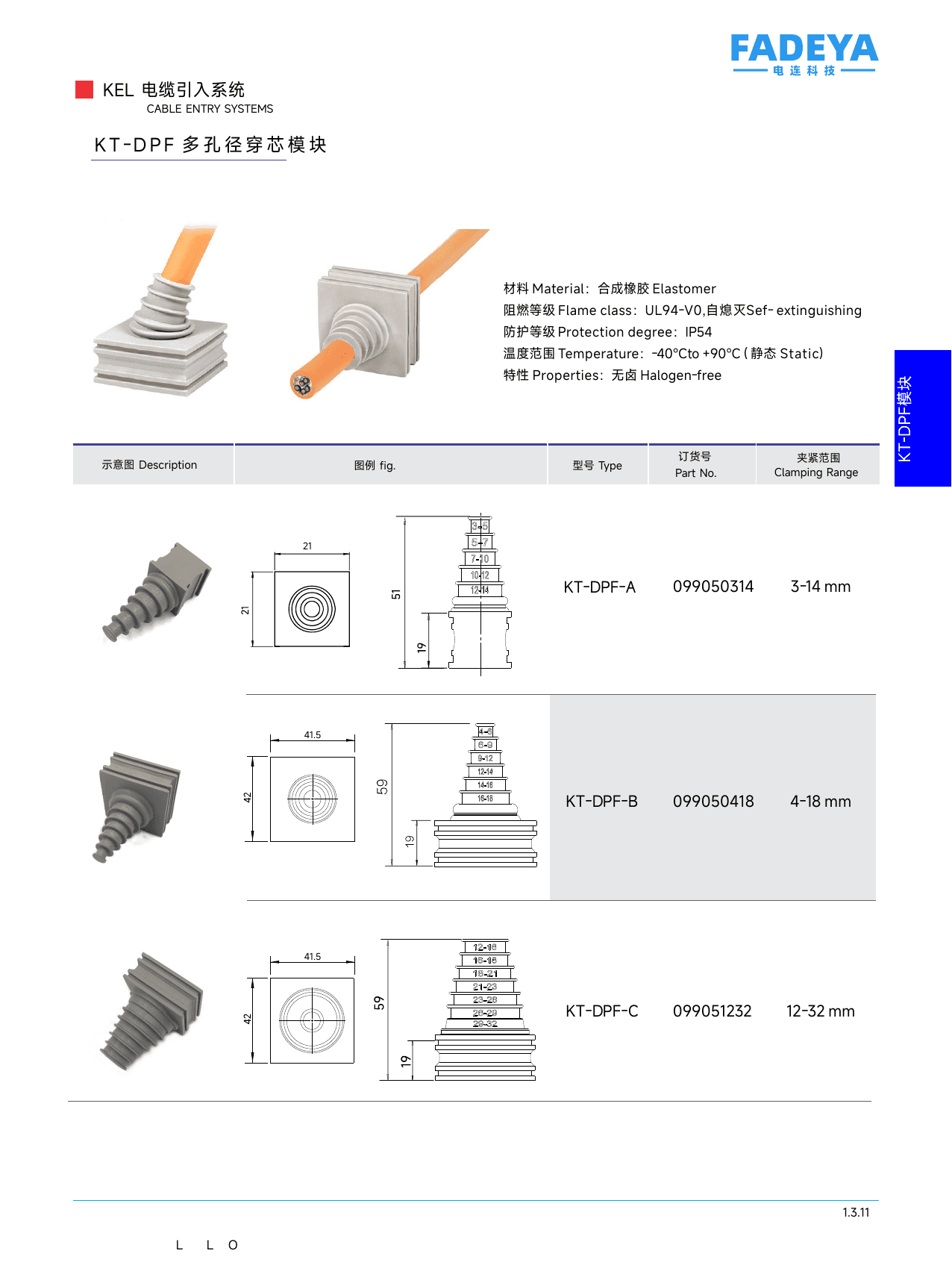

Datasheet
