KEL — Split Cable Entry Frames
KEL 16-2MT Split Entry Frames
High-density KEL-16 frames up to 24 modules: 0/6, 4/5, 8/4, 12/3, 16/2, 20/1, 24/0 layouts.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL 16/6-2MT (099042252) — 0/6
KEL 16/9-2MT (099042256) — 4/5
KEL 16/12-2MT (099042253) — 8/4
KEL 16/15-2MT (099042257) — 12/3
KEL 16/18-2MT (099042254) — 16/2
KEL 16/21-2MT (099042270) — 20/1
KEL 16/24-2MT (099042255) — 24/0
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 (with gasket) |
| Operating Temp. | -40 to +140 °C |
| Cut-Out | 85 × 126.4 mm |

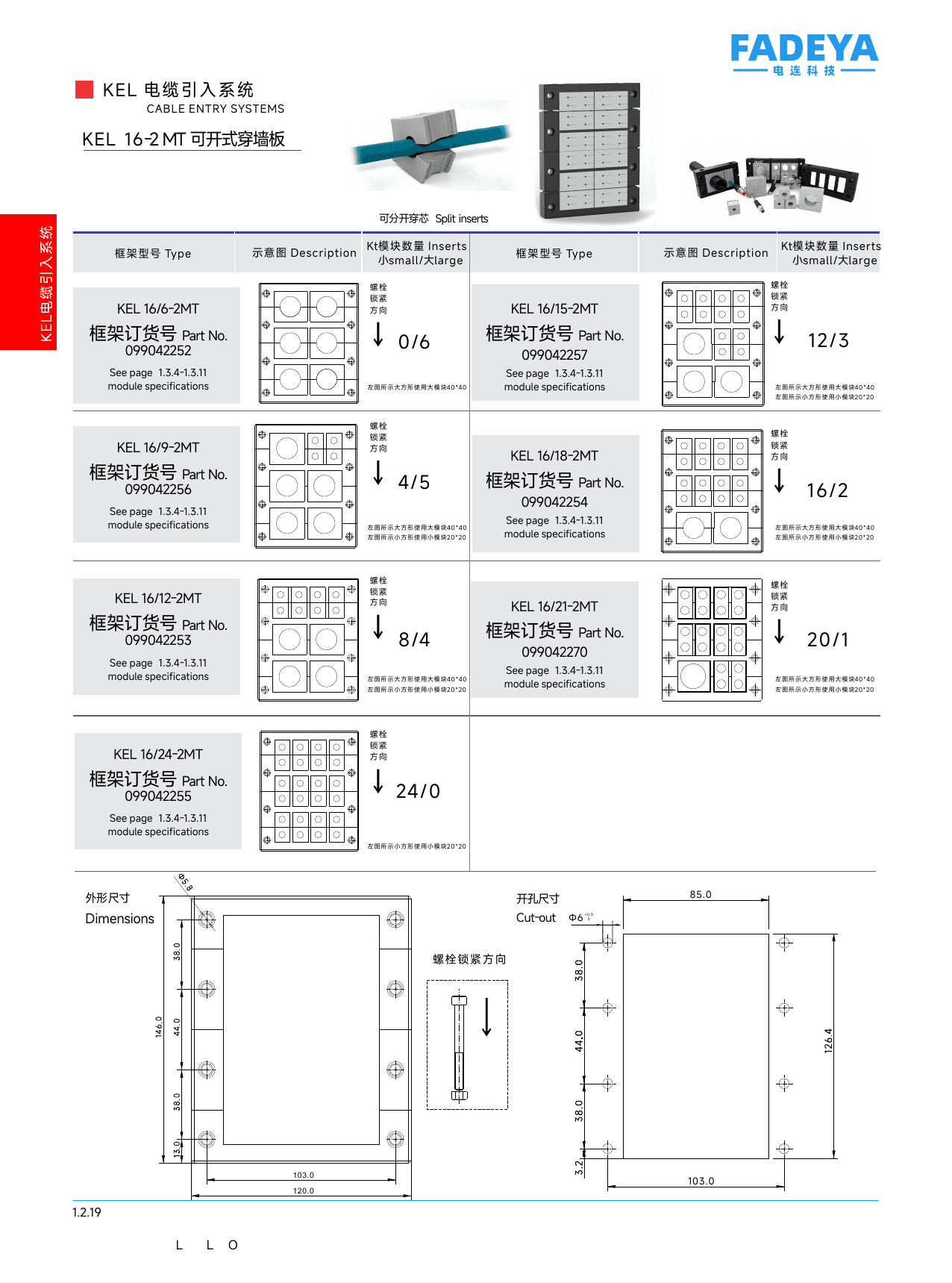

Datasheet
