KEL-BES Brush Cable Entry Frames
Brush-strip entry frames for dusty/powder environments, matching KEL-10/16/24 standard cut-outs. One-piece or detachable (-S). 10 mm height.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KEL-BES-24 (099051515) — one-piece, suits KEL 24
KEL-BES-S 24 (099051615) — detachable, suits KEL 24
KEL-BES-16 (099051510) — one-piece, suits KEL 16
KEL-BES-S 16 (099051610) — detachable, suits KEL 16
KEL-BES-10 (099051505) — one-piece, suits KEL 10
KEL-BES-S 10 (099051605) — detachable, suits KEL 10
KEL-BES-S 6 (099051600) — detachable, suits KEL 6
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Polyamide (PA) |
| Color | Black |
| Height | 10 mm |
| Operating Temp. | -20 to +90 °C |
| Feature | Dust- and foreign-object resistant; visual inspection |
| Mounting | Screw or expansion rivet |

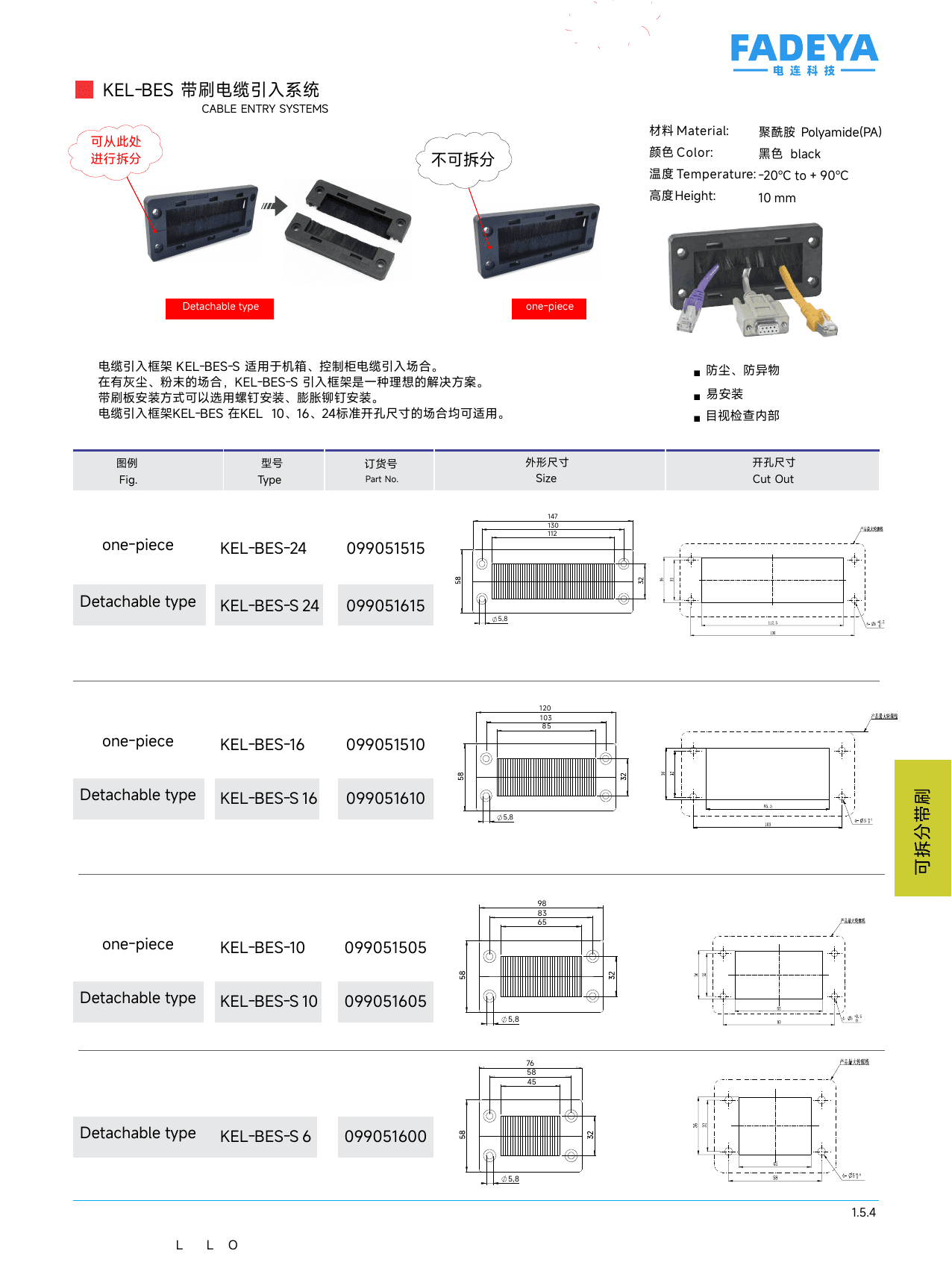

Datasheet
