KT-DT Multi-Hole Inserts
Multi-hole grommet inserts (up to 16 holes per module) for routing many small cables through one opening.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
KT-DT1 (099061500) — 12×1-6.5mm, 2×1-12.2mm
KT-DT2 (099061510) — 16×1-7.1mm
KT-DT3 (099061520) — 4×1-6.5, 3×1-9.5, 3×1-11.3mm
KT-DT4 (099061530) — 9×1-9.5mm
KT-DT5 (099061540) — 4×1-14.5, 1×1-9.5mm
KT-DT7 (099061550) — 4×1-6mm
KT-DT8 (099061560) — 2×1-7mm, 2×1-4mm
Part numbers are enumerated from the official sample book; many frames accept the modular KT/KTP/KTB/CM insert range (see Inserts & Grommets and the KBD/KML module pages). IP ratings depend on correct insert selection and gasket use. All dimensions in mm.
Technical Parameters
| Material | Synthetic rubber (elastomer) |
| Flame Class | UL94-V0 |
| IP Rating | IP54 |
| Operating Temp. | -40 to +90 °C |
| Module Sizes | 41.5×40.5 and 21×21 mm |

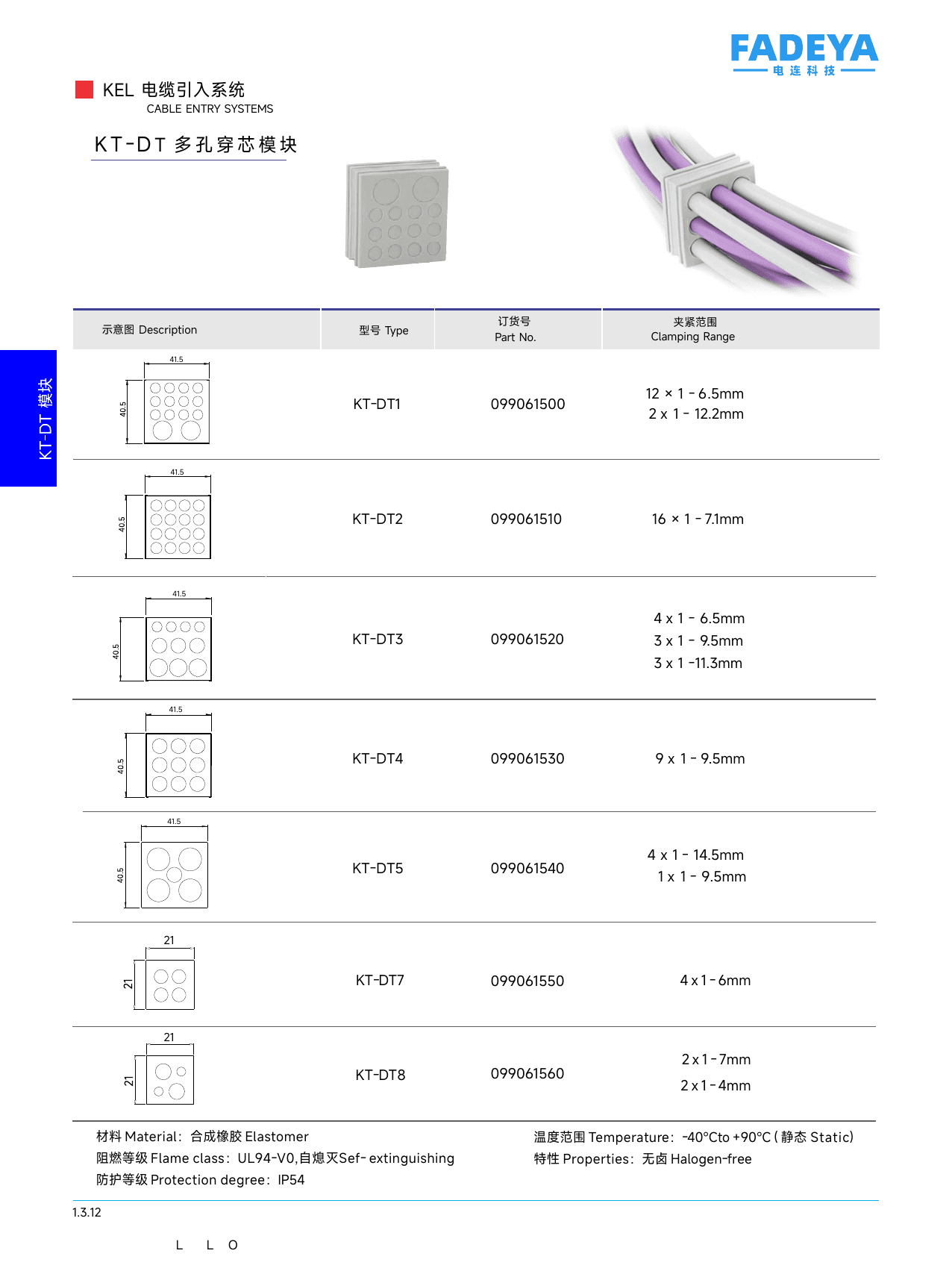

Datasheet
