Brake CableSiemens V90
Siemens V90 Brake & I/O Data Cable

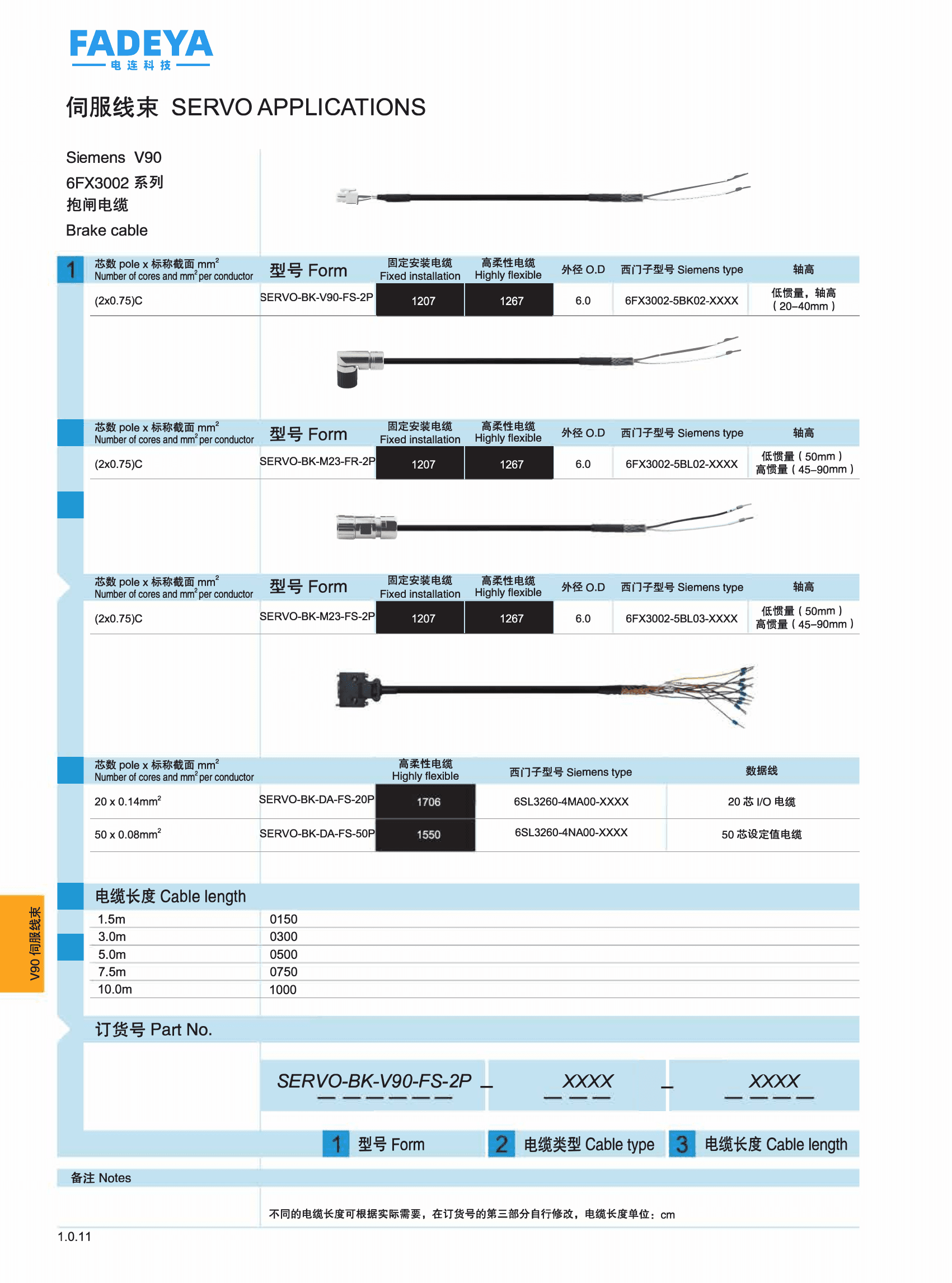

Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
SERVO-BK-V90-FS-2P
SERVO-BK-M23-FR-2P
SERVO-BK-M23-FS-2P
SERVO-BK-DA-FS-20P
SERVO-BK-DA-FS-50P
Order codes are configured in three parts: [Form] - [Cable-type code] - [Length code]. The cable-type code (4 digits) selects conductor cross-section and high-flex vs fixed construction (see each datasheet's Cable-type table). The length code is in centimetres (0150 = 1.5 m, 0300 = 3.0 m, 0500 = 5.0 m, 0750 = 7.5 m, 1000 = 10.0 m) and can be set to any length. 'PW' = screw-lock, 'PWQ' = quick-lock power; 'SG'/'SGQ' = screw/quick-lock signal; 'MS' = straight, 'MR'/'FR' = right-angle. Contact Fadeya for the exact order code for your drive, motor frame and length.
Technical Parameters
| Connector | V90 / M23 brake (2-pole) and DRIVE-CLiQ I/O data connectors |
| Poles | Brake 2-pole · data 20-core / 50-core |
| Siemens Equivalent | 6FX3002-5BK02 / 5BL02 / 5BL03 (brake) · 6SL3260-4MA00 / 4NA00 (I/O & setpoint data) |
| Conductor Options | Brake (2×0.75)C (OD 6.0 mm) · data 20×0.14 mm² / 50×0.08 mm² |
| Design | Bare/tinned stranded copper conductors per IEC 60228 cl.5/cl.6, partially paired, tinned-copper braid screen (≥ 85% coverage) |
| Rated Voltage | Nominal 30 V; test voltage 500 V |
