Spindle Power CableM40
M40 Spindle Power Cable

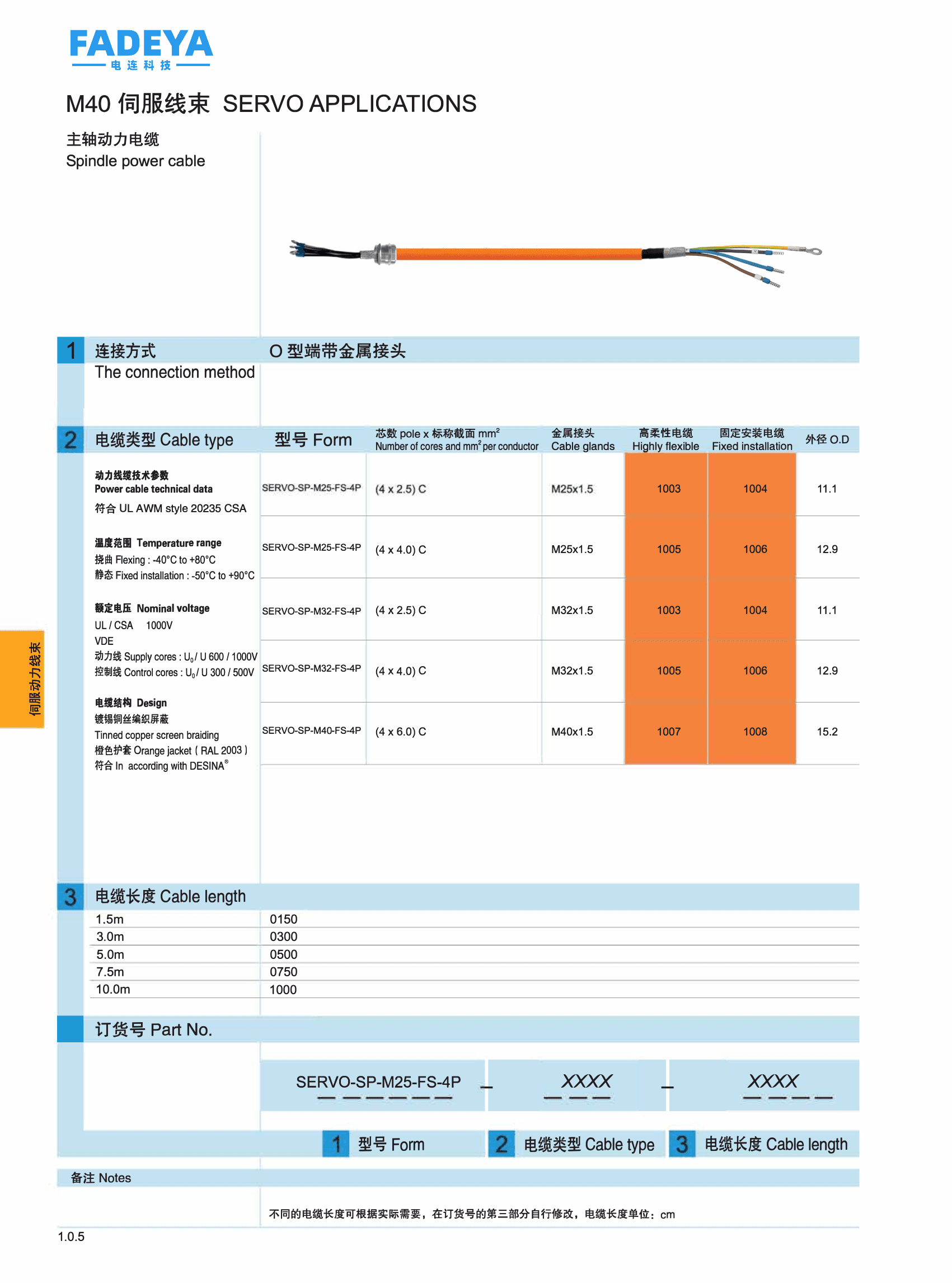

Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
SERVO-SP-M25-FS-4P
SERVO-SP-M32-FS-4P
SERVO-SP-M40-FS-4P
Order codes are configured in three parts: [Form] - [Cable-type code] - [Length code]. The cable-type code (4 digits) selects conductor cross-section and high-flex vs fixed construction (see each datasheet's Cable-type table). The length code is in centimetres (0150 = 1.5 m, 0300 = 3.0 m, 0500 = 5.0 m, 0750 = 7.5 m, 1000 = 10.0 m) and can be set to any length. 'PW' = screw-lock, 'PWQ' = quick-lock power; 'SG'/'SGQ' = screw/quick-lock signal; 'MS' = straight, 'MR'/'FR' = right-angle. Contact Fadeya for the exact order code for your drive, motor frame and length.
Technical Parameters
| Connection | O-type ring terminals with metal cable gland |
| Poles | 4-pole |
| Cable Glands | SP-M25 → M25×1.5 · SP-M32 → M32×1.5 · SP-M40 → M40×1.5 |
| Conductor Options | (4×2.5)C / (4×4.0)C / (4×6.0)C |
| Od Range | 11.1–15.2 mm |
| Standard | UL AWM style 20235, CSA |
| Temperature | Flexing -40°C to +80°C; fixed installation -50°C to +90°C |
| Rated Voltage | UL/CSA 1000 V; VDE supply cores U0/U 600/1000 V, control cores U0/U 300/500 V |
| Design | Tinned-copper braided screen, orange jacket (RAL 2003), per DESINA |
