Servo Power CableSiemens V90
Siemens V90 Power Cable
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
SERVO-PW-V90-FS-4P
SERVO-PW-M23-FR-4P
SERVO-PW-M23-FS-4P
Order codes are configured in three parts: [Form] - [Cable-type code] - [Length code]. The cable-type code (4 digits) selects conductor cross-section and high-flex vs fixed construction (see each datasheet's Cable-type table). The length code is in centimetres (0150 = 1.5 m, 0300 = 3.0 m, 0500 = 5.0 m, 0750 = 7.5 m, 1000 = 10.0 m) and can be set to any length. 'PW' = screw-lock, 'PWQ' = quick-lock power; 'SG'/'SGQ' = screw/quick-lock signal; 'MS' = straight, 'MR'/'FR' = right-angle. Contact Fadeya for the exact order code for your drive, motor frame and length.
Technical Parameters
| Connector | V90 motor connector or M23, straight (FS) / right-angle (FR) |
| Poles | 4-pole |
| Siemens Equivalent | 6FX3002-5CK01 / 5CK31 / 5CK32 / 5CL01 / 5CL02 / 5CL11 / 5CL12 |
| Motor Match | Low-inertia (shaft 20–40 mm / 50 mm) and high-inertia (45–90 mm) |
| Conductor Options | (4×0.75)C / (4×1.5)C / (4×2.5)C |
| Od Range | 7.0–11.1 mm |
| Standard | UL AWM style 20235, CSA |
| Temperature | Flexing -40°C to +80°C; fixed installation -50°C to +90°C |
| Rated Voltage | UL/CSA 1000 V; VDE supply cores U0/U 600/1000 V, control cores U0/U 300/500 V |
| Design | Tinned-copper braided screen, orange jacket (RAL 2003), per DESINA |

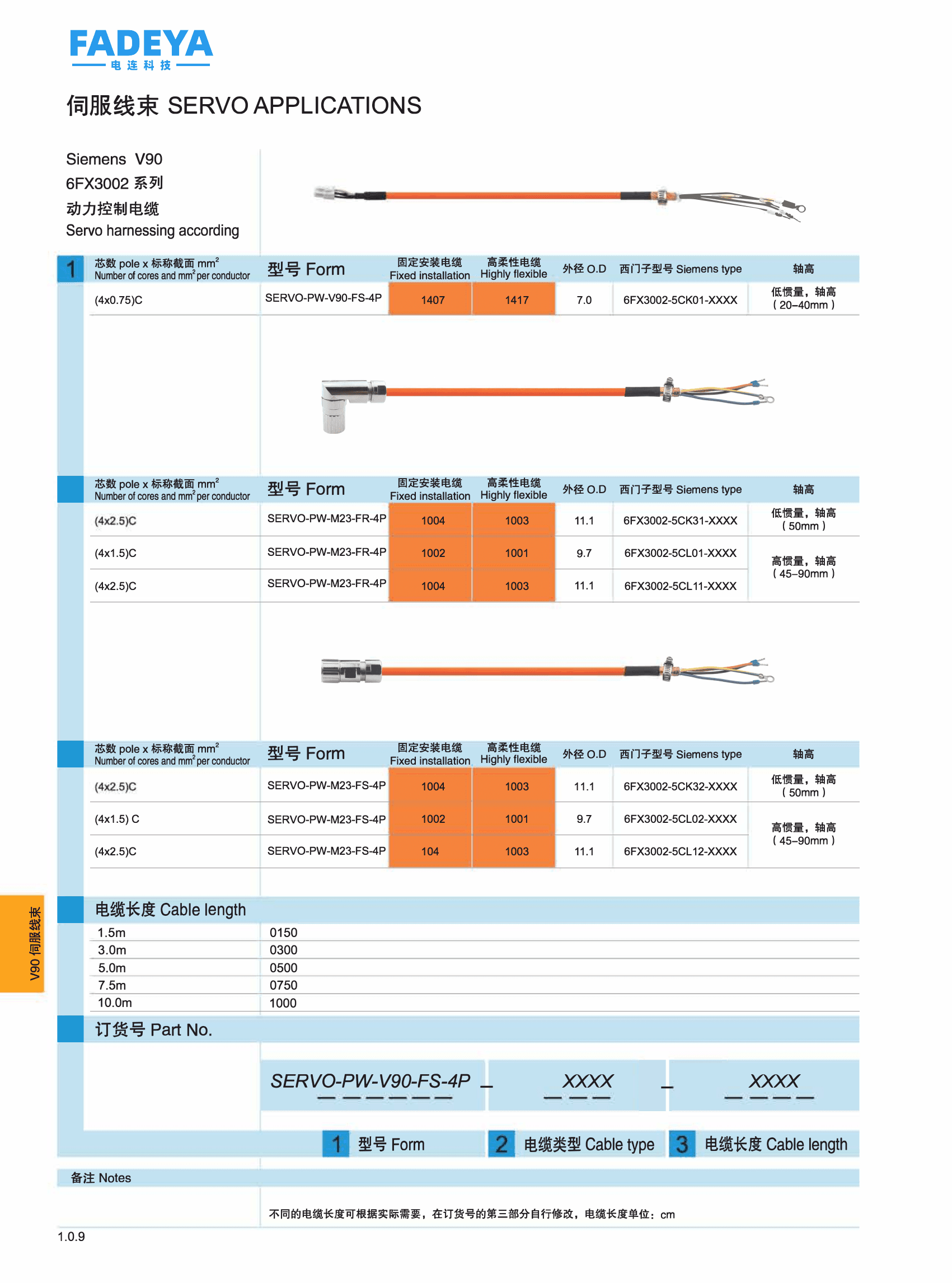

Datasheet
