Servo Signal CableM23
M23 Servo Signal Cable (single-ended D-SUB)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
SERVO-SG-M23-MS-9P
SERVO-SG-M23-MS-15P
SERVO-SG-M23-MS-25P
SERVO-SG-M23-MR-9P
SERVO-SG-M23-MR-15P
SERVO-SG-M23-MR-25P
Order codes are configured in three parts: [Form] - [Cable-type code] - [Length code]. The cable-type code (4 digits) selects conductor cross-section and high-flex vs fixed construction (see each datasheet's Cable-type table). The length code is in centimetres (0150 = 1.5 m, 0300 = 3.0 m, 0500 = 5.0 m, 0750 = 7.5 m, 1000 = 10.0 m) and can be set to any length. 'PW' = screw-lock, 'PWQ' = quick-lock power; 'SG'/'SGQ' = screw/quick-lock signal; 'MS' = straight, 'MR'/'FR' = right-angle. Contact Fadeya for the exact order code for your drive, motor frame and length.
Technical Parameters
| Connector | D-SUB to flying leads; straight (MS / 180°) or right-angle (MR / 45°) |
| Poles | D-SUB 9 / 15 / 25 |
| Conductor Options | 13 configs, (2×0.38+3×2×0.22)C to (10×0.14+2×0.5)C |
| Od Range | 6.4–10.2 mm |
| Design | Bare/tinned stranded copper conductors per IEC 60228 cl.5/cl.6, partially paired, tinned-copper braid screen (≥ 85% coverage) |
| Rated Voltage | Nominal 30 V; test voltage 500 V |

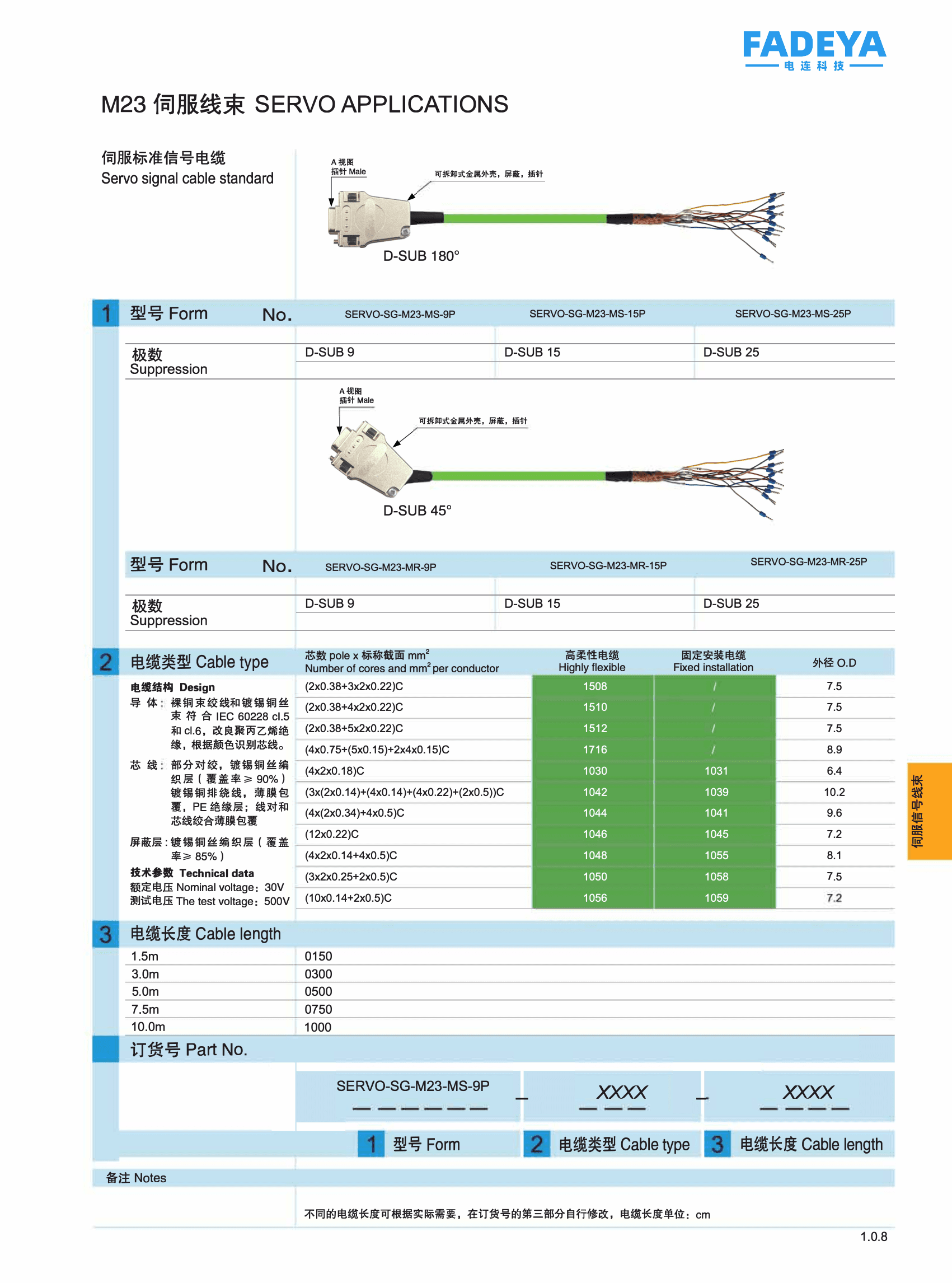

Datasheet
