Servo Signal CableSiemens S120
SINAMICS S120 DRIVE-CLiQ Signal Cable
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
SERVO-S120-RJ45/2-MS-4P-RJ45/2-MS
SERVO-S120-RJ45/2-MS-4P-RJ45/7-MS
SERVO-S120-RJ45/7-MS-4P-RJ45/7-MS
SERVO-S120-RJ45/2-MS-4P-M12-FS
Order codes are configured in three parts: [Form] - [Cable-type code] - [Length code]. The cable-type code (4 digits) selects conductor cross-section and high-flex vs fixed construction (see each datasheet's Cable-type table). The length code is in centimetres (0150 = 1.5 m, 0300 = 3.0 m, 0500 = 5.0 m, 0750 = 7.5 m, 1000 = 10.0 m) and can be set to any length. 'PW' = screw-lock, 'PWQ' = quick-lock power; 'SG'/'SGQ' = screw/quick-lock signal; 'MS' = straight, 'MR'/'FR' = right-angle. Contact Fadeya for the exact order code for your drive, motor frame and length.
Technical Parameters
| Connector | Metal-shielded RJ45 / M12 (DRIVE-CLiQ) |
| Poles | 4 (Ethernet) + 2 (Power) |
| Ip Options | IP20/IP20 · IP20/IP67 · IP67/IP67 · IP20-RJ45/IP67-M12 |
| Siemens Equivalent | 6FX5002 / 6FX8002 (DRIVE-CLiQ) |
| Application | Siemens Simodrive |
| Jacket | PVC (type 1052) or PUR (type 1032) |
| Od | 7 mm |
| Connectors Ordered Separately | IP20 SERVO-S120-RJ45/2 · IP67 SERVO-S120-RJ45/7 |

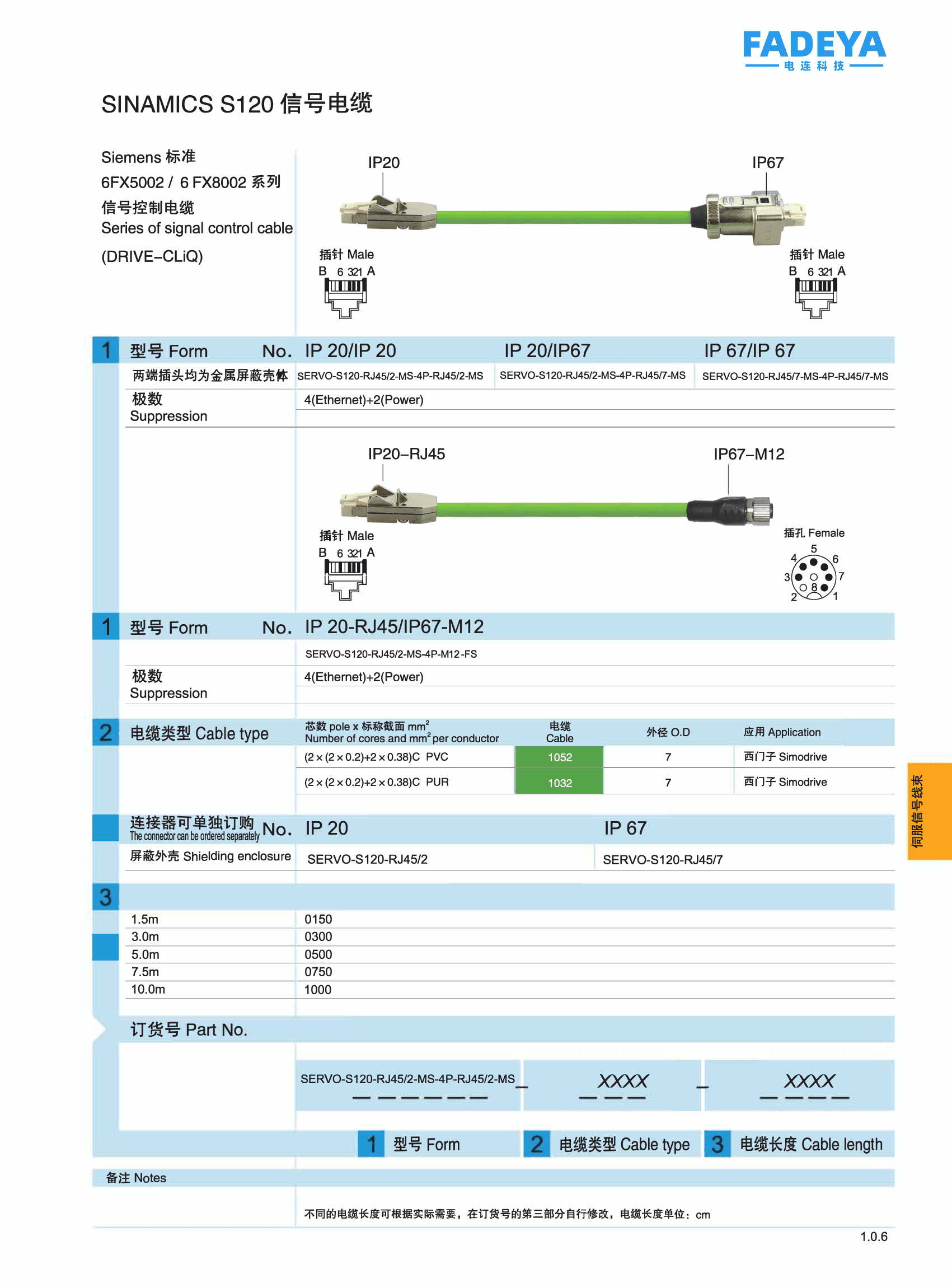

Datasheet
