Encoder CableSiemens V90
Siemens V90 Encoder Cable
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
SERVO-EC-DA-MS-10P-DA-FS
SERVO-EC-DB-MS-10P-DA-FS
SERVO-EC-M23-FS-10P-DA-FS
SERVO-EC-M23-FR-10P-DA-FS
SERVO-EC2-M23-FR-10P-DA-FS
Order codes are configured in three parts: [Form] - [Cable-type code] - [Length code]. The cable-type code (4 digits) selects conductor cross-section and high-flex vs fixed construction (see each datasheet's Cable-type table). The length code is in centimetres (0150 = 1.5 m, 0300 = 3.0 m, 0500 = 5.0 m, 0750 = 7.5 m, 1000 = 10.0 m) and can be set to any length. 'PW' = screw-lock, 'PWQ' = quick-lock power; 'SG'/'SGQ' = screw/quick-lock signal; 'MS' = straight, 'MR'/'FR' = right-angle. Contact Fadeya for the exact order code for your drive, motor frame and length.
Technical Parameters
| Connector | V90 / M23 to drive, straight (FS) / right-angle (FR) |
| Poles | 10-pole |
| Encoder Type | Incremental (CT) and absolute (DB) |
| Siemens Equivalent | 6FX3002-2CT20 / 2DB20 / 2CT12 / 2DB12 / 2CT10 / 2DB10 |
| Motor Match | Low-inertia (20–40 mm / 50 mm) and high-inertia (45–90 mm) |
| Conductor Options | (3×(2×0.22)+2×2×0.25)C |
| Od | 7.0 mm |
| Design | Bare/tinned stranded copper conductors per IEC 60228 cl.5/cl.6, partially paired, tinned-copper braid screen (≥ 85% coverage) |
| Rated Voltage | Nominal 30 V; test voltage 500 V |

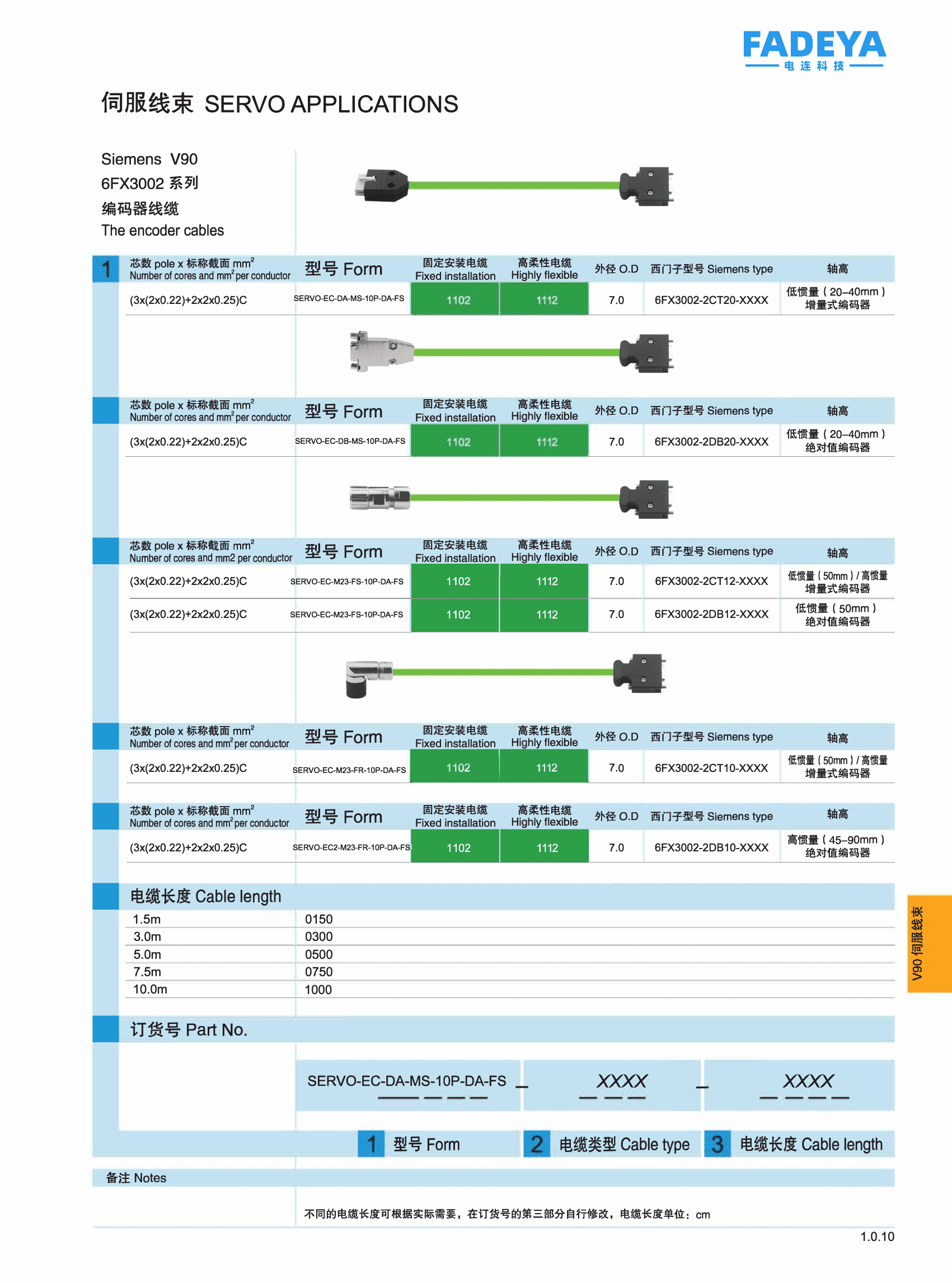

Datasheet
