MIL-C-5015
Technical Parameters
Contact Fadeya to configure the exact order number for your application.
Download the complete PDF catalogue for full specifications and ordering details.

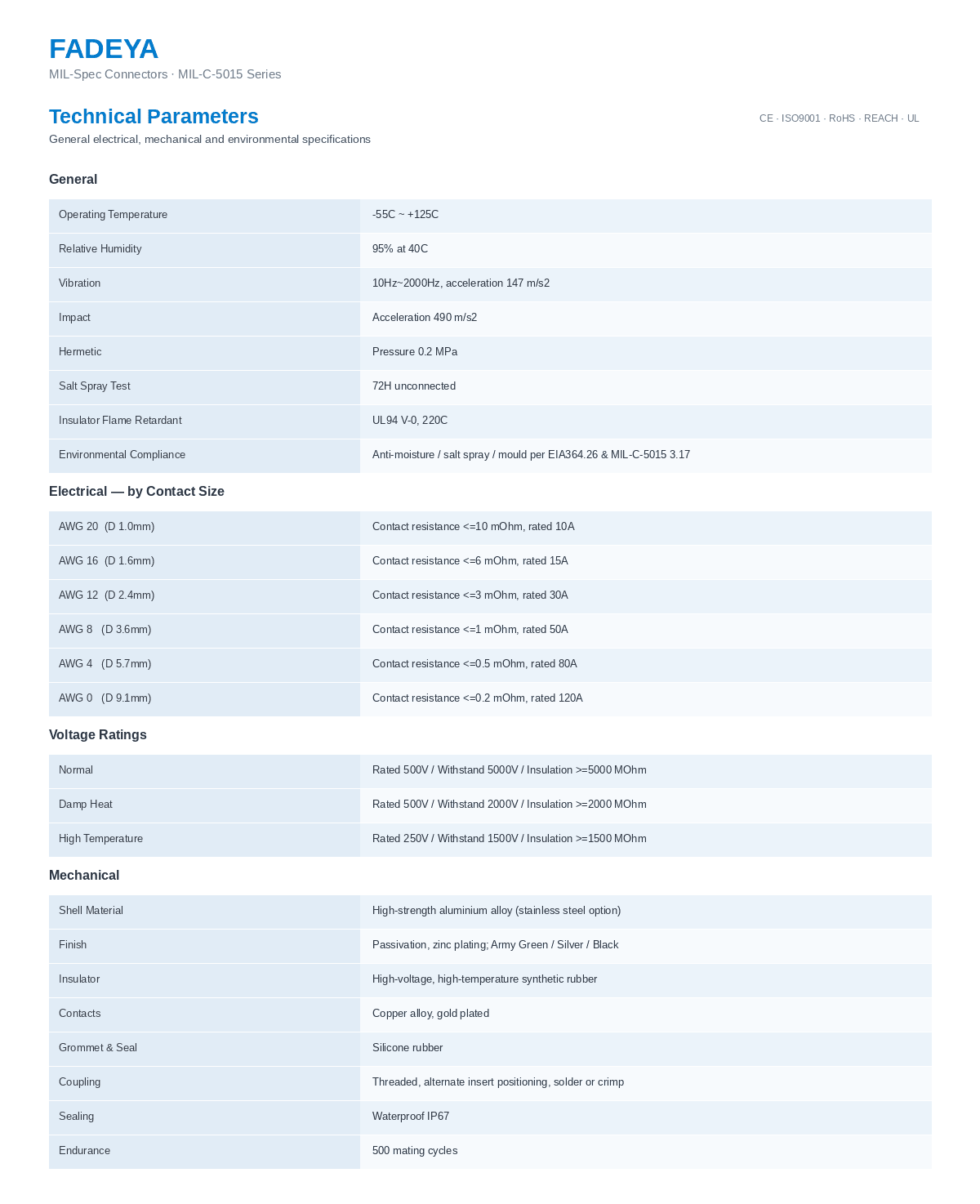

Technical Parameters
ZoomTechnical Parameters
| Operating Temperature | -55°C ~ +125°C |
| Rated Voltage | 500V (normal) |
| Withstand Voltage | 5000V (normal) |
| Current Range | 10A (AWG20) to 120A (AWG0) |
| Sealing | IP67, 0.2 MPa hermetic |
| Endurance | 500 mating cycles |
| Shell Material | High-strength aluminium alloy |
| Contacts | Gold-plated copper alloy |
