7/8 DeviceNet Connectors, 5-Pin
5-pin 7/8" DeviceNet bus connectors, male & female, straight & right-angle.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
7/8-M05S
7/8-M05A
7/8-F05S
7/8-F05A
Cable length is customizable; standard pre-molded length 2.0 m. Jackets: PUR (black, BK) / PVC (yellow, YW). Field connectors & flanges/boxes are rated 600 V / 8 A; pre-molded cordsets are rated 300 V. Naming: 7/8-M/F + pins(03/04/05) + S(straight)/A(angle); flanges FLF-7/8-...; T-splitters 7/8T-...; boxes 7/8-4x/8x{pins}P.
Technical Parameters
| Rated Voltage | 300 V AC/DC |
| Cross Section | 5×1.5 mm² |
| Operating Temp. | -25 °C ... +80 °C |
| Bus Protocol | DeviceNet (5-pin) |
| IP Rating | IP65 |

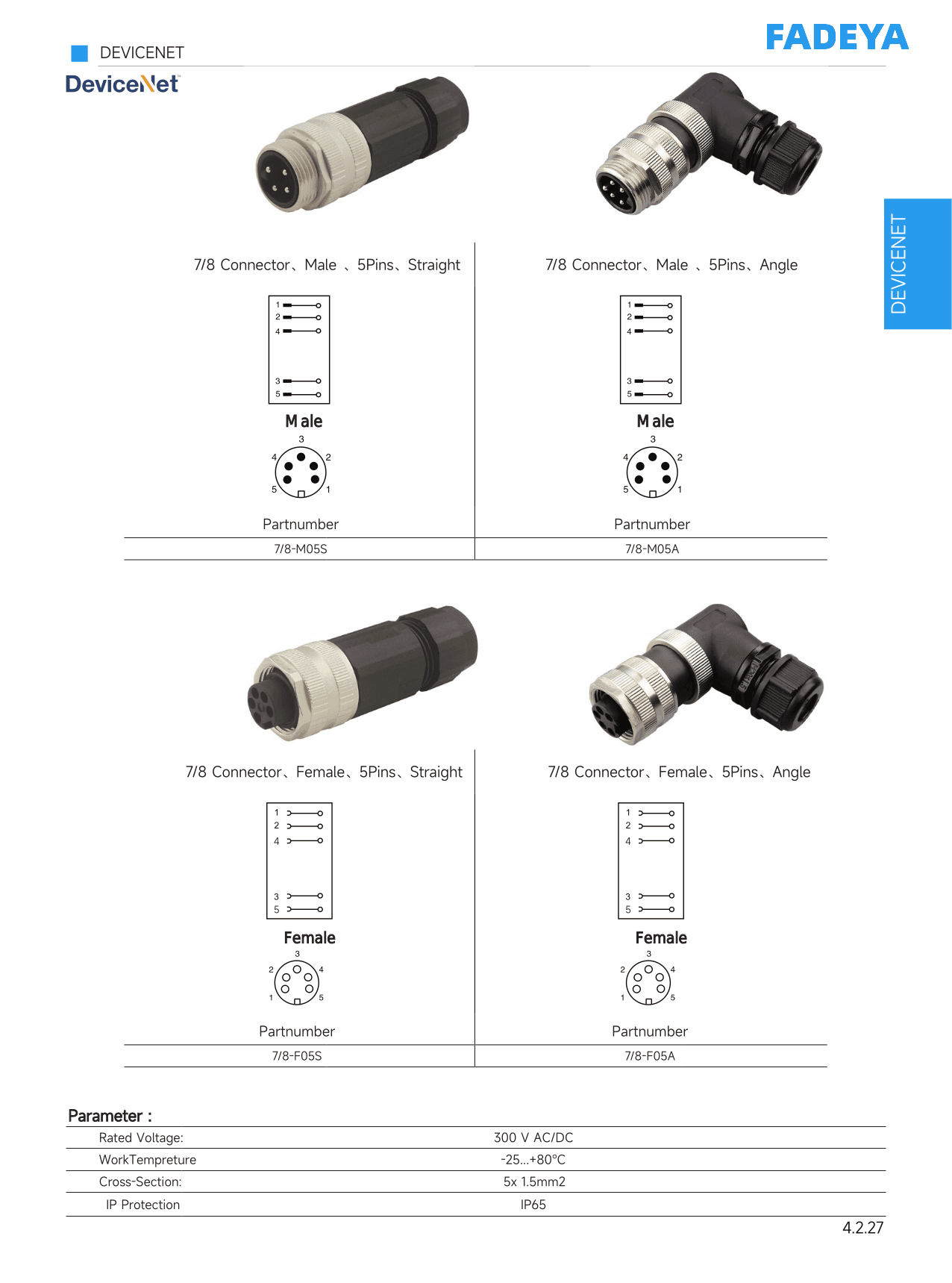

Datasheet
