Bus Terminators (7/8 DeviceNet & M12 CAN)
Termination-resistor plugs: 7/8" DeviceNet 120 Ω (male & female) and M12 B-code CAN terminators.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
7/8-MS-RES-DN
7/8-FS-RES-DN
M12B-M05S-RES-CAN
M12B-F05S-RES-CAN
Cable length is customizable; standard pre-molded length 2.0 m. Jackets: PUR (black, BK) / PVC (yellow, YW). Field connectors & flanges/boxes are rated 600 V / 8 A; pre-molded cordsets are rated 300 V. Naming: 7/8-M/F + pins(03/04/05) + S(straight)/A(angle); flanges FLF-7/8-...; T-splitters 7/8T-...; boxes 7/8-4x/8x{pins}P.
Technical Parameters
| Function | Bus termination resistor |
| IP Rating | IP67 (EN 60529) |
| Note | 7/8 DeviceNet 120 Ω; M12 B-code CAN terminator |

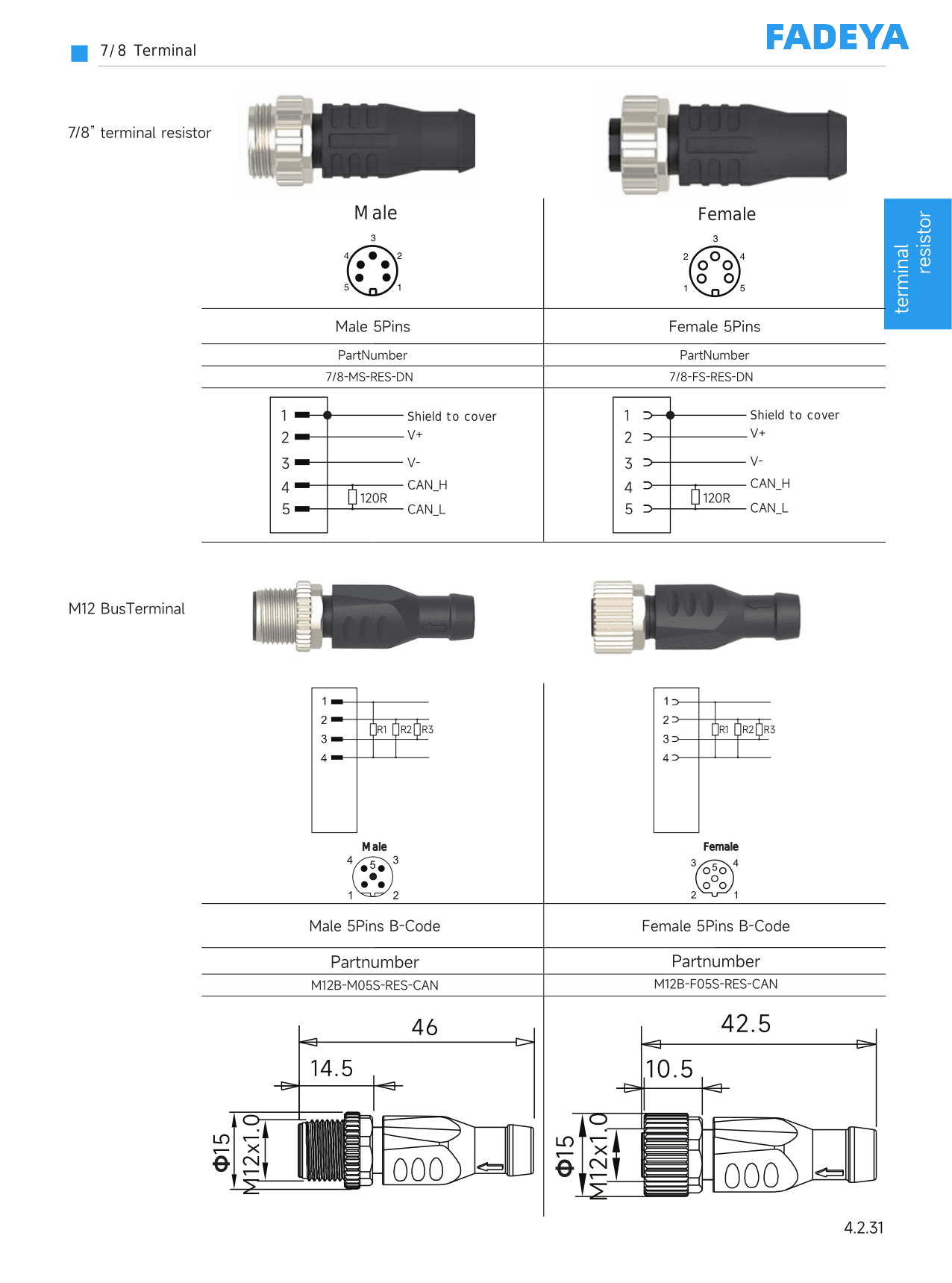

Datasheet
