Single-Ended CordsetsA-Coded3 · 4 pin
Female Single-Ended Cordsets with LED
PNP-LED female cordsets for at-a-glance switching status, straight and right-angle.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M8-F03SLED-2.0PVC/GR
M8-F03SLED-5.0PVC/GR
M8-F03SLED-2.0PUR/GR
M8-F03SLED-5.0PUR/GR
M8-F03SLED-2.0HF/GR
M8-F03SLED-5.0HF/GR
M8-F03SLED-2.0AW/GR
M8-F04SLED-2.0PVC/GR
M8-F04SLED-5.0PVC/GR
M8-F04SLED-2.0PUR/GR
M8-F04SLED-5.0PUR/GR
M8-F04SLED-2.0HF/GR
Cable length is customizable (unit: cm); standard stock lengths 2 m / 5 m. Jackets: PVC, PUR, HF (High-Flex), AW (Anti-Weld). Colors: GR/GY Gray, BK Black, OG/OR Orange, YE Yellow. All ratings per page datasheet.
Technical Parameters
| Rated Voltage | 60 V (3-pin) / 30 V (4-pin) |
| Rated Current | 4 A max. |
| Cross Section | 0.25 mm² (AWG24) |
| Cable Connection | Pre-molded (overmolded) |
| Locking | Metal knurled nut |
| IP Rating | IP67 |
| Operating Temp. | -25 °C ... +85 °C |
| Jacket | PVC / PUR / High-Flex / Anti-Weld |

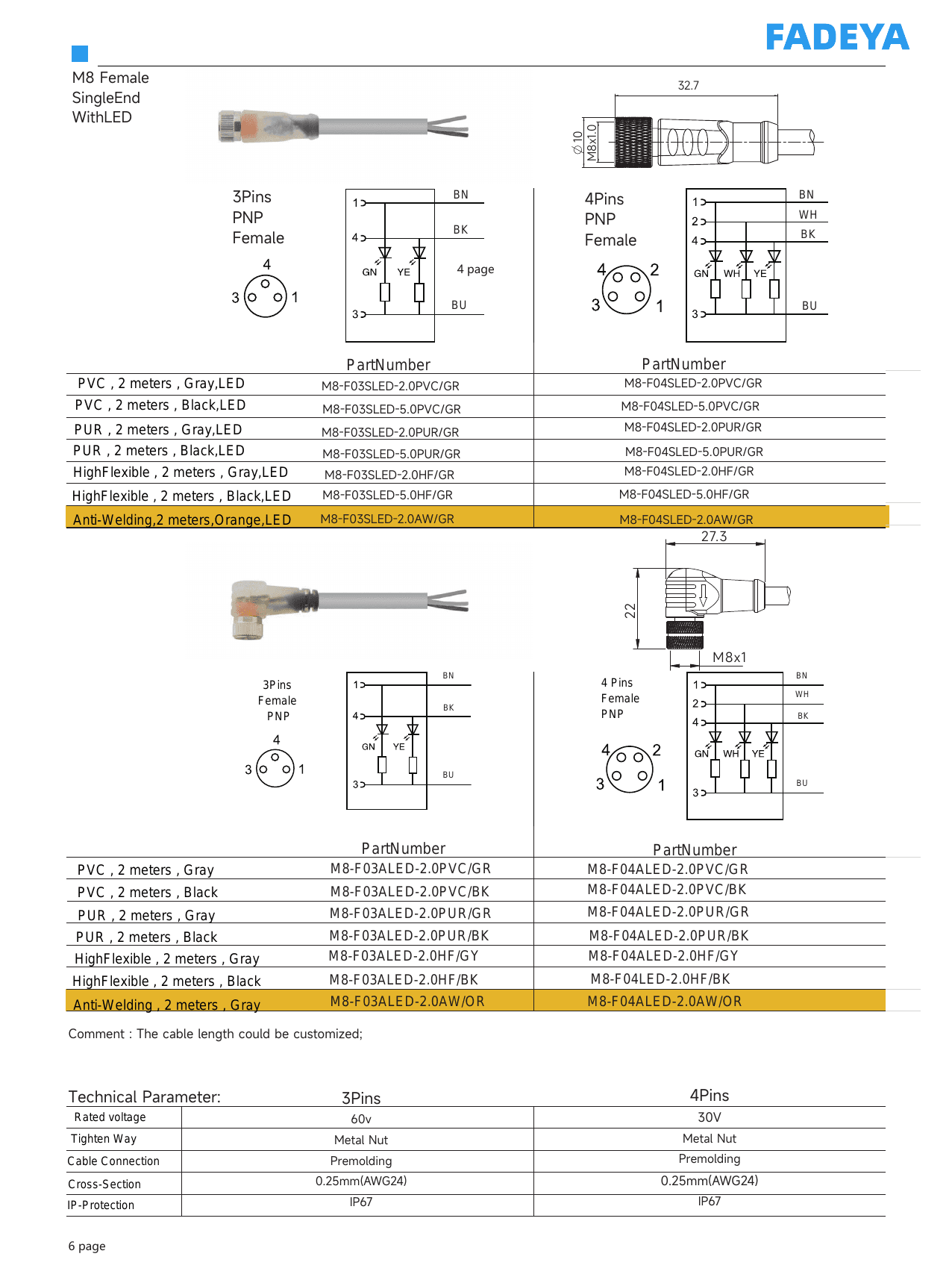

Datasheet
