M8-to-M12 CordsetsA-Coded3 · 4 pin
M8-to-M12 Double-Ended Cordsets
M8 male device side to M12 female controller side, straight and right-angle M12.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M8-M03S/M12-F03S-2.0PVC/GR
M8-M03S/M12-F03S-2.0PVC/BK
M8-M03S/M12-F03S-2.0PUR/GR
M8-M03S/M12-F03S-2.0PUR/BK
M8-M03S/M12-F03S-2.0HF/GR
M8-M03S/M12-F03S-2.0HF/BK
M8-M03S/M12-F03S-2.0AW/OR
M8-M04S/M12-F04S-2.0PVC/GR
M8-M04S/M12-F04S-2.0PVC/BK
M8-M04S/M12-F04S-2.0PUR/GR
M8-M04S/M12-F04S-2.0PUR/BK
M8-M04S/M12-F04S-2.0HF/GR
Cable length is customizable (unit: cm); standard stock lengths 2 m / 5 m. Jackets: PVC, PUR, HF (High-Flex), AW (Anti-Weld). Colors: GR/GY Gray, BK Black, OG/OR Orange, YE Yellow. All ratings per page datasheet.
Technical Parameters
| Rated Voltage | 60 V (3-pin) / 30 V (4-pin) |
| Rated Current | 4 A max. |
| Cross Section | 0.25 mm² (AWG24) |
| Cable Connection | Pre-molded (overmolded) |
| Locking | Metal knurled nut |
| IP Rating | IP67 |
| Operating Temp. | -25 °C ... +85 °C |
| Jacket | PVC / PUR / High-Flex / Anti-Weld |

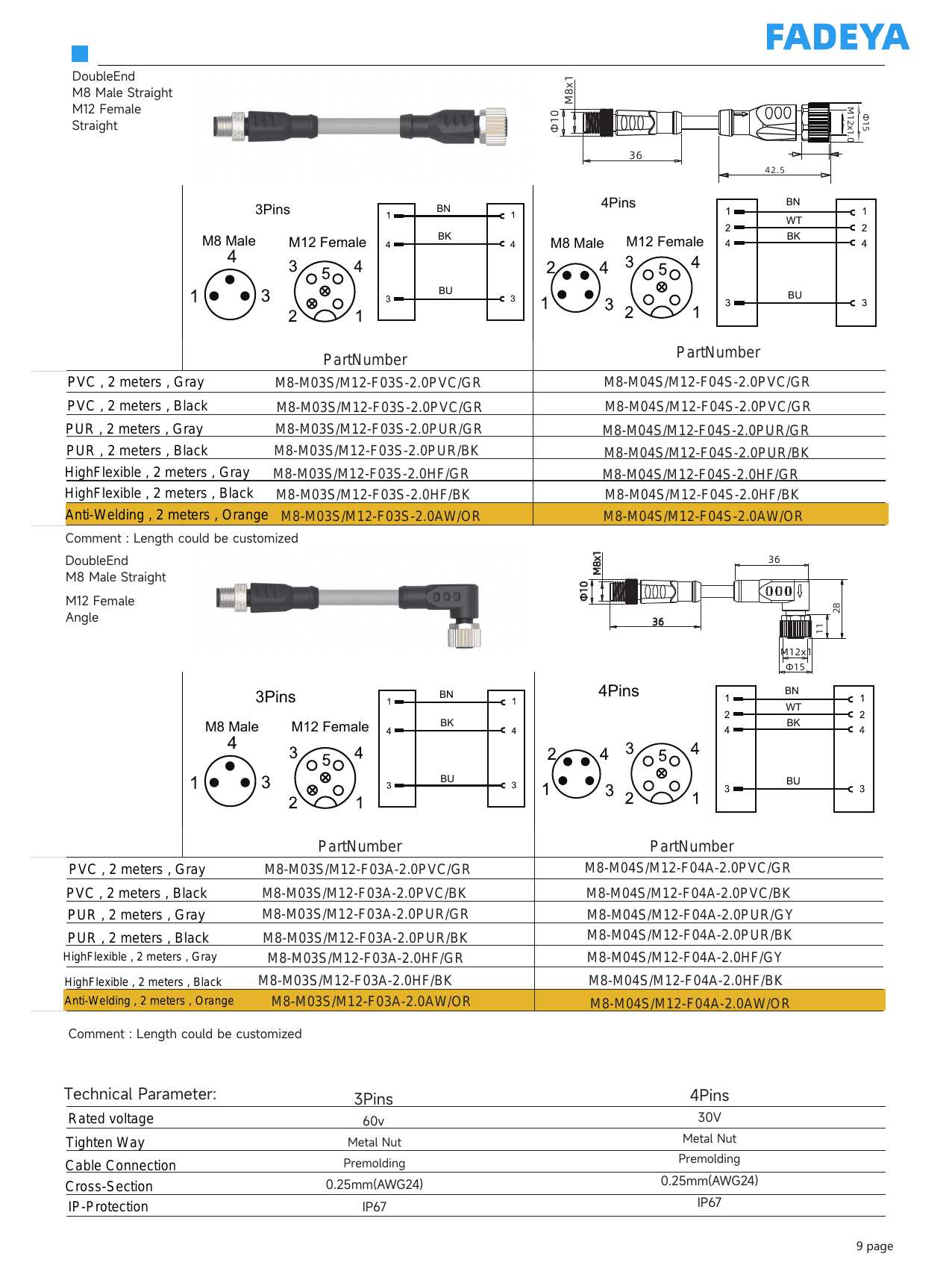

Datasheet
