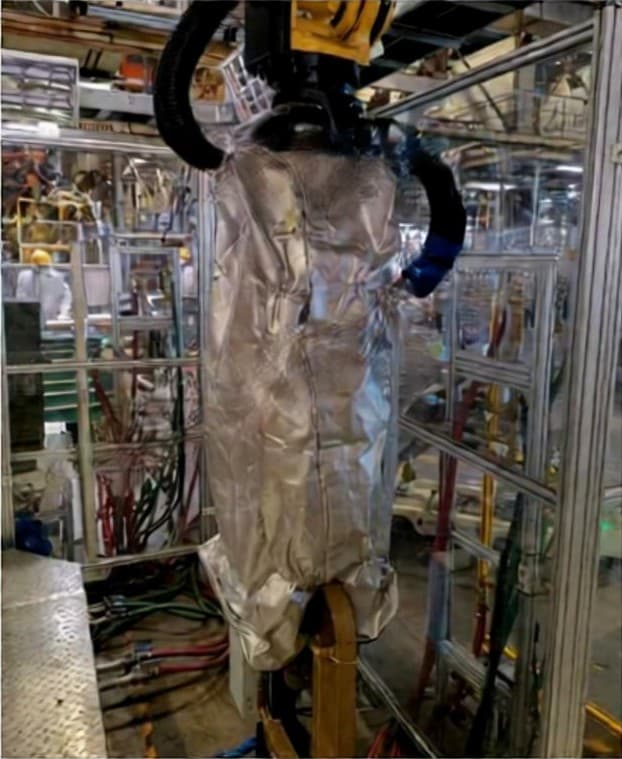

Robot Welding-Gun Protective Shield
Download the complete PDF catalogue for full specifications and ordering details.
ZoomProduct Introduction
The robot welding-gun protective shield prevents the welding-gun body and cables from being damaged by high-temperature welding spatter. It offers excellent flame retardancy, spatter resistance, high-temperature insulation and wear resistance, and can be applied to various welding industries such as automotive manufacturing and shipbuilding.
| Material | Kevlar Composite Fabric + Flame-Retardant Rubber Sheet |
Customized Product
Robot protection covers are customized products. Providing the robot model, cable routing positions and front/rear/left/right site photos is recommended.
Features & Applications
| Fabric Performance | Design Detail | Protection Type | Application Industry |
|---|---|---|---|
| Tear strength: warp 1900N / weft 1700N | Ceramic-cloth technique adopted; movable three-layer structure enhances performance | Molten-metal splash | Automotive manufacturing |
| Flame-retardant rating: Class A | Anti-penetration design enhances flame retardancy | Heat radiation | Chemical industry |
| Peel strength: 2.6 MPa | Anti-penetration design enhances flame retardancy | High-temperature splash | Casting industry |
| Wear strength: 400 N/m | Add rubber sheet in areas prone to spatter, or adopt a four-layer design | Welding slag | Steelmaking industry |

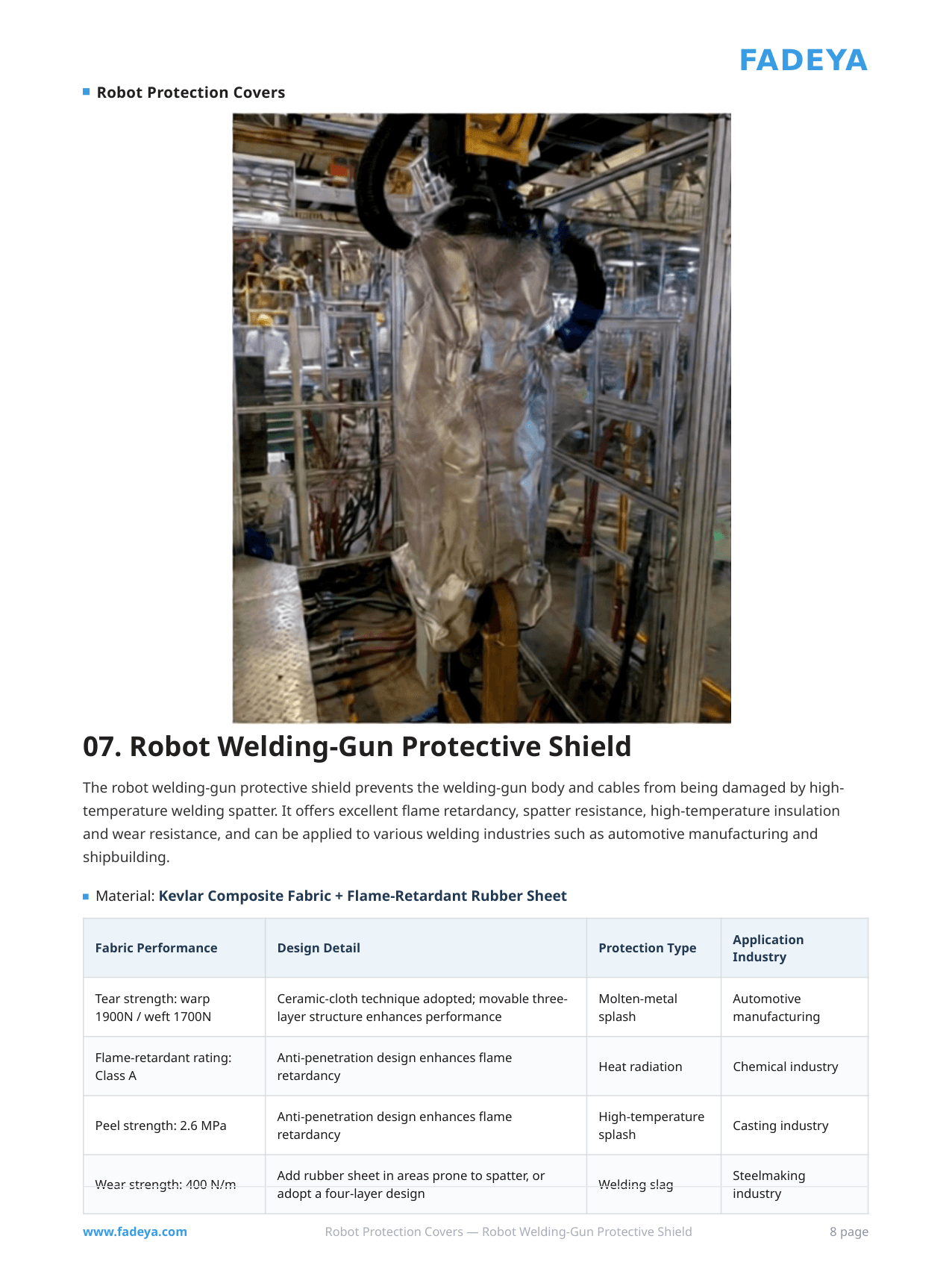

Datasheet
