Inductive Proximity — Standard DCM30Standard DC 3-wire
M30 Factor 1 Inductive Proximity Sensor
Part Numbers
BI15-M30-AP6X-H131
BI15-M30-RP6X-H131
BI15-M30-AN6X-H131
BI15-M30-RN6X-H131
NI30-M30-AP6X-H131
NI30-M30-RP6X-H131
NI30-M30-AN6X-H131
NI30-M30-RN6X-H131
Technical Parameters
| Rated Distance | 15 mm (flush) / 30 mm (non-flush) |
| Installation Distance | 0–12 mm (flush) / 0–24 mm (non-flush) |
| Housing Length | 57.2 mm, M30×1.5 thread |
| Tightening Torque | 50 Nm |
| Supply Voltage | 10–30 V DC (3-wire) |
| Switching Frequency | 1.5 kHz |
| Output Method | NPN / PNP, NO / NC |
| Repeatability | ≤2% of rated distance |
| Hysteresis | 3–10% of rated distance |
| Working Temperature | -30°C to +80°C |
| IP Rating | IP67 |
| Connection Method | M12 connector, 3-pin |
| Indicator | Yellow LED |
| Shell Material | Nickel-plated brass (coating >25 µm) |
| Sensing Face | PBT plastic |
| Protection | Reverse polarity / output overload / short-circuit protection |
| Metal Detection | All metals, attenuation factor = 1 (Fe, stainless steel, Cu, Al) |

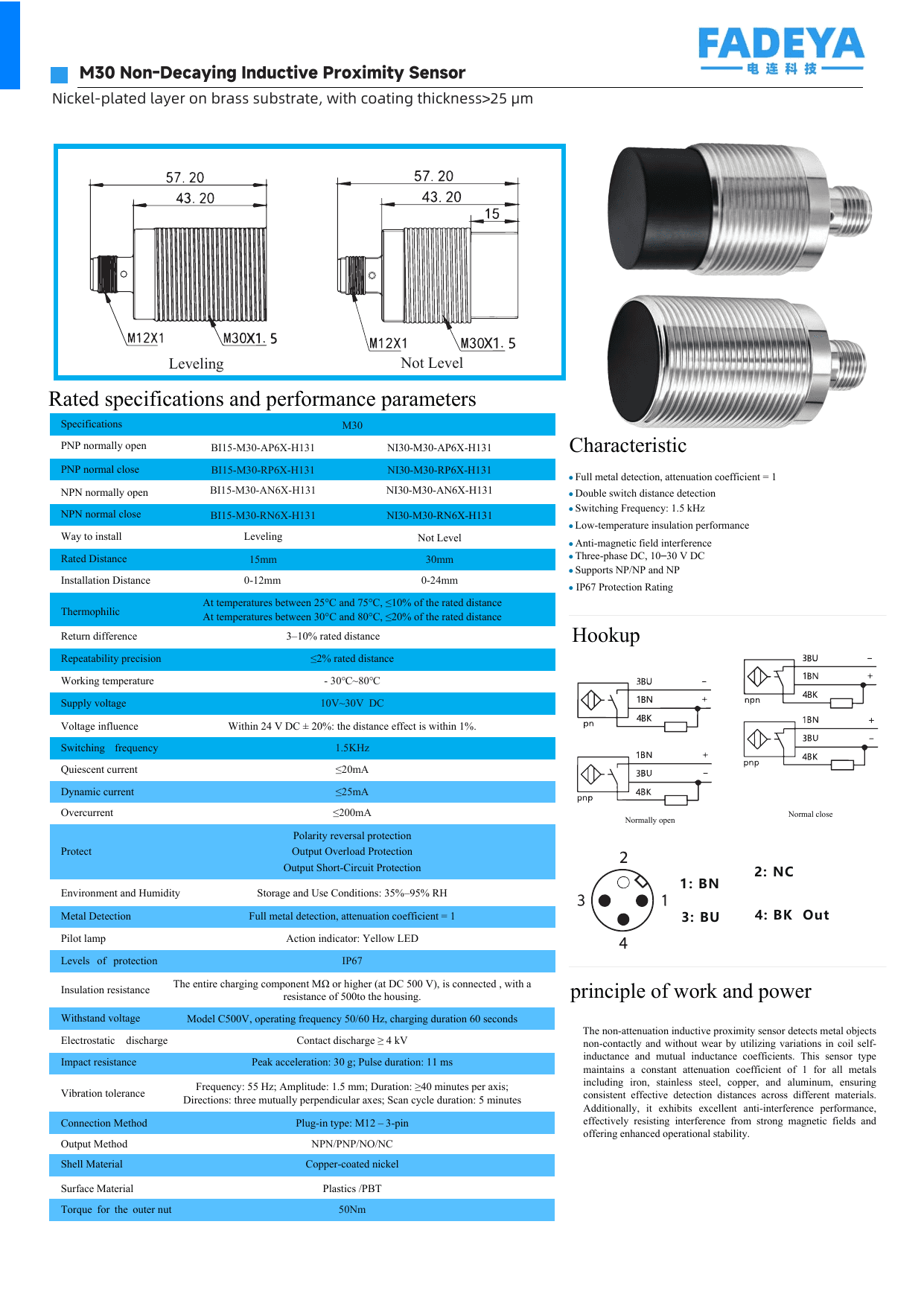

Datasheet
