T-Splitters & Distribution Boxes3 · 4 · 5 pinT-splitter

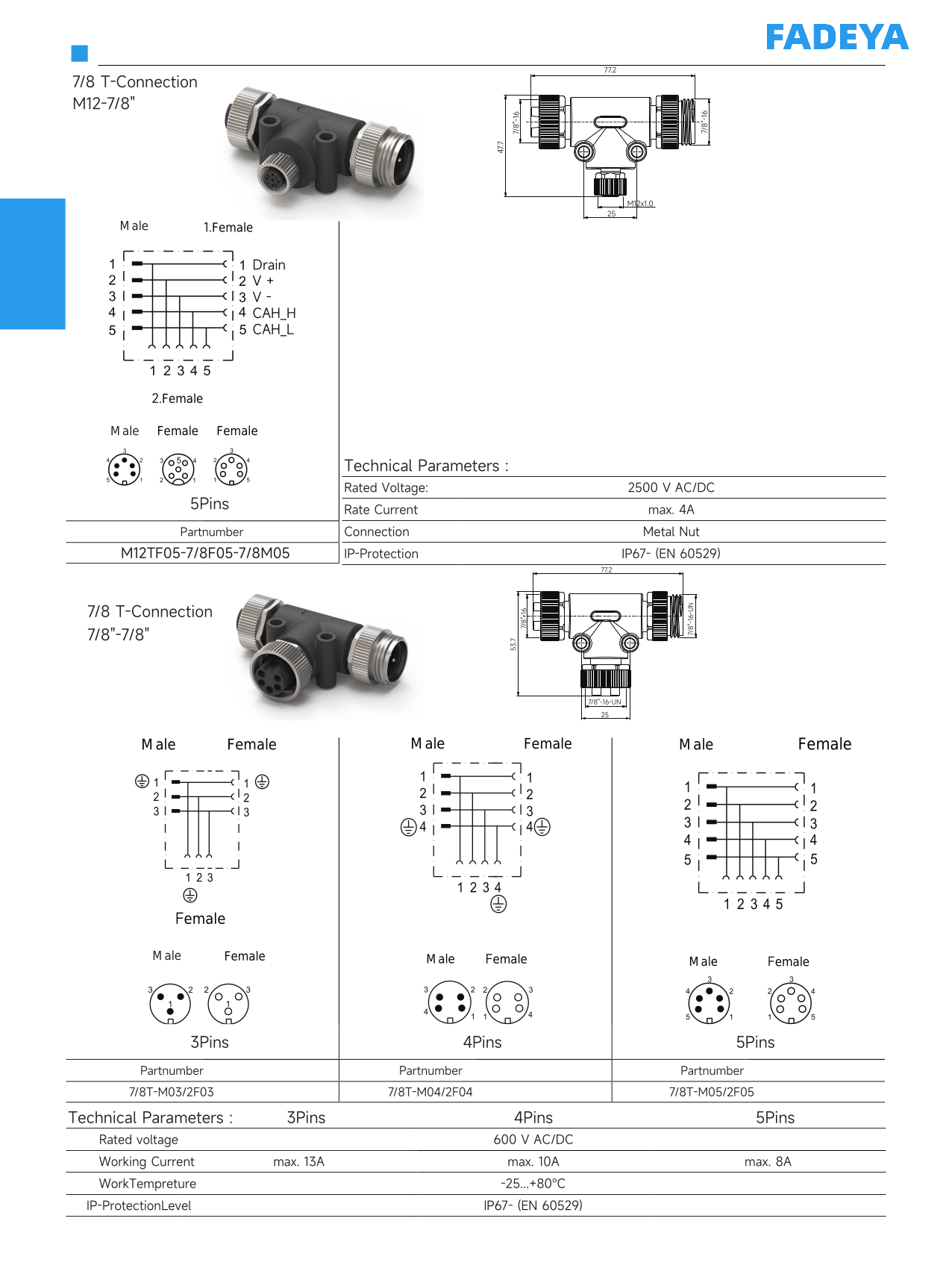

7/8 T-Connectors (M12-7/8 & 7/8-7/8)
7/8" T-splitters: an M12-to-7/8" hybrid (5-pin, DeviceNet pinout) and 7/8-to-7/8" Ts in 3/4/5-pin.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12TF05-7/8F05-7/8M05
7/8T-M03/2F03
7/8T-M04/2F04
7/8T-M05/2F05
Cable length is customizable; standard pre-molded length 2.0 m. Jackets: PUR (black, BK) / PVC (yellow, YW). Field connectors & flanges/boxes are rated 600 V / 8 A; pre-molded cordsets are rated 300 V. Naming: 7/8-M/F + pins(03/04/05) + S(straight)/A(angle); flanges FLF-7/8-...; T-splitters 7/8T-...; boxes 7/8-4x/8x{pins}P.
Technical Parameters
| Rated Voltage | 600 V AC/DC |
| Rated Current | 13 A (3-pin) / 10 A (4-pin) / 8 A (5-pin) |
| Operating Temp. | -25 °C ... +80 °C |
| IP Rating | IP67 (EN 60529) |
Datasheet
