7/8 Power Distribution Boxes, 4 / 8-Port
Rugged 7/8" power distribution boxes, 4 or 8 ports, in 3/4/5-pin; 600 V / 8 A, metal-nut locking.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
7/8-4x3P
7/8-4x4P
7/8-4x5P
7/8-8x3P
7/8-8x4P
7/8-8x5P
Cable length is customizable; standard pre-molded length 2.0 m. Jackets: PUR (black, BK) / PVC (yellow, YW). Field connectors & flanges/boxes are rated 600 V / 8 A; pre-molded cordsets are rated 300 V. Naming: 7/8-M/F + pins(03/04/05) + S(straight)/A(angle); flanges FLF-7/8-...; T-splitters 7/8T-...; boxes 7/8-4x/8x{pins}P.
Technical Parameters
| Rated Voltage | 600 V AC/DC |
| Rated Current | 8 A max. |
| Operating Temp. | ambient -25 °C ... +80 °C; operating 0 °C ... +60 °C |
| IP Rating | IP67 |

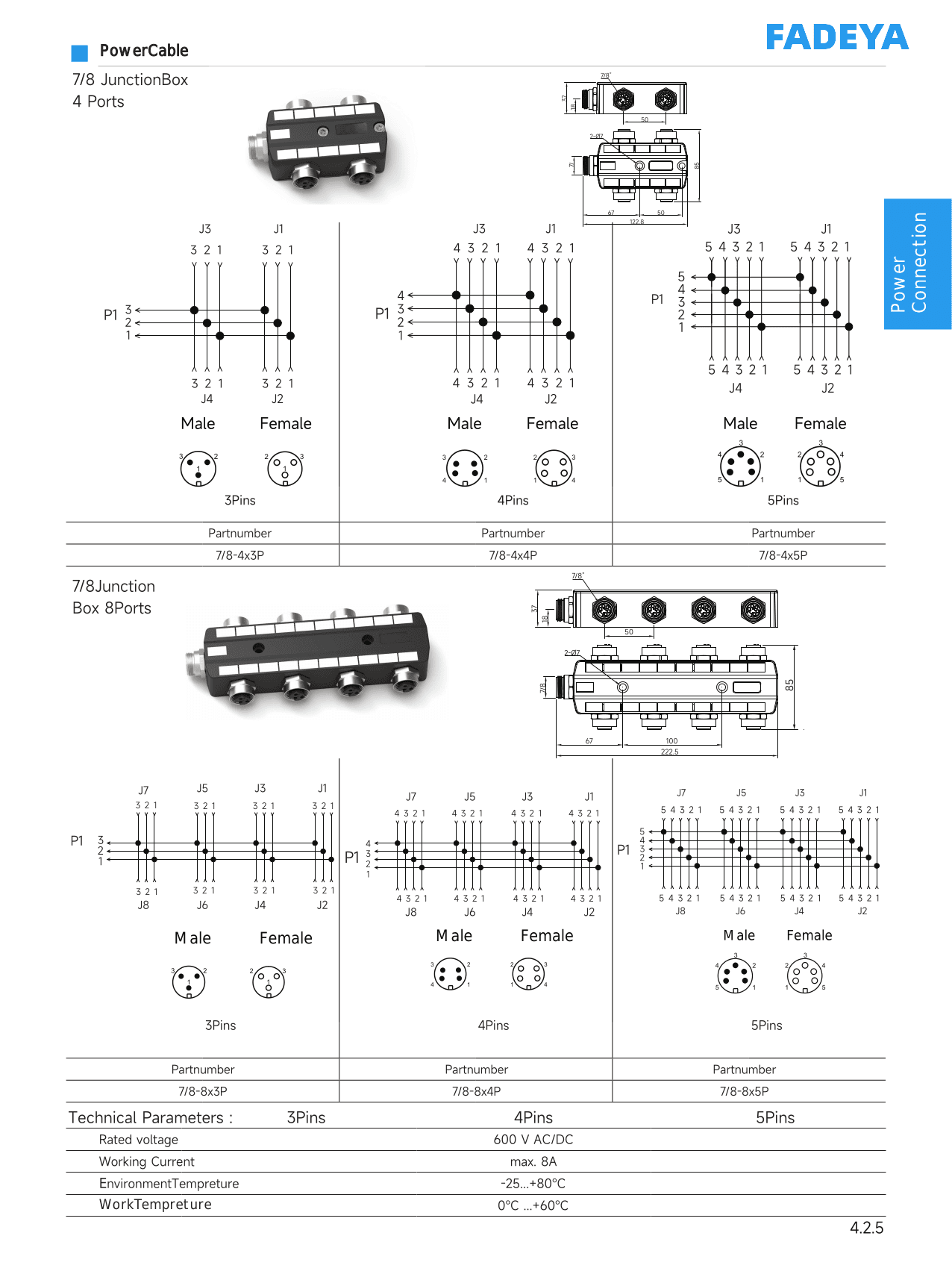

Datasheet
