Coding Pins & Guides
Coding Pins CODE-E / CODE-D (Insert Polarisation)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
CODE-E
CODE-D
Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Function | Coding pin — prevents incorrect mating to other connectors of the same type |
| C O D E- E_application | For HEC, HEE, HE-5/0, HM-006, HM-008 inserts |
| C O D E- D_application | For HD, HDD, HMD-012, HMDD-017, HQ-7/0, HQ-012/0 inserts |
| Note | The male pin should be omitted from the opposing cavity in the male insert |

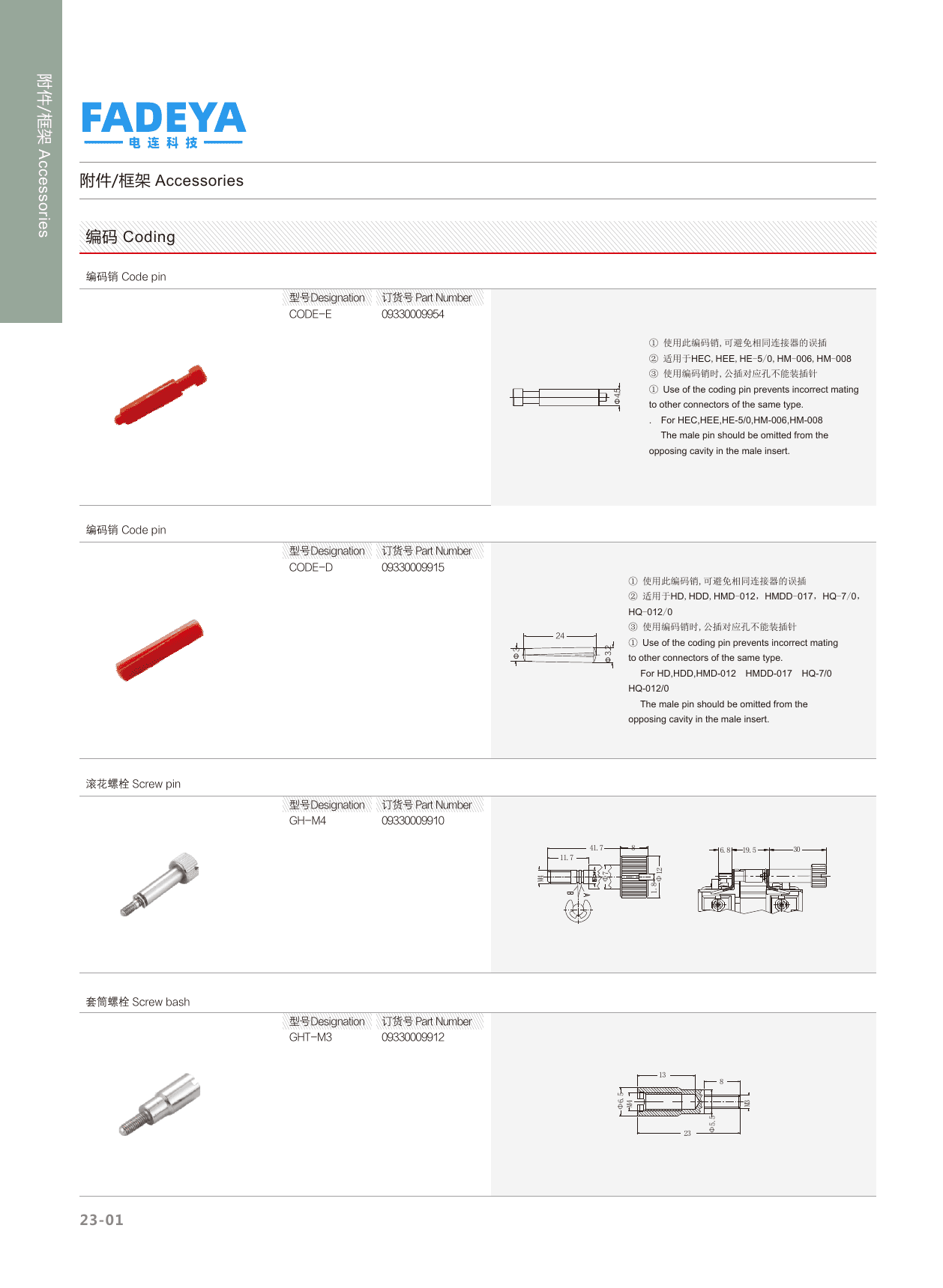

Datasheet
