Assembly Tools
Crimping Tools (5A / 10A–40A / 100A–650A Hydraulic)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
TL03
TL02G
TL02-0G
TL02-3G
TL05

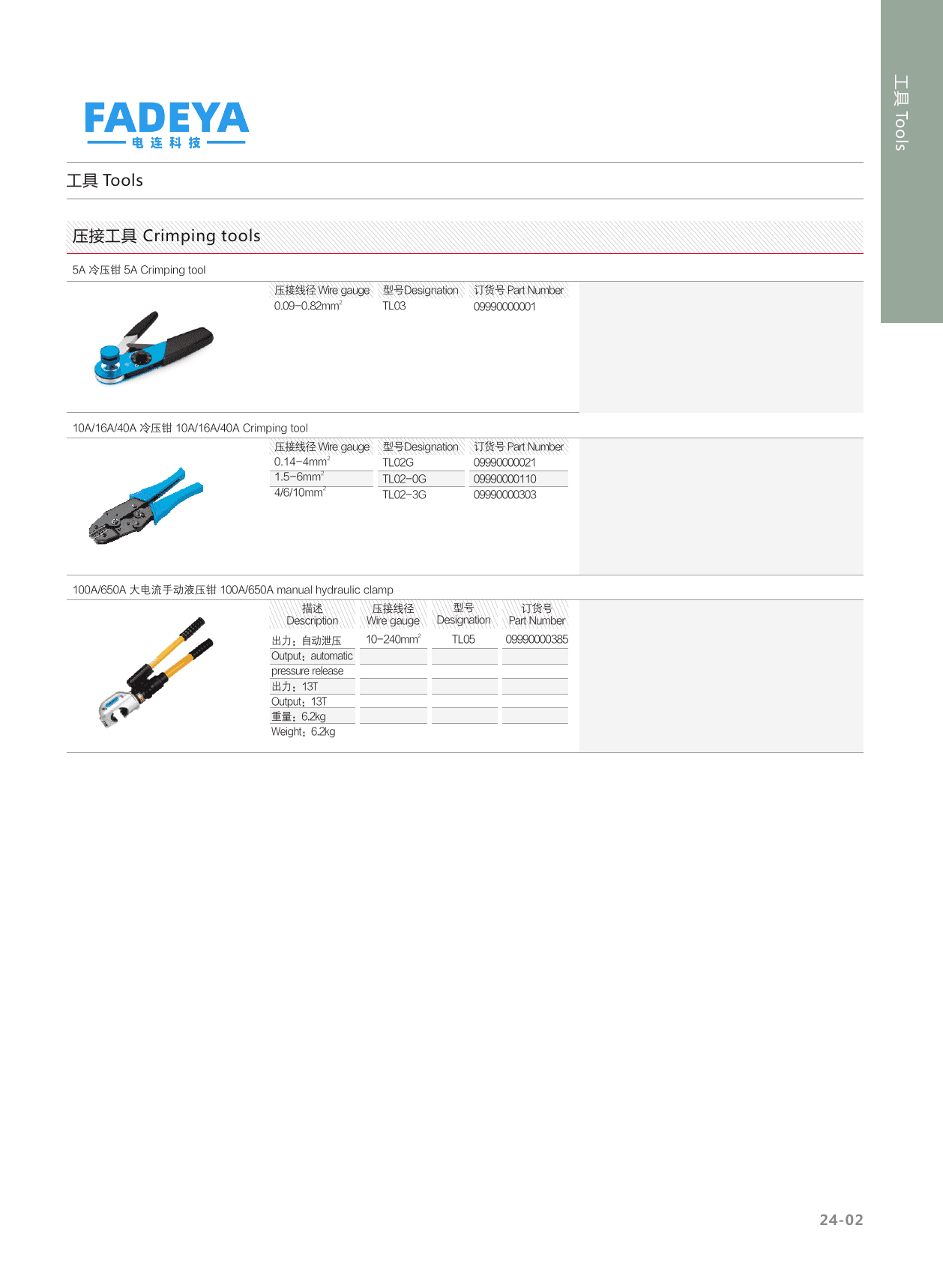

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| T L03 | 5A crimping tool — wire 0.09–0.82 mm² |
| T L02 G | 10A/16A/40A crimping tool — wire 0.14–4 mm² |
| T L02-0 G | 10A/16A/40A crimping tool — wire 1.5–6 mm² |
| T L02-3 G | 10A/16A/40A crimping tool — wire 4/6/10 mm² |
| T L05 | 100A/650A manual hydraulic crimping clamp — wire 10–240 mm², output 13T, automatic pressure release, weight 6.2 kg |
