Mounting & Docking Frames
Docking Frame (6B–24B)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
H6B-ADK
H10B-ADK
H16B-ADK
H24B-ADK

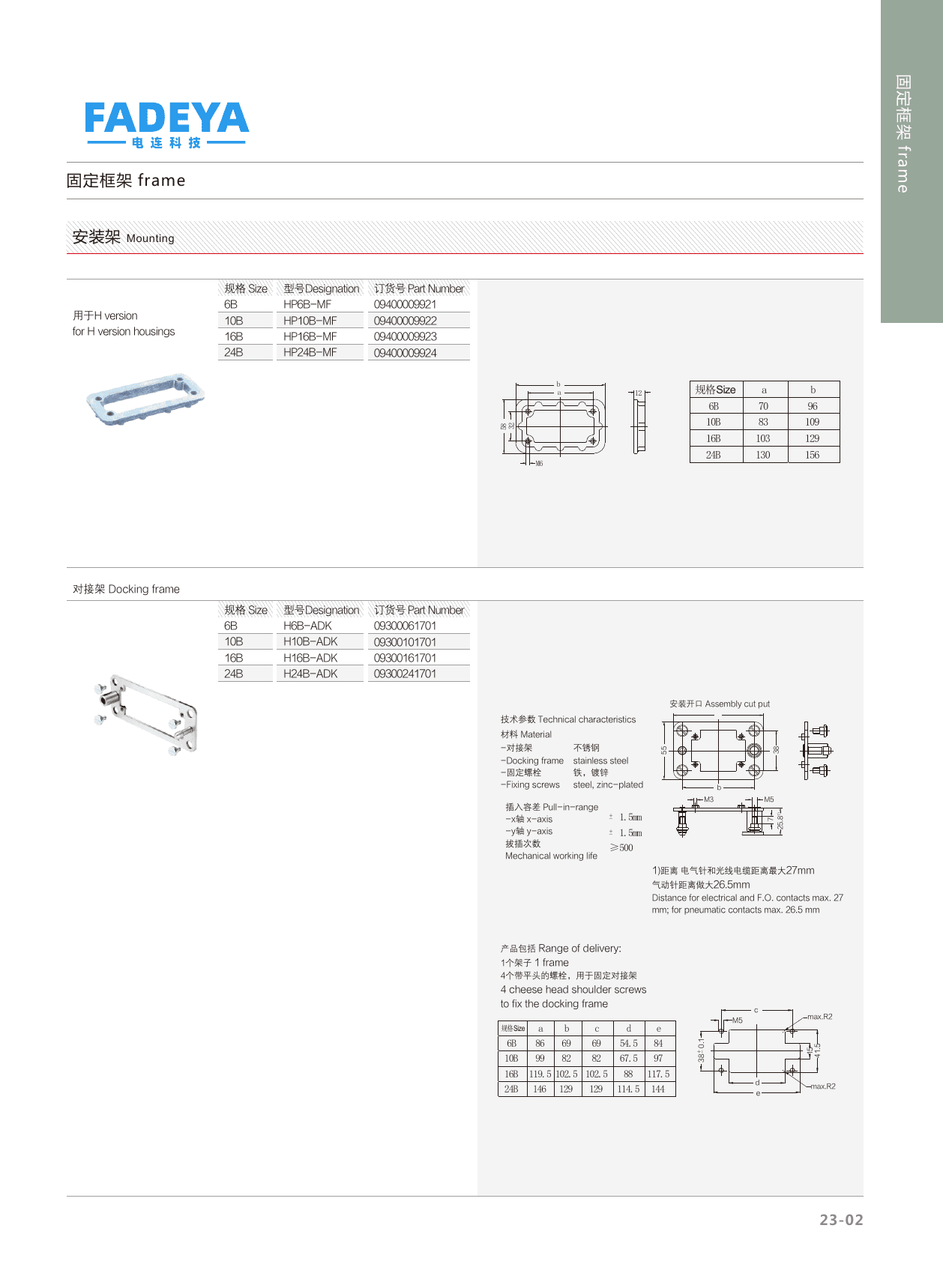

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Sizes | 6B / 10B / 16B / 24B |
| Frame Material | Stainless steel |
| Fixing Screws | Steel, zinc-plated (4 cheese-head shoulder screws) |
| Pull In Range X | ± 1.5 mm |
| Pull In Range Y | ± 1.5 mm |
| Mechanical Life | ≥ 500 mating cycles |
| Contact Distance | Electrical & F.O. contacts max. 27 mm; pneumatic contacts max. 26.5 mm |
| Range Of Delivery | 1 frame + 4 cheese-head shoulder screws to fix the docking frame |
