HEE-010 High-density Inserts
10 pin + PE
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HEE-010-MC
HEE-010-FC

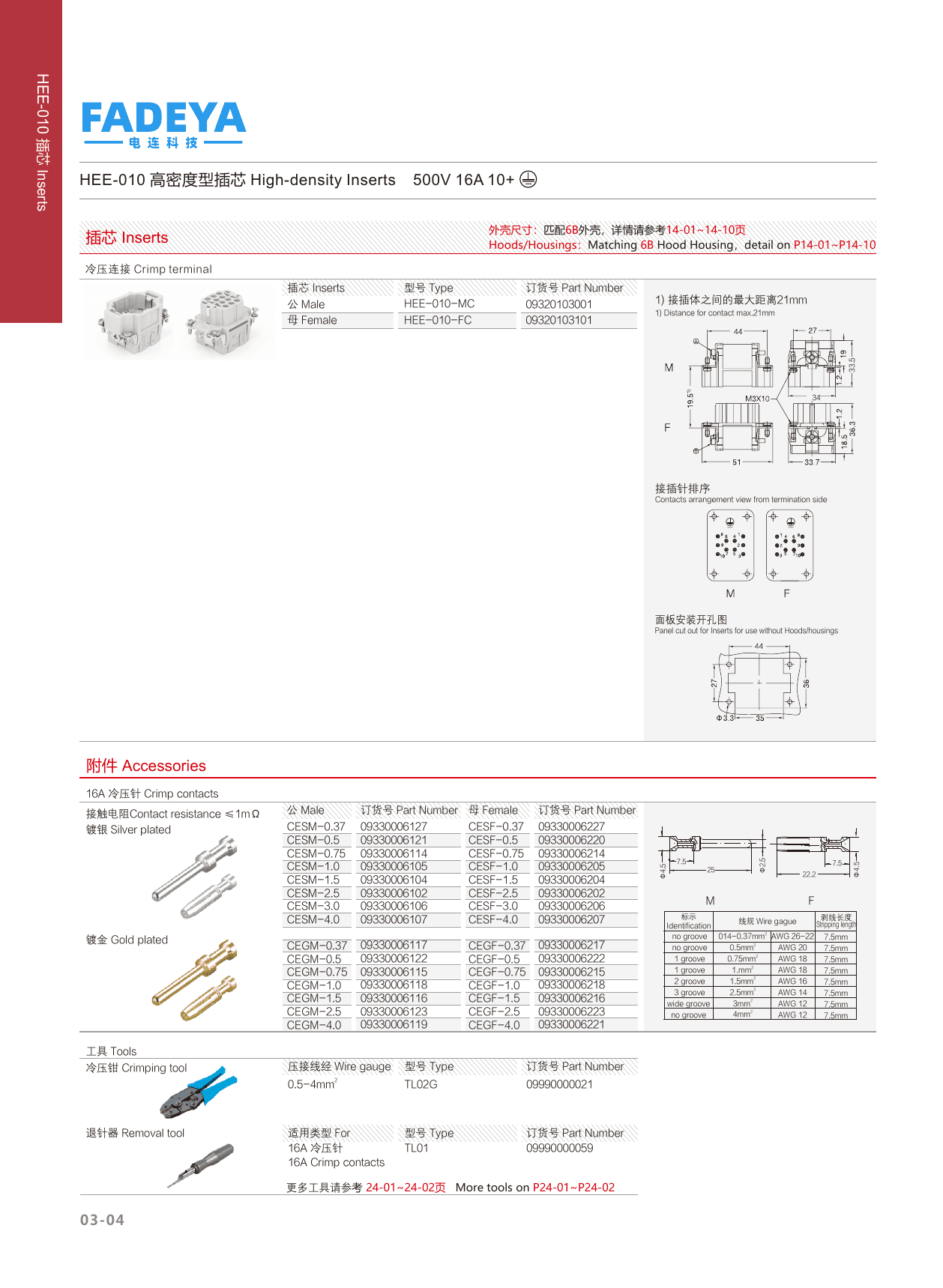

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Rated Current | 16A |
| Rated Voltage | 500V |
| Rated Impulse Voltage | 6kV |
| Pollution Degree | 3 |
| Rated Voltage (PD2) | 16A 830V 8kV (pollution degree 2) |
| Rated Voltage (UL/CSA) | 600V |
| Voltage Up-rating | Up to 1000V with modified contact arrangement (pollution degree 3) |
| Contact Material | Copper alloy |
| Contact Plating | Hard-gold or hard-silver plated |
| Contact Resistance | ≤1mΩ |
| Insulation Resistance | ≥10¹⁰ Ω |
| Housing Material | Polycarbonate (PC) |
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Mating Cycles | ≥500 |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Matching Hood/Housing | 6B hood/housing |
