HK-004/4 Combination Inserts
4 power + 4 signal + PE
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HK-004.1/4-M
HK-004.2/4-M
HK-004.1/4-F
HK-004.2/4-F

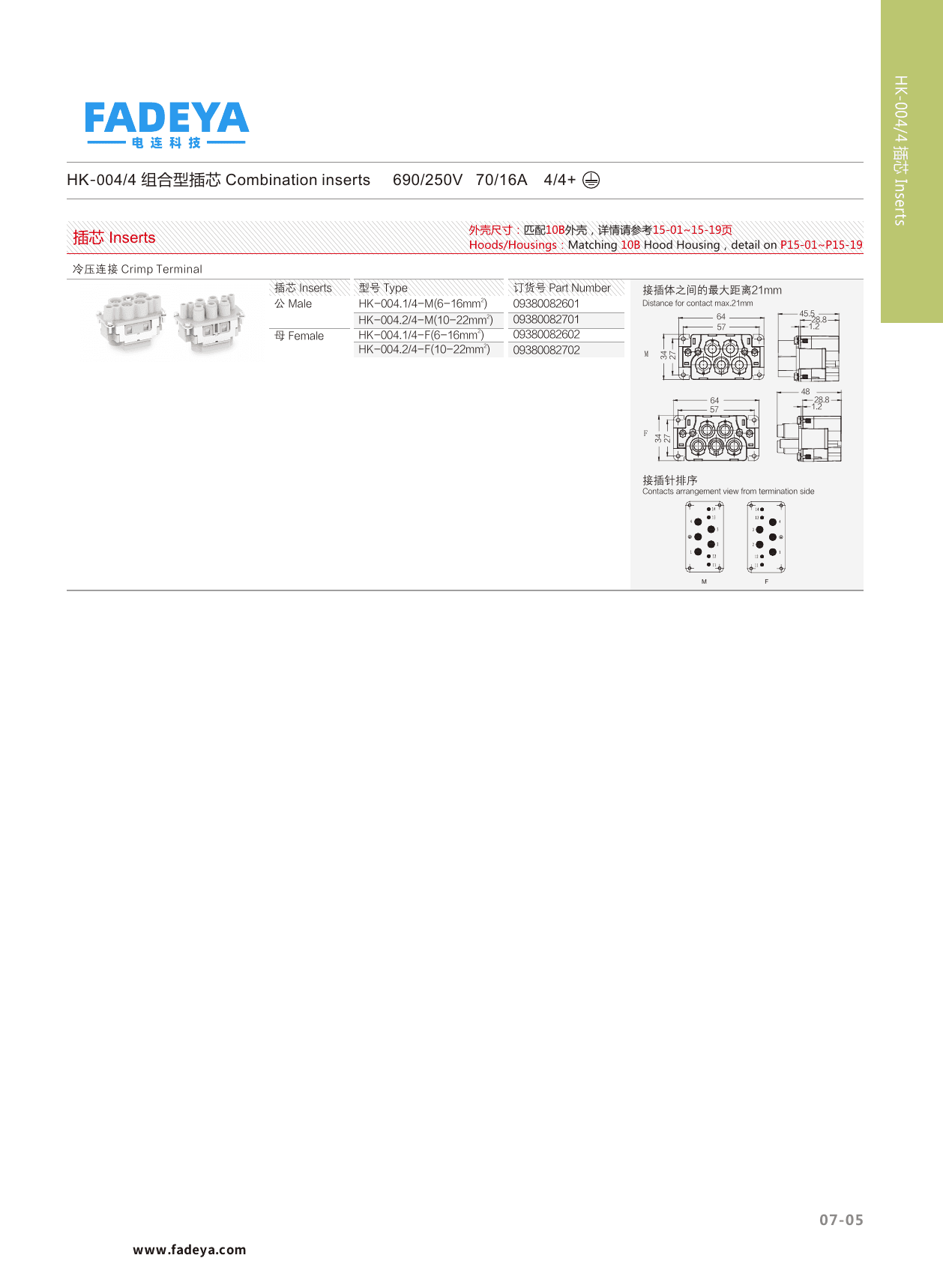

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Rated Current | 70A (power) / 16A (signal) |
| Rated Voltage | 690V (power) / 250V (signal) |
| Rated Impulse Voltage | 8kV (power) / 4kV (signal) |
| Pollution Degree | 3 |
| Rated Voltage (UL/CSA) | 600V / 230V |
| Contact Material | Copper alloy |
| Contact Plating | Hard-silver plated |
| Contact Resistance | ≤0.5mΩ (power) / ≤1mΩ (signal) |
| Insulation Resistance | ≥10¹⁰ Ω |
| Housing Material | Polycarbonate (PC) |
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Mating Cycles | ≥500 |
| Wire Gauge | 10–25mm² AWG 8–4 (power) / 0.14–4mm² AWG 26–12 (signal) |
| Max. Insulation Diameter | 11mm (power) |
| Strip Length | 15.5mm (power) |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Matching Hood/Housing | 10B hood/housing |
| Termination | Crimp |
| Variants | HK-004.1/4 (6–16mm²) and HK-004.2/4 (10–22mm²) power-contact options |
