Han-Modular FramesHinged frame
Hinged Frames & Filling Module (6B / 10B / 16B / 24B)
Carries 2–6 modules
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HF6B-NUA
HF6B-NLA
HF10B-NUA
HF10B-NLA
HF16B-NUA
HF16B-NLA
HF24B-NUA
HF24B-NLA
HM-000

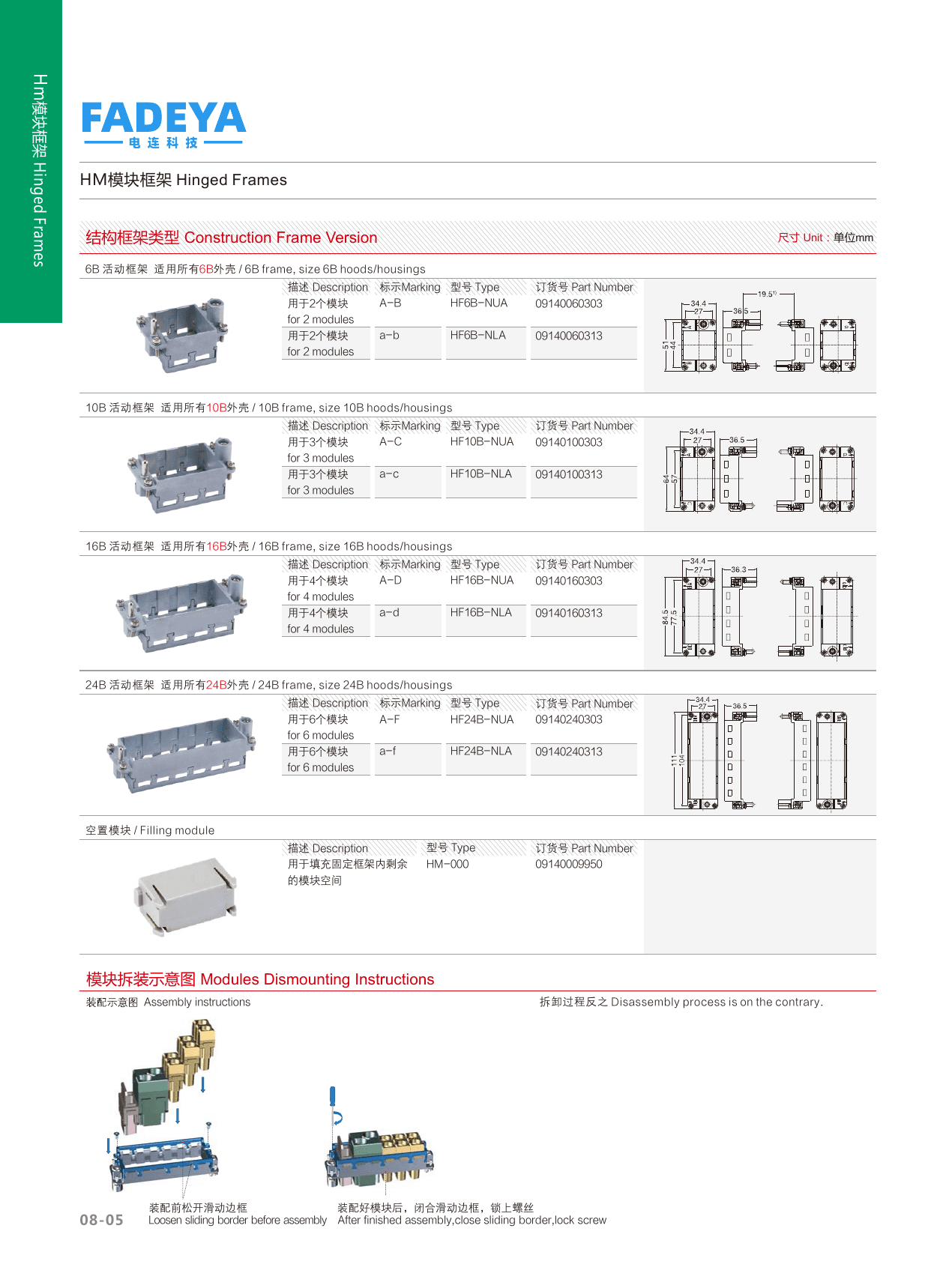

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Frame Sizes | 6B · 10B · 16B · 24B |
| Module Capacity | 6B = 2 · 10B = 3 · 16B = 4 · 24B = 6 modules |
| Marking | Upper frame A–F (NUA) · lower frame a–f (NLA) |
| Filling Module | HM-000 fills one unused module slot in a fixed frame |
| Compatibility | Fits all standard hoods/housings of matching size; module types freely mixable |
| Housing Material | Metal hinged frame with sliding border (open to load, close + lock screw) |
| Temperature Range | -40°C ... +125°C |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Order Numbers | HF6B-NUA 09140060303 · HF6B-NLA 09140060313 · HF10B-NUA 09140100303 · HF10B-NLA 09140100313 · HF16B-NUA 09140160303 · HF16B-NLA 09140160313 · HF24B-NUA 09140240303 · HF24B-NLA 09140240313 · HM-000 09140009950 |
Datasheet
