HMK-003/4 Crimp Hybrid Module — 40A / 10A
3 power + 4 signal contacts
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HMK-003/4-MC
HMK-003/4-FC

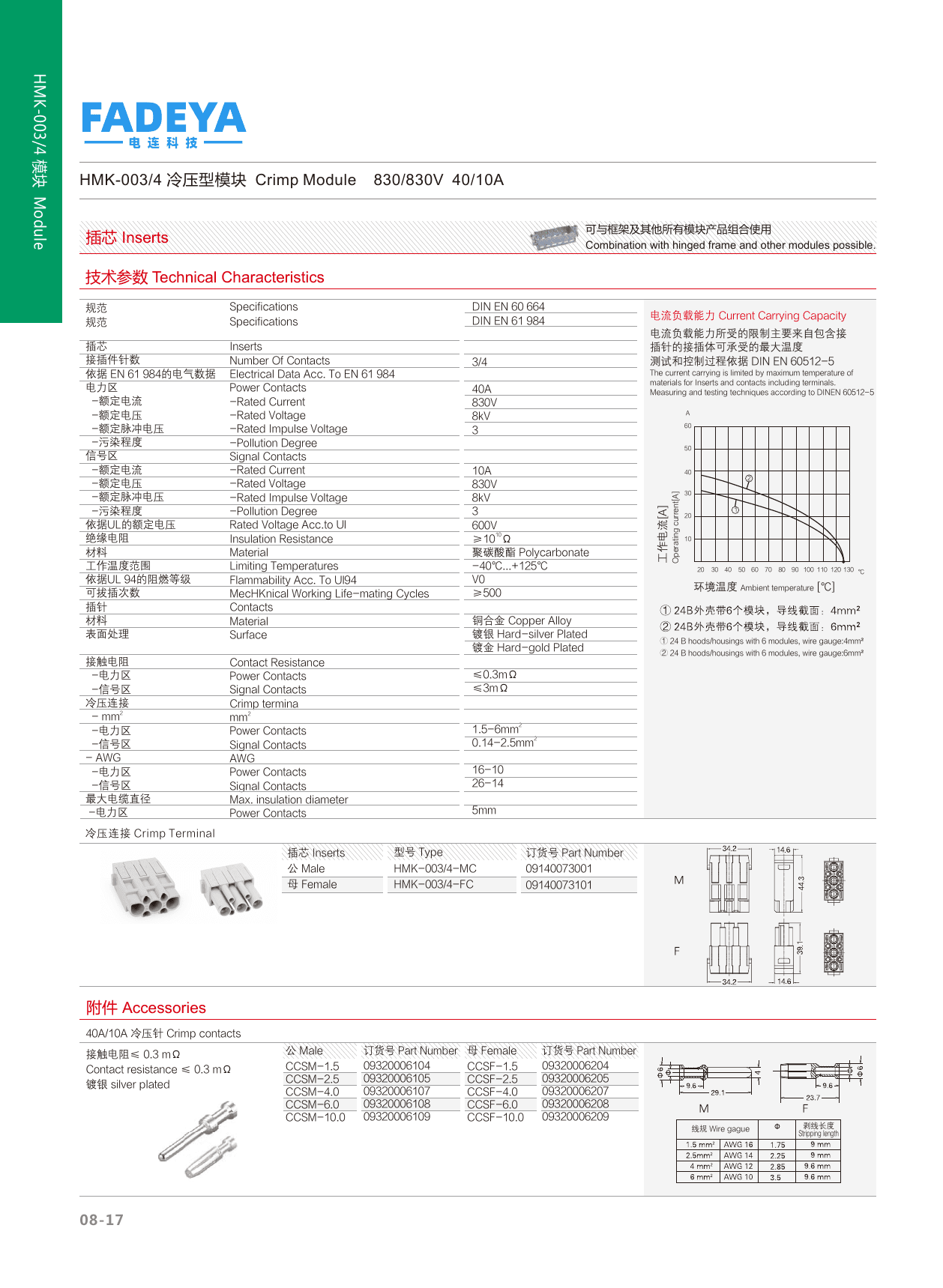

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Pollution Degree | 3 |
| Contact Material | Copper alloy |
| Insulation Resistance | ≥10¹⁰ Ω |
| Housing Material | Polycarbonate (PC) |
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Mating Cycles | ≥500 |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Rated Current | Power 40A · Signal 10A |
| Rated Voltage | 830V (power & signal) |
| Rated Impulse Voltage | 8kV |
| Rated Voltage (UL/CSA) | 600V |
| Contact Plating | Power: hard-silver · Signal: hard-gold plated |
| Contact Resistance | Power ≤0.3mΩ · Signal ≤3mΩ |
| Wire Gauge | Power 1.5–6mm² (AWG 16–10) · Signal 0.14–2.5mm² (AWG 26–14) |
| Max. Insulation Diameter | Power 5mm |
| Crimp Contacts | CCSM/CCSF-1.5…10.0 (power) · signal contacts ordered separately |
| Matching Hood/Housing | 24B hood/housing — 6 modules |
| Order Numbers | HMK-003/4-MC 09140073001 · HMK-003/4-FC 09140073101 |
