HMDD-017 Crimp Signal Module — 10A (17-pole)
17 contacts
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HMDD-017-MC
HMDD-017-FC

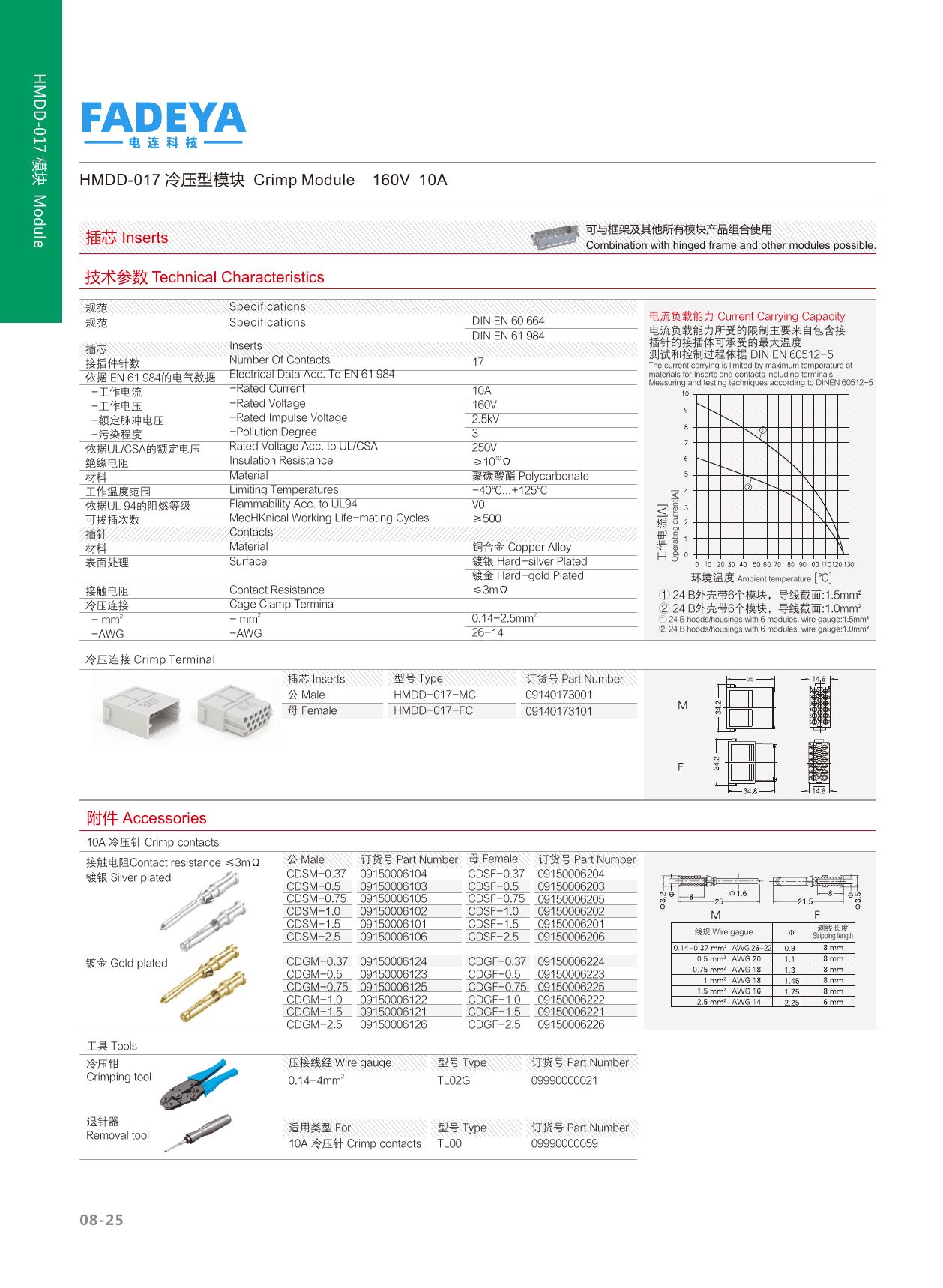

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Pollution Degree | 3 |
| Contact Material | Copper alloy |
| Insulation Resistance | ≥10¹⁰ Ω |
| Housing Material | Polycarbonate (PC) |
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Mating Cycles | ≥500 |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Rated Current | 10A |
| Rated Voltage | 160V |
| Rated Impulse Voltage | 2.5kV |
| Rated Voltage (UL/CSA) | 250V |
| Contact Plating | Hard-gold or hard-silver plated |
| Contact Resistance | ≤3mΩ |
| Wire Gauge | 0.14–2.5mm² (AWG 26–14) |
| Crimp Contacts | CDSM/CDGM · CDSF/CDGF, 0.37–2.5mm² |
| Matching Hood/Housing | 24B hood/housing — 6 modules |
| Order Numbers | HMDD-017-MC 09140173001 · HMDD-017-FC 09140173101 |
