HMDS-025 High-density Signal Module — 4A (25-pole)
25 contacts
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HMDS-025-MC
HMDS-025-FC

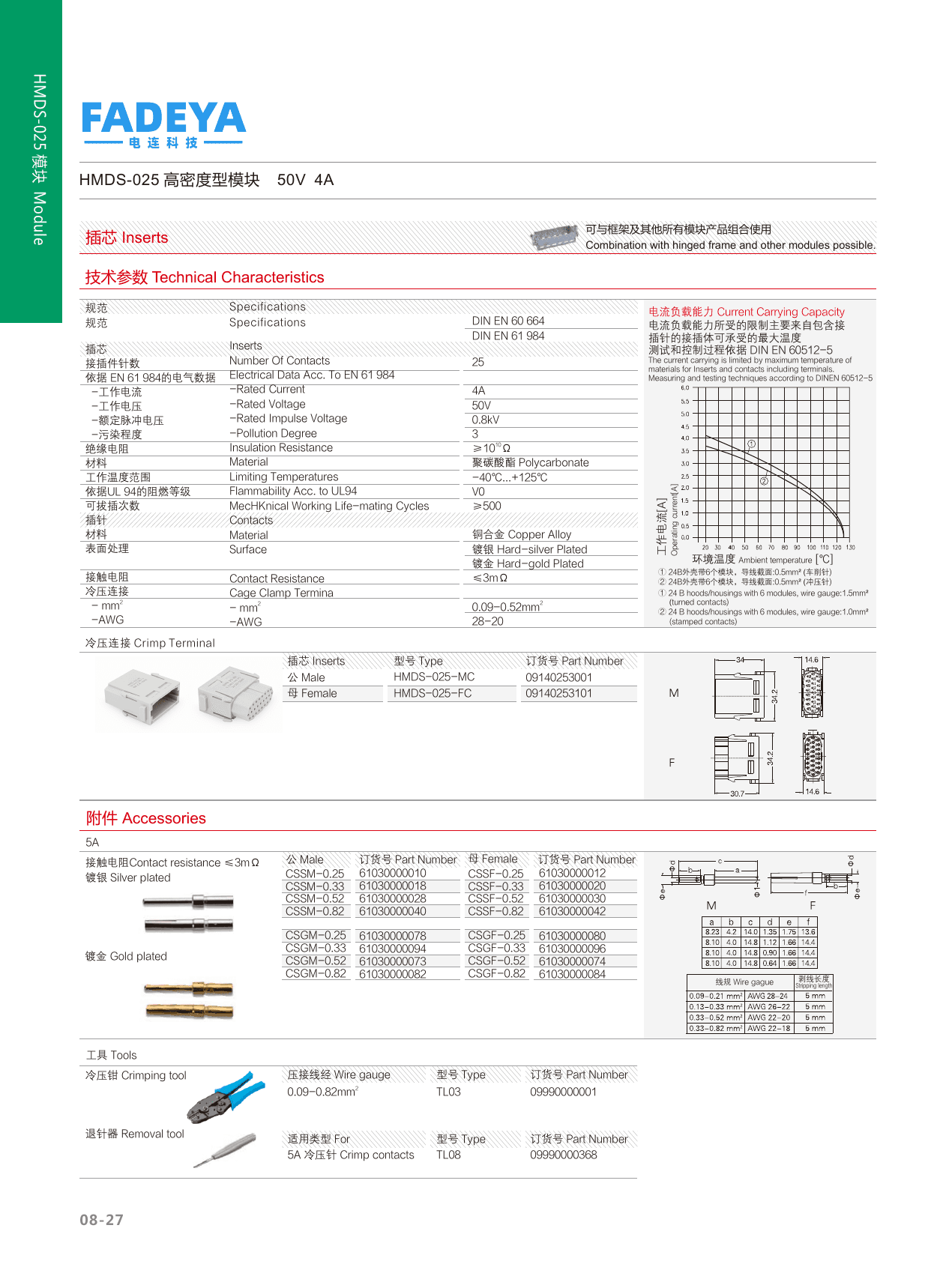

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Pollution Degree | 3 |
| Contact Material | Copper alloy |
| Insulation Resistance | ≥10¹⁰ Ω |
| Housing Material | Polycarbonate (PC) |
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Mating Cycles | ≥500 |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Rated Current | 4A |
| Rated Voltage | 50V |
| Rated Impulse Voltage | 0.8kV |
| Contact Plating | Hard-gold or hard-silver plated |
| Contact Resistance | ≤3mΩ |
| Wire Gauge | 0.09–0.52mm² (AWG 28–20) |
| Crimp Contacts | CSSM/CSGM · CSSF/CSGF, 0.25–0.82mm² |
| Order Numbers | HMDS-025-MC 09140253001 · HMDS-025-FC 09140253101 |
