Hoods & Housings A SeriesSize 3A
3A Plastic Hoods & Housings (IP65)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
H3A.P-SE-2B-M20
H3A.P-SE-2B-PG11
H3A.P-TE-2B-M20
H3A.P-TE-2B-PG11
H3A.P-BK-1L
H3A.P-BK-1L-SE
H3A.P-SF-1L-M20
H3A.P-SF-1L-PG11
H3A.P-CCT-1L-M20
H3A.P-CCT-1L-PG11

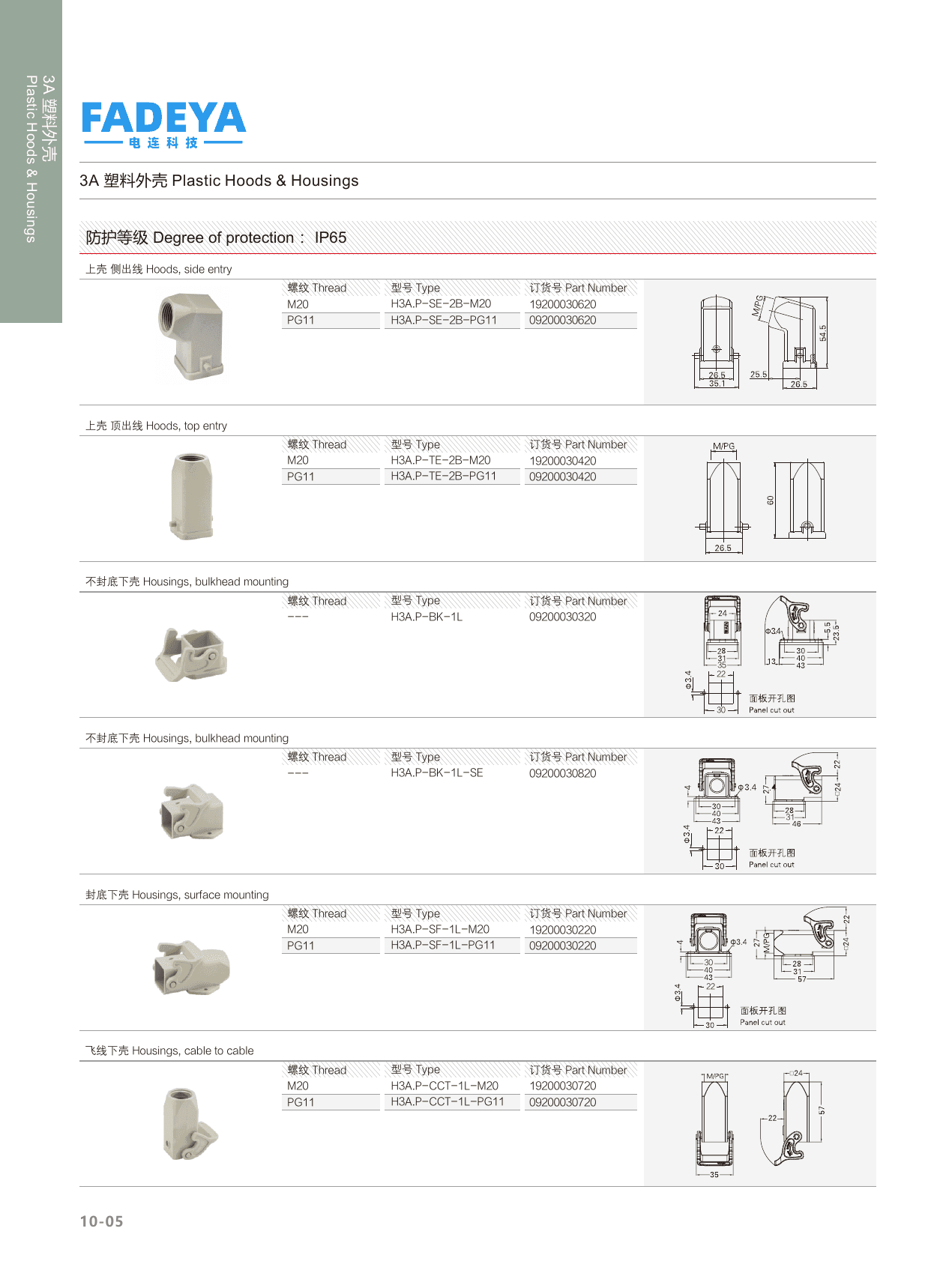

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Seal | NBR |
| Standards | DIN EN 60529 |
| Material | Polycarbonate (PC) |
| Colour | Light grey (RAL 7032) |
| Locking Element | Plastic spring lever (PA) |
| Protection | IP65 |
| Housing Types | Side-entry hood, top-entry hood, bulkhead housing, surface-mount housing, cable-to-cable housing |
| Threads | M20 / PG11 |
| Locking | 2 levers (2B hood) / 1 lever (1L housing) |
Datasheet
