Hoods & Housings B Series (6B / 10B / 16B / 24B)Size 10B
10B Corrosion-Resistant Metal Hoods & Housings — Side & Top Entry, Bulkhead Mount · 4-Bolt / 2-Lever · High Construction (IP65)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
H10B-MSE-4B-M20
H10B-MSE-4B-PG16
H10B-MSEH-4B-M25
H10B-MTE-4B-M20
H10B-MTE-4B-PG16
H10B-MTEH-4B-M32
H10B-MCCT-2L-PG16
H10B-MBK-2L

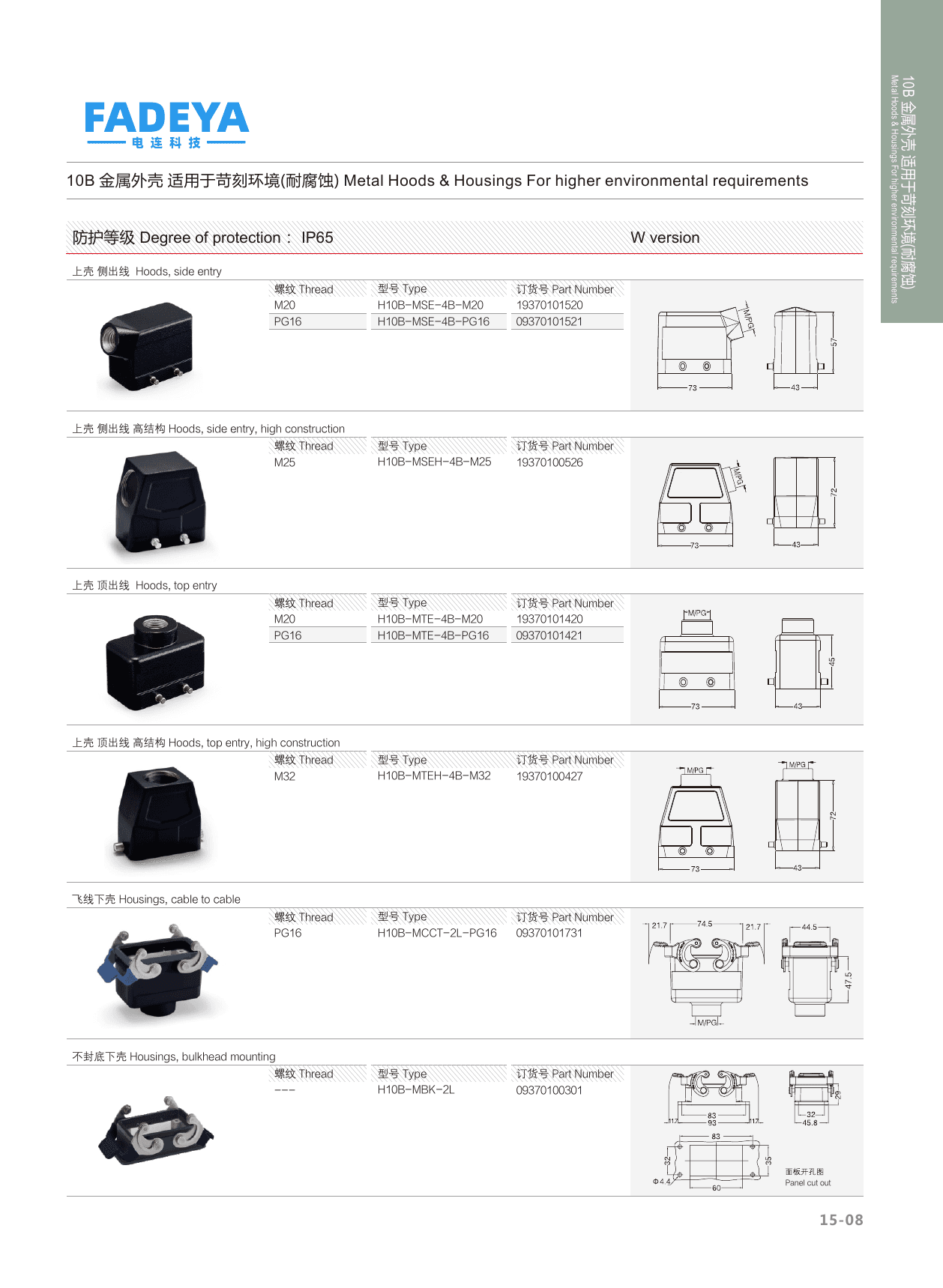

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Protection | IP65 |
| Compatible Insert Size | 10B |
| Material | Die-cast metal, corrosion-resistant surface treatment |
| Locking Element | Metal spring lever (galvanized / nickel-plated steel) |
| Temperature Range | -40°C ... +125°C |
| Standards | DIN EN 60529 |
| Seal | NBR |
| Housing Types | side-entry hood, top-entry hood, bulkhead housing, cable-to-cable housing |
| Locking | 4-Bolt, 2-Lever |
| Threads | M20 / M25 / M32 / PG16 |
Datasheet
