Hoods & Housings B Series (6B / 10B / 16B / 24B)Size 16B
16B Plastic Hoods & Housings — Side & Top Entry, Bulkhead & Surface Mount · 4-Bolt / 2-Lever · High Construction (IP65)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
H16B.P-SEH-4B-M32
H16B.P-SEH-4B-M40
H16B.P-TEH-4B-M32
H16B.P-TEH-4B-M40
H16B.P-BK-2L
H16B.P-SFH-2L-M32
H16B.P-SFH-2L-2M32
H16B.P-SFH-2L-M40
H16B.P-SFH-2L-2M40
H16B.P-CV-4B/2
H16B.P-CV-2L/1

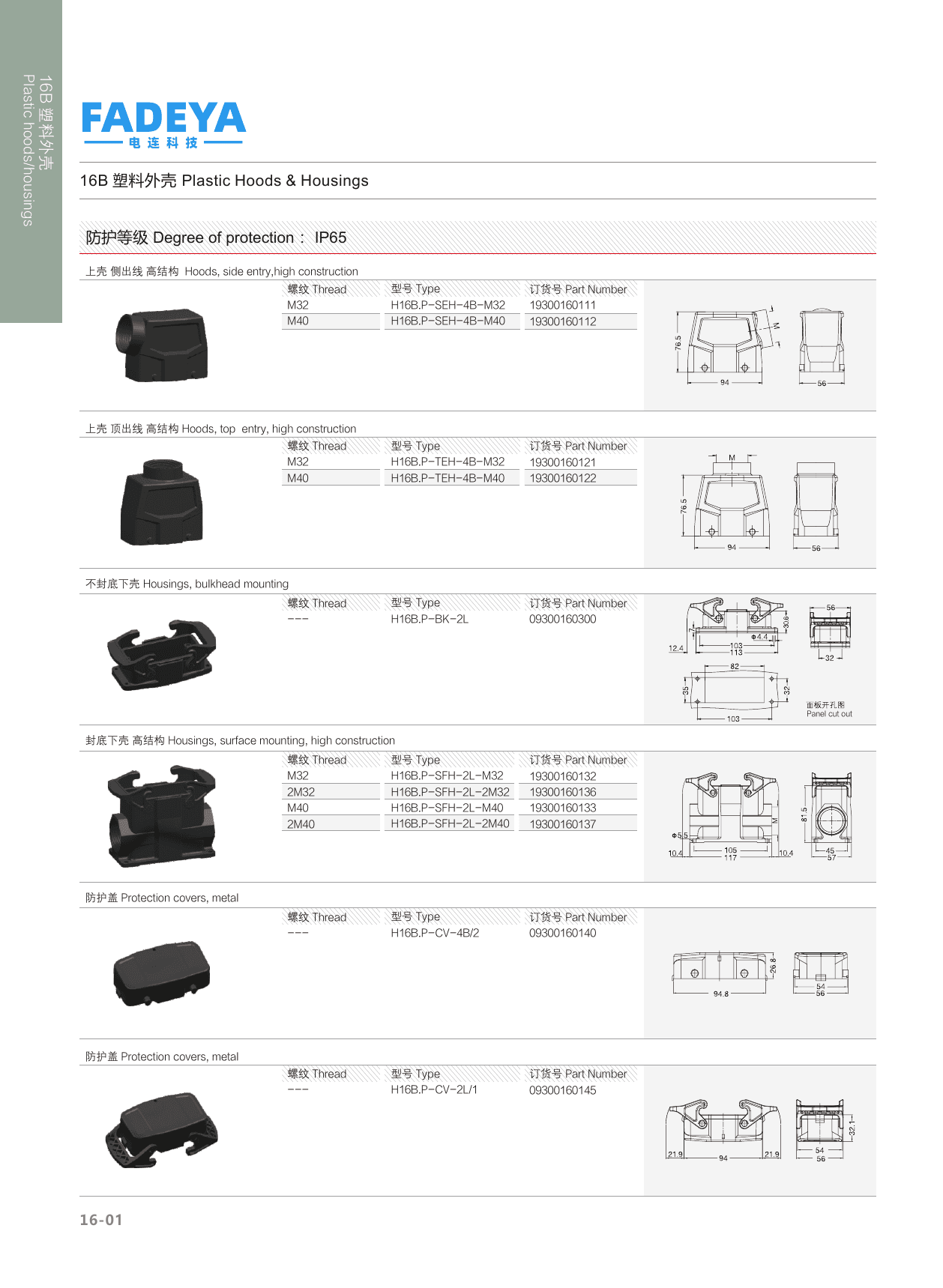

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Protection | IP65 |
| Compatible Insert Size | 16B |
| Material | Polycarbonate (PC) |
| Colour | Light grey (RAL 7032) |
| Locking Element | Plastic spring lever (PA) |
| Flammability | UL94 V0 |
| Temperature Range | -40°C ... +125°C |
| Standards | DIN EN 60529 |
| Seal | NBR |
| Housing Types | side-entry hood, top-entry hood, bulkhead housing, surface-mount housing, protection cover |
| Locking | 4-Bolt, 2-Lever |
| Threads | M32 / M40 |
Datasheet
