Hoods & Housings B Series (6B / 10B / 16B / 24B)Size 16B
16B High-Voltage (HVE) Housings — Bulkhead & Surface Mount · 1-Lever · High Construction (IP65)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HV16B-BK-1L
HV16B-BK-1L-CV
HV16B-BK-1L-MCV
HV16B-SF-1L-M25
HV16B-SF-1L-2M25
HV16B-SF-1L-PG21
HV16B-SF-1L-2PG21
HV16B-SF-1L-CV-M25
HV16B-SF-1L-CV-2M25
HV16B-SF-1L-CV-PG21
HV16B-SF-1L-CV-2PG21
HV16B-SF-1L-MCV-M25

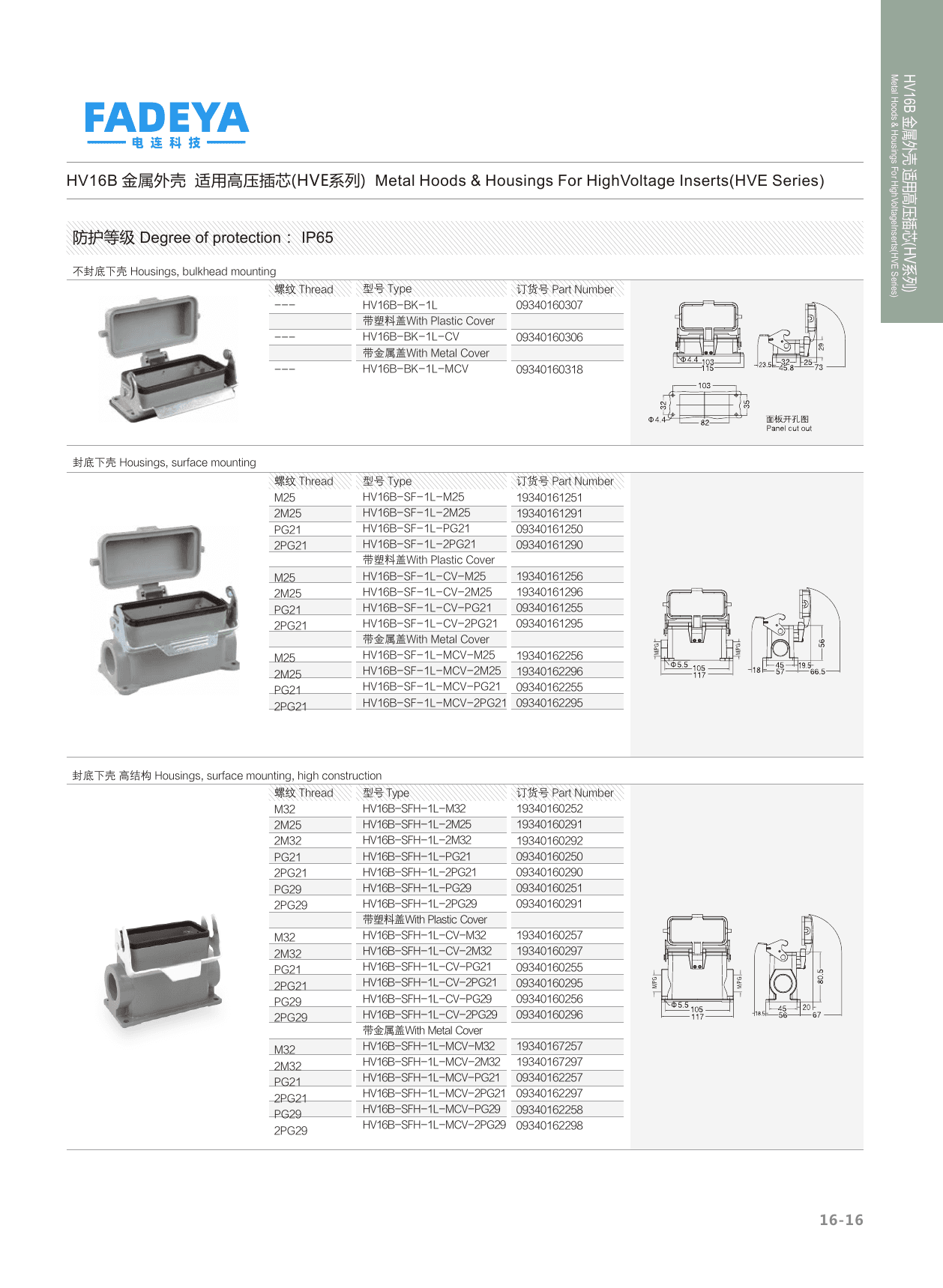

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Protection | IP65 |
| Compatible Insert Size | 16B |
| Material | Zinc / aluminium die-cast |
| Locking Element | Metal spring lever (galvanized / nickel-plated steel) |
| Insert Type | High-voltage HVE-series inserts |
| Temperature Range | -40°C ... +125°C |
| Standards | DIN EN 60529 |
| Seal | NBR |
| Housing Types | bulkhead housing, surface-mount housing |
| Locking | 1-Lever |
| Threads | M25 / M32 / PG21 / PG29 |
