Hoods & Housings B Series (6B / 10B / 16B / 24B)Size 24B
24B Corrosion-Resistant Metal Hoods & Housings — Side Entry, Bulkhead & Surface Mount · 2-Lever / 4-Bolt · High Construction (IP65)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
H24B-MSFH-2L-2M32
H24B-MSFH-2L-2PG29
H24B-MMCV-4B/1
H24B-MMCV-4B/2
H24B-MMCV-2L.1S
H24B-MMCV-2L.2S
H24B-MSEH-1L/C-M32
H24B-MSEH-1L/C-PG29
H24B-MBK-2B/C

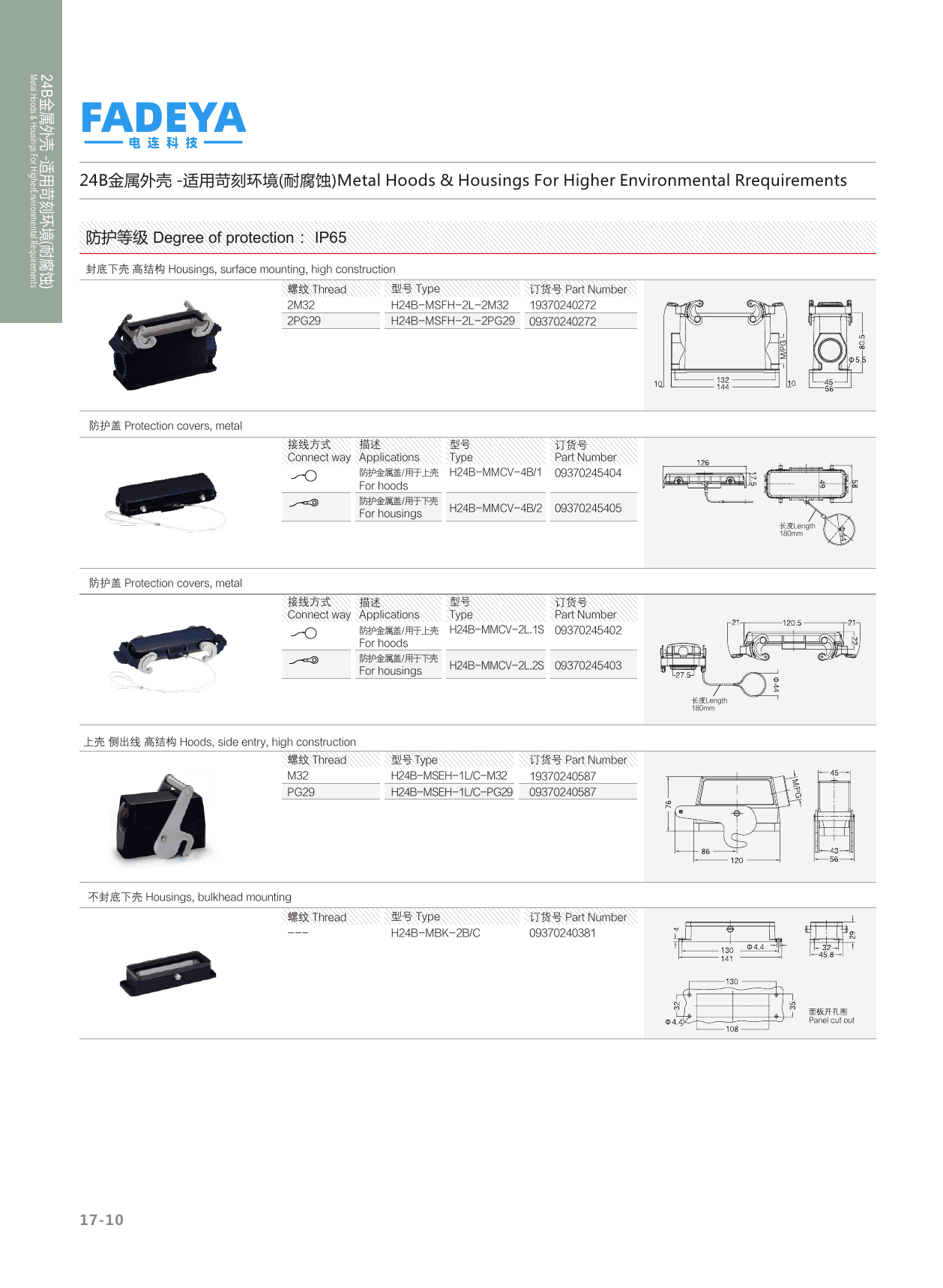

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Protection | IP65 |
| Compatible Insert Size | 24B |
| Material | Die-cast metal, corrosion-resistant surface treatment |
| Locking Element | Metal spring lever (galvanized / nickel-plated steel) |
| Temperature Range | -40°C ... +125°C |
| Standards | DIN EN 60529 |
| Seal | NBR |
| Housing Types | side-entry hood, bulkhead housing, surface-mount housing, protection cover |
| Locking | 2-Lever, 4-Bolt, 1-Lever, 2-Bolt |
| Threads | M32 / PG29 |
Datasheet
