Hoods & Housings B Series (6B / 10B / 16B / 24B)Size 24B
24B High-Protection Hoods & Housings — Side & Top Entry, Bulkhead Mount · 4-Bolt Screw-Lock / 4-Bolt · High Construction (IP68)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HP24B/H-SEH-4S-M25
HP24B/H-SEH-4S-M32
HP24B/H-SEH-4S-M40
HP24B/H-SEH-4S-PG21
HP24B/H-SEH-4S-PG29
HP24B/H-TEH-4S-M25
HP24B/H-TEH-4S-M32
HP24B/H-TEH-4S-M40
HP24B/H-TEH-4S-M50
HP24B/H-TEH-4S-PG21
HP24B/H-TEH-4S-PG29
HP24B/H-TEH-4S-PG36

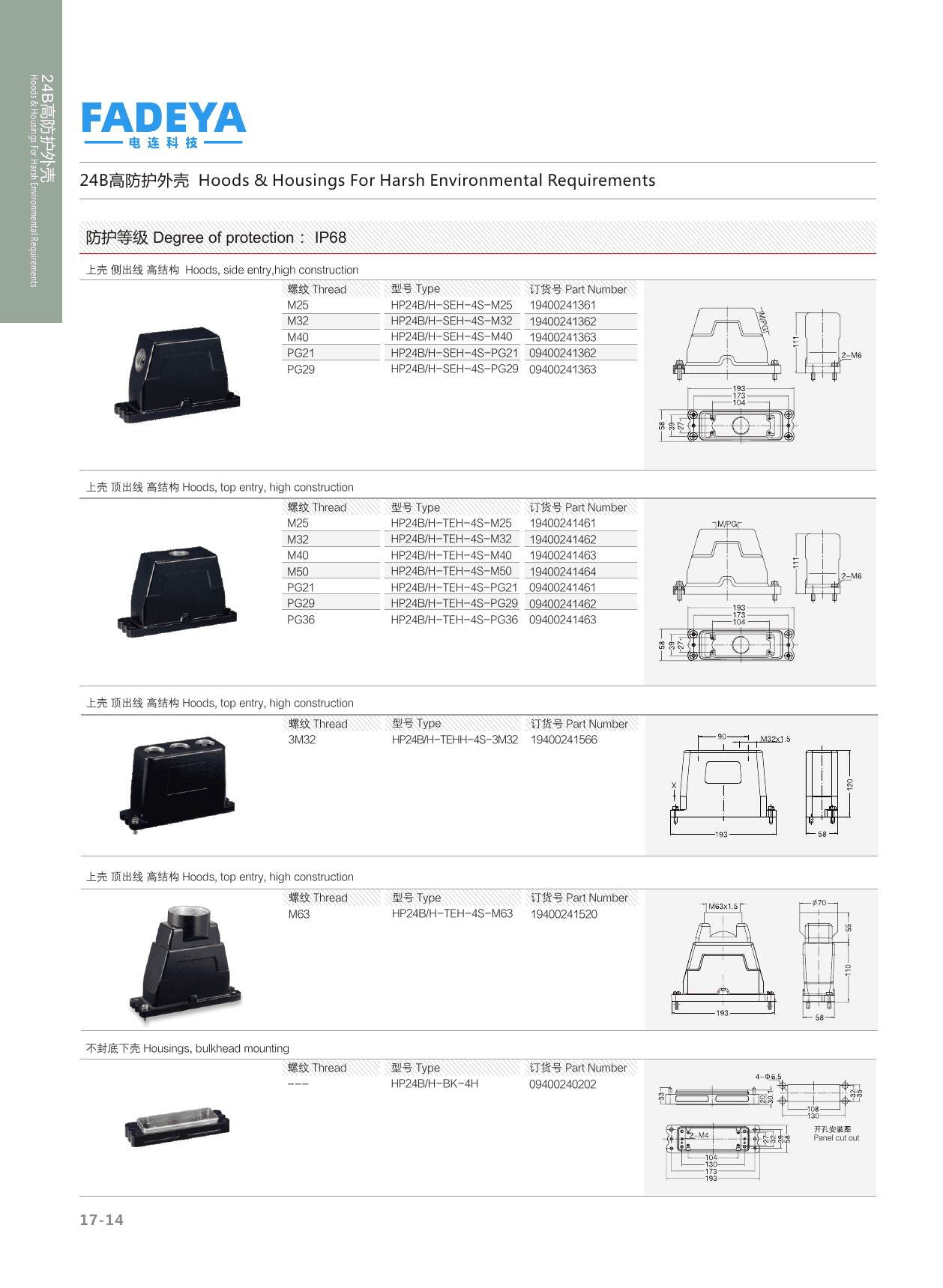

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Protection | IP68 |
| Compatible Insert Size | 24B |
| Material | Zinc / aluminium die-cast |
| Locking Element | Metal spring lever (galvanized / nickel-plated steel) |
| Note | High-protection family for harsh / wet environments (IP68) |
| Temperature Range | -40°C ... +125°C |
| Standards | DIN EN 60529 |
| Seal | NBR |
| Housing Types | side-entry hood, top-entry hood, bulkhead housing |
| Locking | 4-Bolt Screw-Lock, 4-Bolt |
| Threads | M25 / M32 / M40 / M50 / M63 / PG21 / PG29 / PG36 |
