Han HSB InsertsScrew
HSB-012 Heavy-current Inserts
12 pin + PE
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HSB-006-M (1-6)
HSB-006-M (7-12)
HSB-006-F (1-6)
HSB-006-F (7-12)

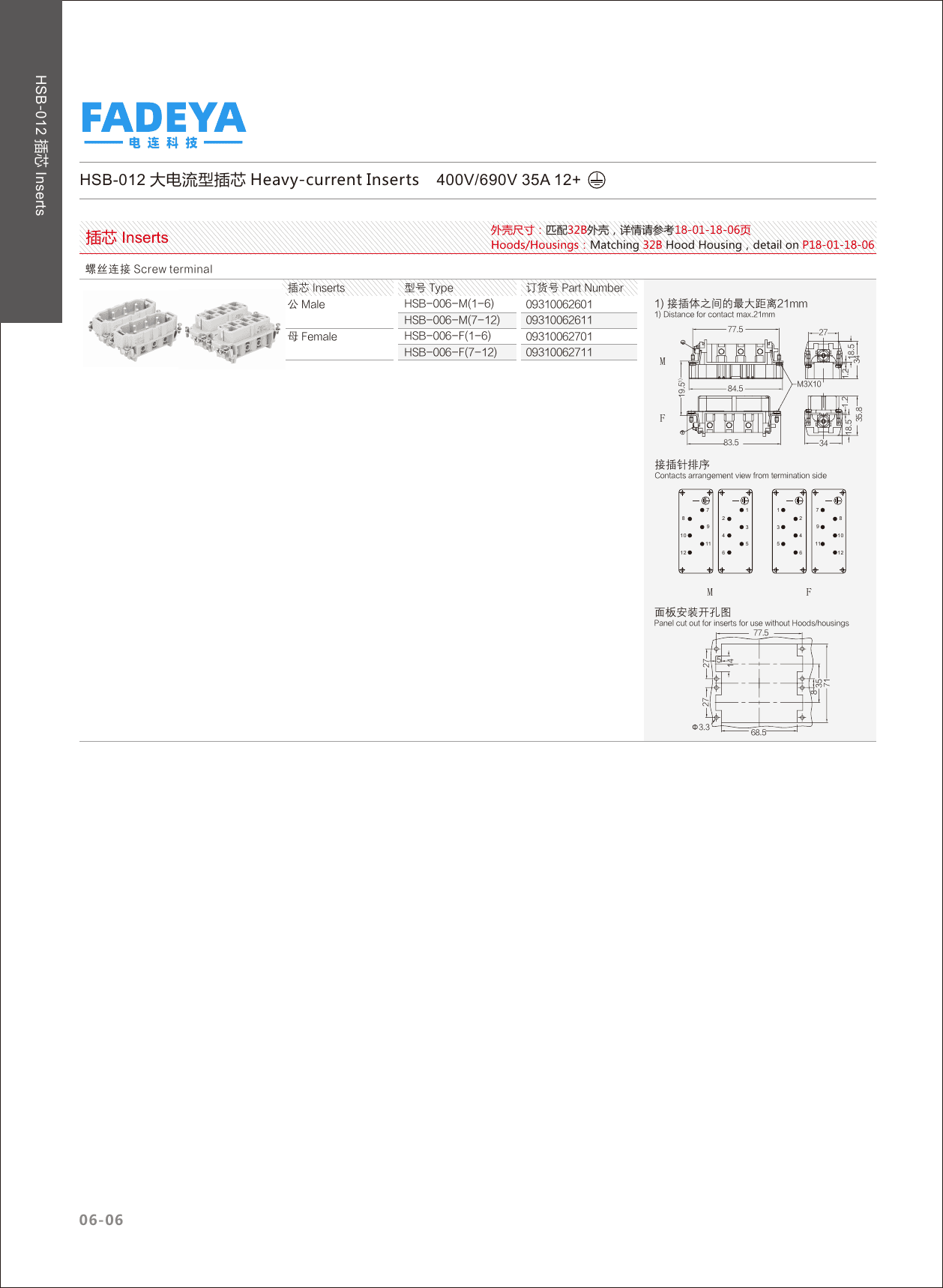

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Rated Current | 35A |
| Rated Voltage | 400V (conductor-ground) / 690V (conductor-conductor) |
| Rated Impulse Voltage | 6kV |
| Pollution Degree | 3 |
| Rated Voltage (UL/CSA) | 35A 500V / 600V |
| Contact Material | Copper alloy |
| Contact Plating | Hard-silver plated |
| Contact Resistance | ≤1mΩ |
| Insulation Resistance | ≥10¹⁰ Ω |
| Housing Material | Polycarbonate (PC) |
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Mating Cycles | ≥500 |
| Wire Gauge | 1.5–6mm² (AWG 10) |
| Tightening Torque | 1.2Nm |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Matching Hood/Housing | 32B hood/housing |
