Crimp Contacts
10A Crimp Contacts — Two-Claw Support · Silver / Gold (for HD, HDD, HM, HK, HQ inserts)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
CDSM-0.37B
CDSM-0.5B
CDSM-0.75B
CDSM-1.0B
CDSM-1.5B
CDSM-2.5B
CDGM-0.37B
CDGM-0.5B
CDGM-0.75B
CDGM-1.0B
CDGM-1.5B
CDGM-2.5B

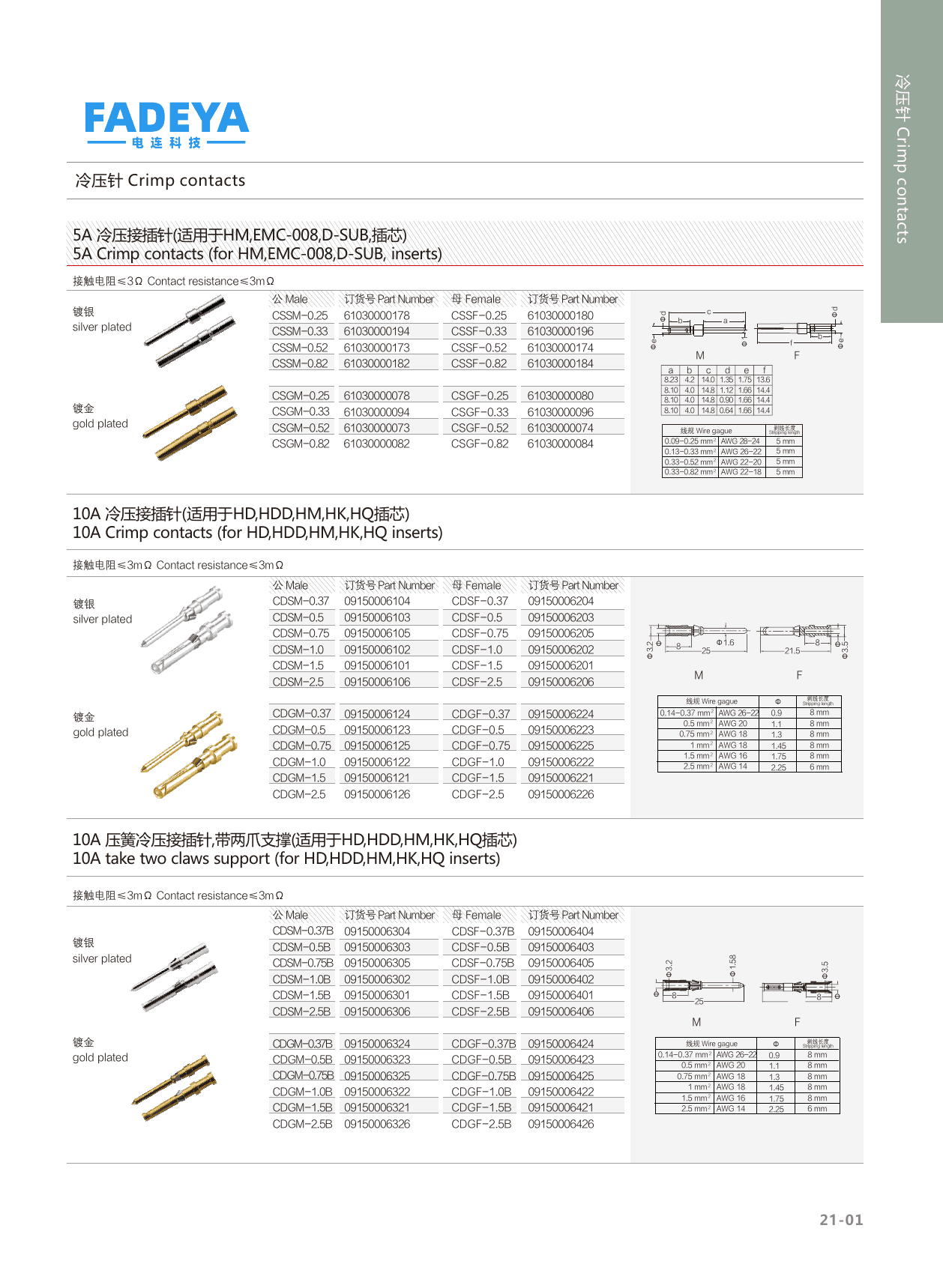

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Current Rating | 10 A |
| Contact Type | Crimp (solder-free), two-claw spring support |
| Gender | Male & female (pin & socket) |
| Plating | Silver / Gold |
| Contact Resistance | ≤ 3 mΩ |
| Wire Range | 0.14 ... 2.5 mm² (AWG 26–14) |
| Stripping Length | 8 mm (6 mm for 2.5 mm²) |
| Compatible Inserts | HD / HDD / HM / HK / HQ |
