M8 Junction Box, 6-Port, Integrated Cable
Narrow M8 box, 6 ports, single- or double-channel, integrated PVC/PUR cable.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M8-6P-1CN-PNP-5.0PVC/GY
M8-6P-1CN-PNP-5.0PUR/GY
M8-6P-1CN-NPN-5.0PVC/GY
M8-6P-1CN-NPN-5.0PUR/GY
M8-6P-1CN-NON-5.0PVC/GY
M8-6P-1CN-NON-5.0PUR/GY
M8-6P-2CN-PNP-5.0PVC/GY
M8-6P-2CN-PNP-5.0PUR/GY
M8-6P-2CN-NPN-5.0PVC/GY
M8-6P-2CN-NPN-5.0PUR/GY
M8-6P-2CN-NON-5.0PVC/GY
M8-6P-2CN-NON-5.0PUR/GY
Standard cable length 5.0 m, customizable in 0.5 m increments. Channel codes: 1CN/1CW single, 2CN/2CW double (M8); 1C single, 2C double (M12). Trunk codes: 5.0PVC/PUR integrated cable, M12/M23 plug, PW bare PCB header, TB screw-terminal hood. Colors: GY/GR Gray. Reference pages 03-06 cover the product overview, model numbering and mounting dimensions.
Technical Parameters
| Rated Supply | 24 V DC/AC (Ue) |
| Rated Voltage | 10 ... 30 V DC (Ub) |
| Load Current | 2 A per port |
| Current Capacity | 6 A total |
| Power LED | Green |
| IP Rating | IP67 |
| Std. Cable Length | 5.0 m (0.5 m increments) |

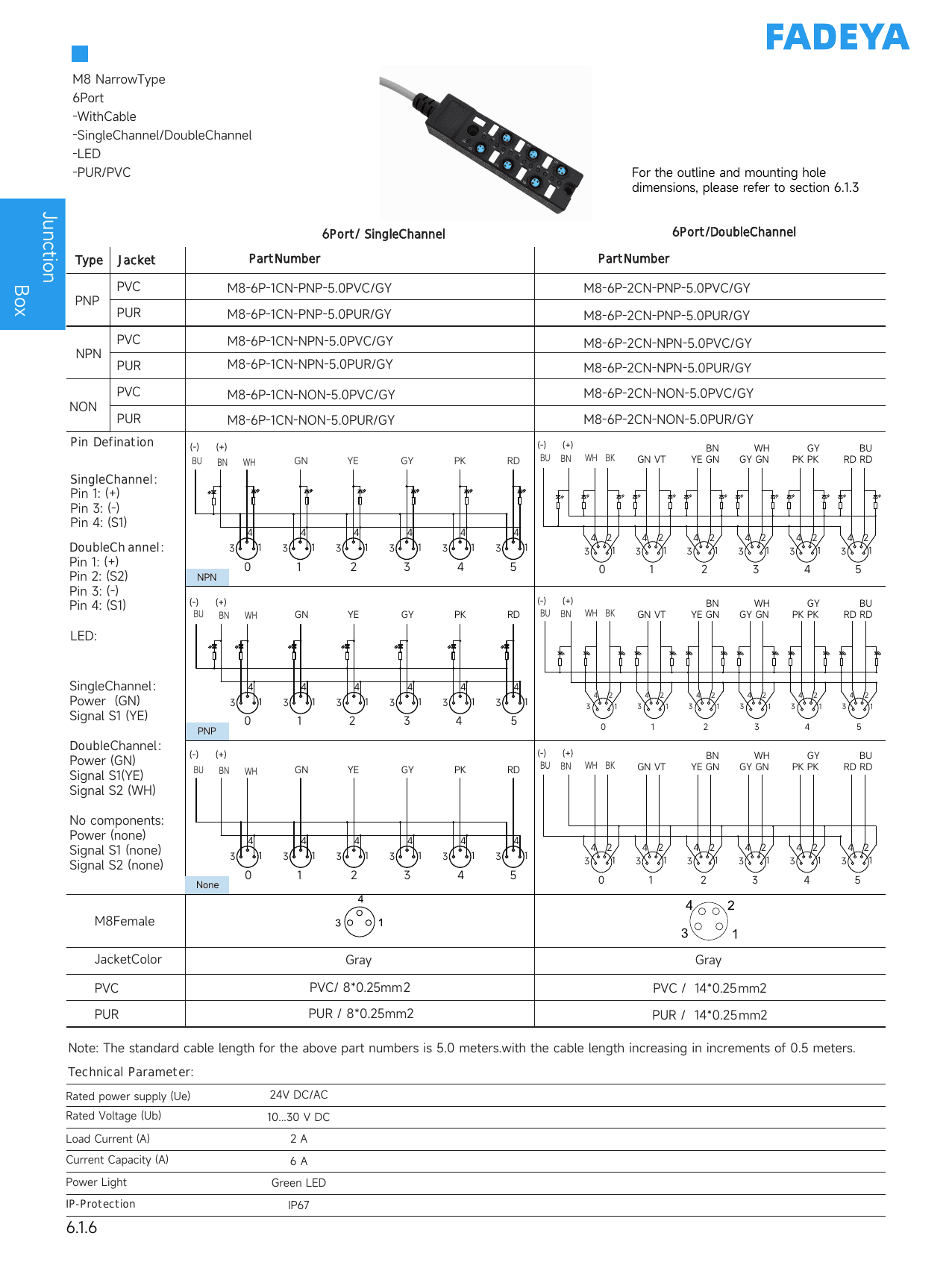

Datasheet
