7/8 Junction Box, 4 / 8-Port
Rugged 7/8" power-distribution box, 4 or 8 ports, in 3-, 4- and 5-pin; 600 V / 8 A, metal-nut locking.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
7/8-M03-4P-F03
7/8-M04-4P-F04
7/8-M05-4P-F05
7/8-M03-8P-F03
7/8-M04-8P-F04
7/8-M05-8P-F05
Standard cable length 5.0 m, customizable in 0.5 m increments. Channel codes: 1CN/1CW single, 2CN/2CW double (M8); 1C single, 2C double (M12). Trunk codes: 5.0PVC/PUR integrated cable, M12/M23 plug, PW bare PCB header, TB screw-terminal hood. Colors: GY/GR Gray. Reference pages 03-06 cover the product overview, model numbering and mounting dimensions.
Technical Parameters
| Rated Voltage | 600 V AC/DC |
| Rated Current | 8 A max. |
| Locking | Metal nut lock |
| Operating Temp. | 0 °C ... +60 °C |

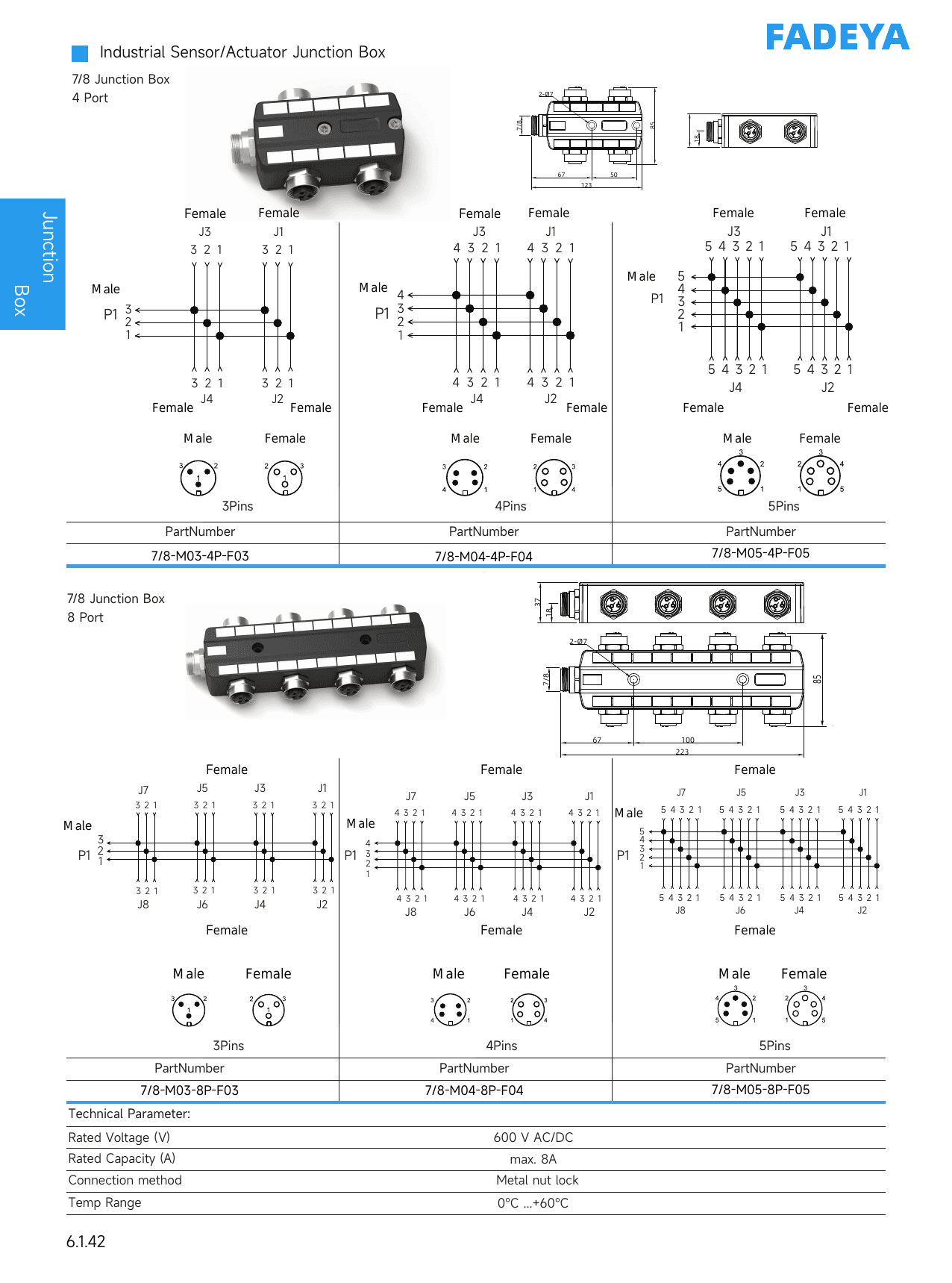

Datasheet
