LED CordsetsA3 pin
M12-to-M8 LED Cordset (PNP)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12A-M03S/M8-F03AL2-2.0PVC/GY
M12A-M03S/M8-F03AL2-2.0PVC/BK
M12A-M03S/M8-F03AL2-2.0PUR/GY
M12A-M03S/M8-F03AL2-2.0PUR/BK
M12A-M03S/M8-F03AL2-2.0HF/GY
M12A-M03S/M8-F03AL2-2.0HF/BK
M12A-M03S/M8-F03AL2-2.0AW/OG
Standard cable length 2m (cordsets) / 0.5m (flanges); custom lengths available. B or D coding available on request — replace M12A with M12B or M12D in the part number. Cable jacket (PVC / PUR / High-Flexible / Anti-Welding) and color (GY / BK / OG) options as listed; contact us to confirm stock for a specific configuration.
Technical Parameters
| Rated Voltage | 250V (3/4-pin) · 125V (5-pin) · 60V (8-pin) |
| IP Rating | IP67 |
| Cable Connection | Pre-molded |
| Cross Section | 0.34mm² (AWG24) / 0.25mm² |
| Cable Options | PVC · PUR · High-Flexible · Anti-Welding |
| Color Options | Grey (GY) · Black (BK) · Orange (OG) |

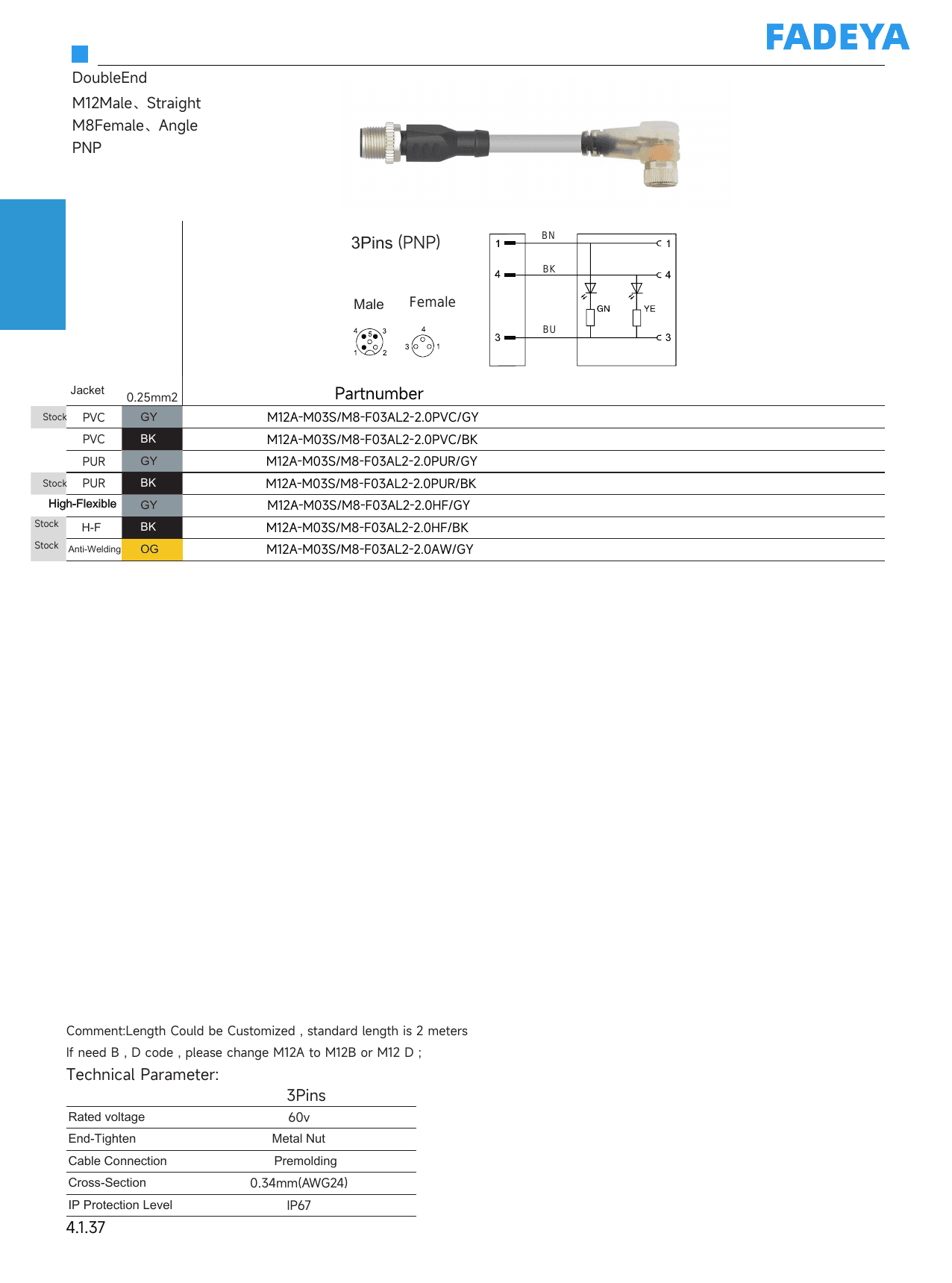

Datasheet
