12-Pin CordsetsA12 pinShielded
M12 12-Pin Shielded Cordset
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12A-M12S-2.0PUR/BK-SH
M12A-M12A-2.0PUR/BK-SH
M12A-F12S-2.0PUR/BK-SH
M12A-F12A-2.0PUR/BK-SH
Standard cable length 2m (cordsets) / 0.5m (flanges); custom lengths available. B or D coding available on request — replace M12A with M12B or M12D in the part number. Cable jacket (PVC / PUR / High-Flexible / Anti-Welding) and color (GY / BK / OG) options as listed; contact us to confirm stock for a specific configuration.
Technical Parameters
| Rated Voltage | 30V |
| IP Rating | IP67 |
| Cable Connection | Pre-molded |
| Cross Section | 0.25 / 0.14mm² |
| Cable Options | PVC · PUR |

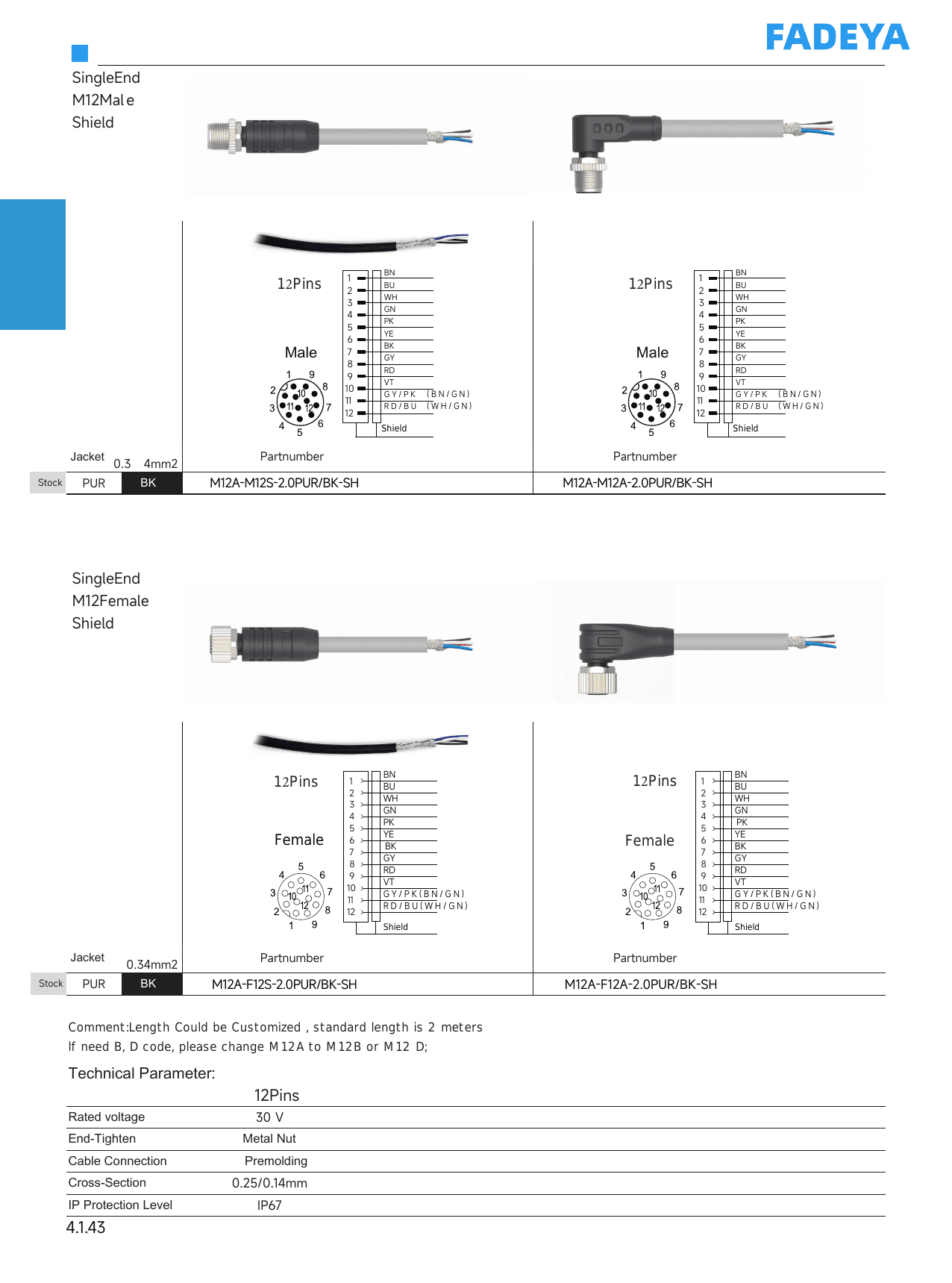

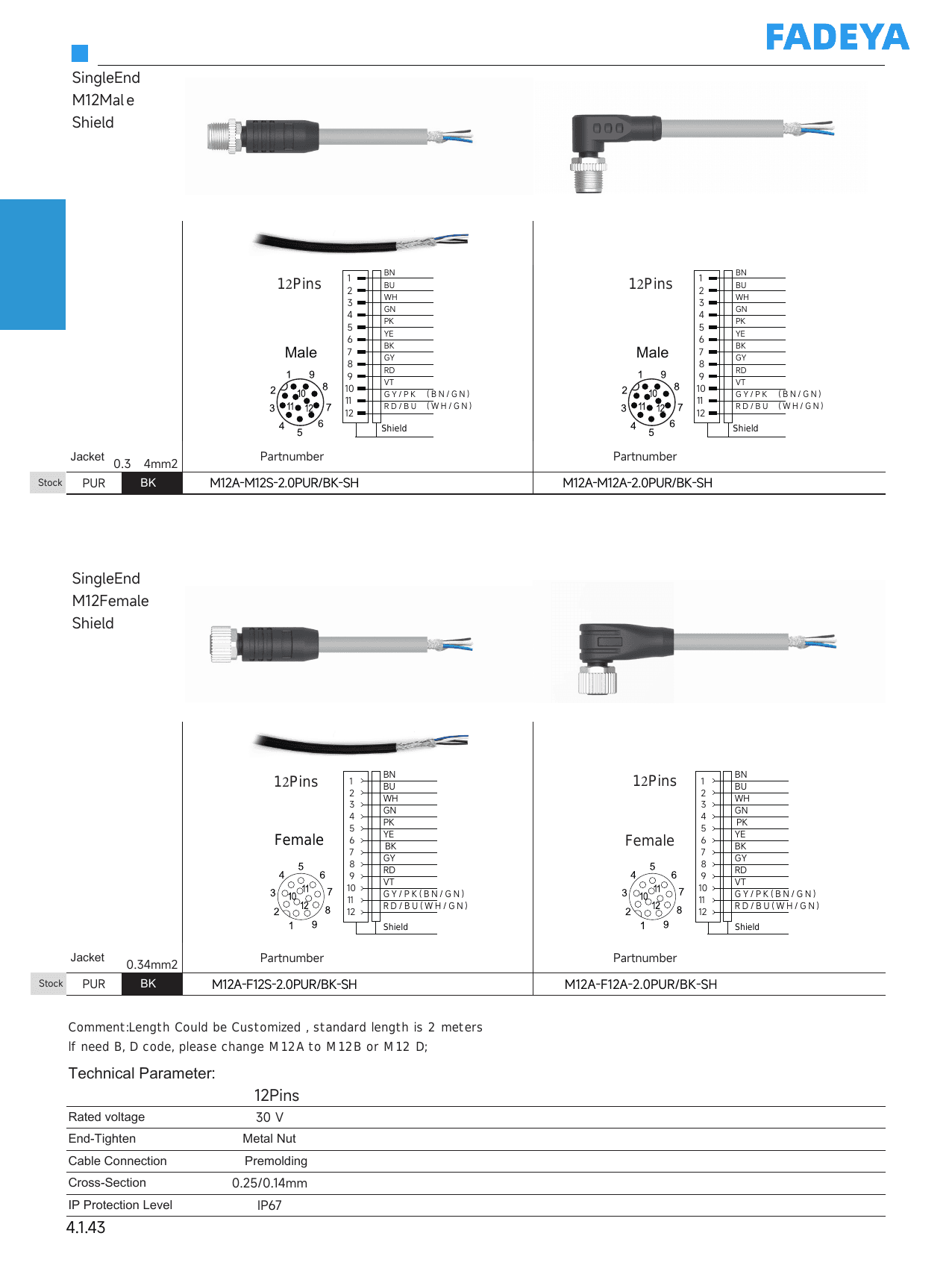

Datasheet
