Splitters & T-ConnectorsA3 pin
M12 Y-Splitter — to 2× M8 Female Angle
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12Y-M04S/2M8-F03A-2.0PVC/GY
M12Y-M04S/2M8-F03A-2.0PVC/BK
M12Y-M04S/2M8-F03A-2.0PUR/GY
M12Y-M04S/2M8-F03A-2.0PUR/BK
M12Y-M04S/2M8-F03A-2.0HF/GY
M12Y-M04S/2M8-F03A-2.0HF/BK
M12Y-M04S/2M8-F03A-2.0AW/OG
M12Y-M04S-1.0/2M8-F03A-2.0PVC/GY
M12Y-M04S-1.0/2M8-F03A-2.0PVC/BK
M12Y-M04S-1.0/2M8-F03A-2.0PUR/GY
M12Y-M04S-1.0/2M8-F03A-2.0PUR/BK
M12Y-M04S-1.0/2M8-F03A-2.0HF/GY
Standard cable length 2m (cordsets) / 0.5m (flanges); custom lengths available. B or D coding available on request — replace M12A with M12B or M12D in the part number. Cable jacket (PVC / PUR / High-Flexible / Anti-Welding) and color (GY / BK / OG) options as listed; contact us to confirm stock for a specific configuration.
Technical Parameters
| Rated Voltage | 60V (3-pin) · 30V (4-pin) |
| IP Rating | IP67 |
| Cable Connection | Pre-molded |
| Cross Section | 0.25mm² (AWG24) |
| Cable Options | PVC · PUR · High-Flexible · Anti-Welding |

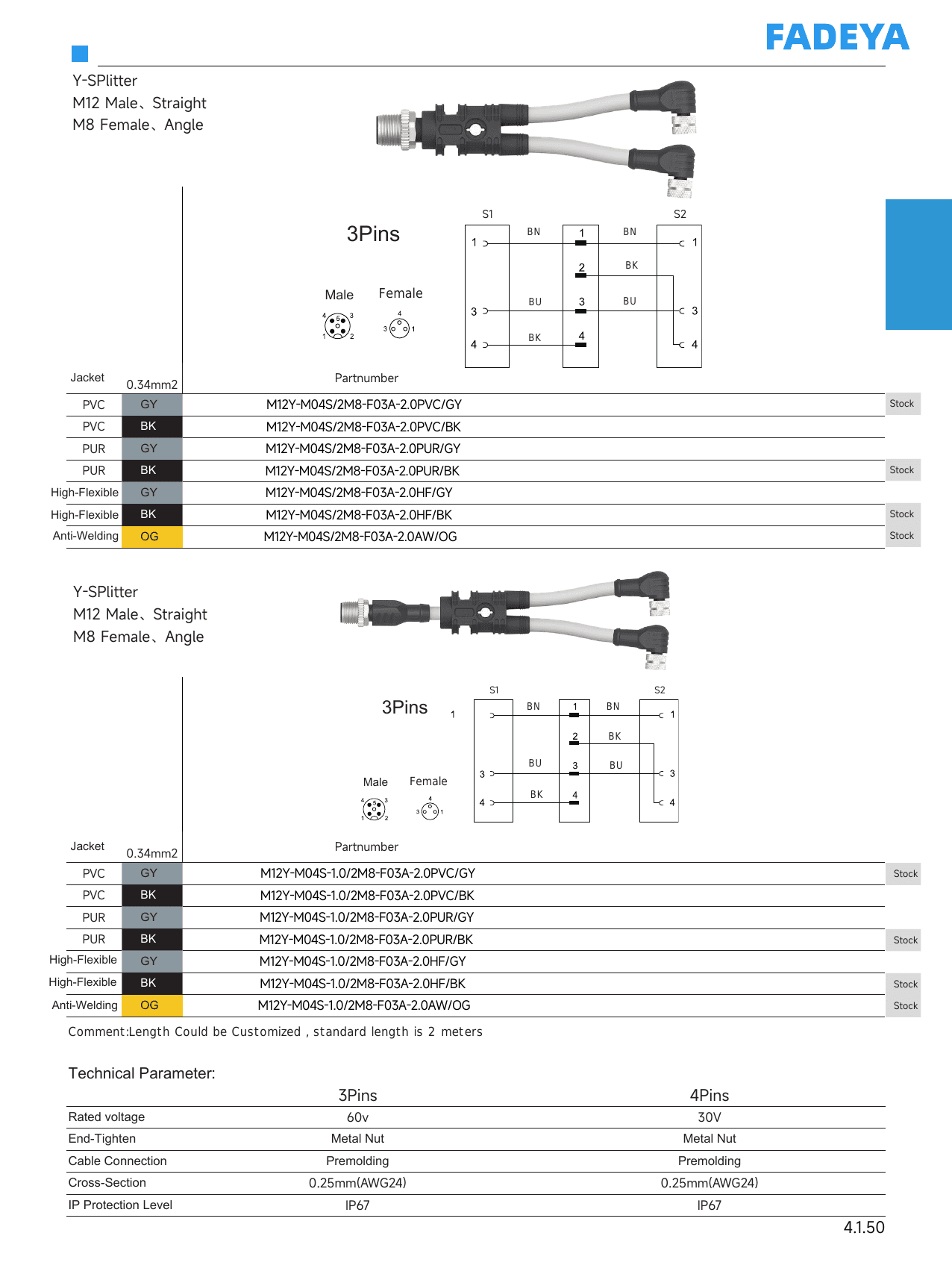

Datasheet
