Panel-Mount FlangesA/B/D4 · 5 · 8 pin
M12 Flange — Front Mounting
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FLF-M12A-M04(M16)-0.5
FLF-M12B-M04(M16)-0.5
FLF-M12D-M04(M16)-0.5
FLF-M12A-M05(M16)-0.5
FLF-M12B-M05(M16)-0.5
FLF-M12D-M05(M16)-0.5
FLF-M12A-M08(M16)-0.5
FLF-M12B-M08(M16)-0.5
FLF-M12D-M08(M16)-0.5
FLF-M12A-F04(M16)-0.5
FLF-M12B-F04(M16)-0.5
FLF-M12D-F04(M16)-0.5
Standard cable length 2m (cordsets) / 0.5m (flanges); custom lengths available. B or D coding available on request — replace M12A with M12B or M12D in the part number. Cable jacket (PVC / PUR / High-Flexible / Anti-Welding) and color (GY / BK / OG) options as listed; contact us to confirm stock for a specific configuration.
Technical Parameters
| Rated Voltage | 250V (4-pin) · 125V (5-pin) · 60V (8-pin) |
| IP Rating | IP67 |
| Cable Connection | Pre-molded |
| Cross Section | 0.34mm² (AWG22) / 0.25mm² |
| Mounting | M16 panel screw · standard 0.5m lead |

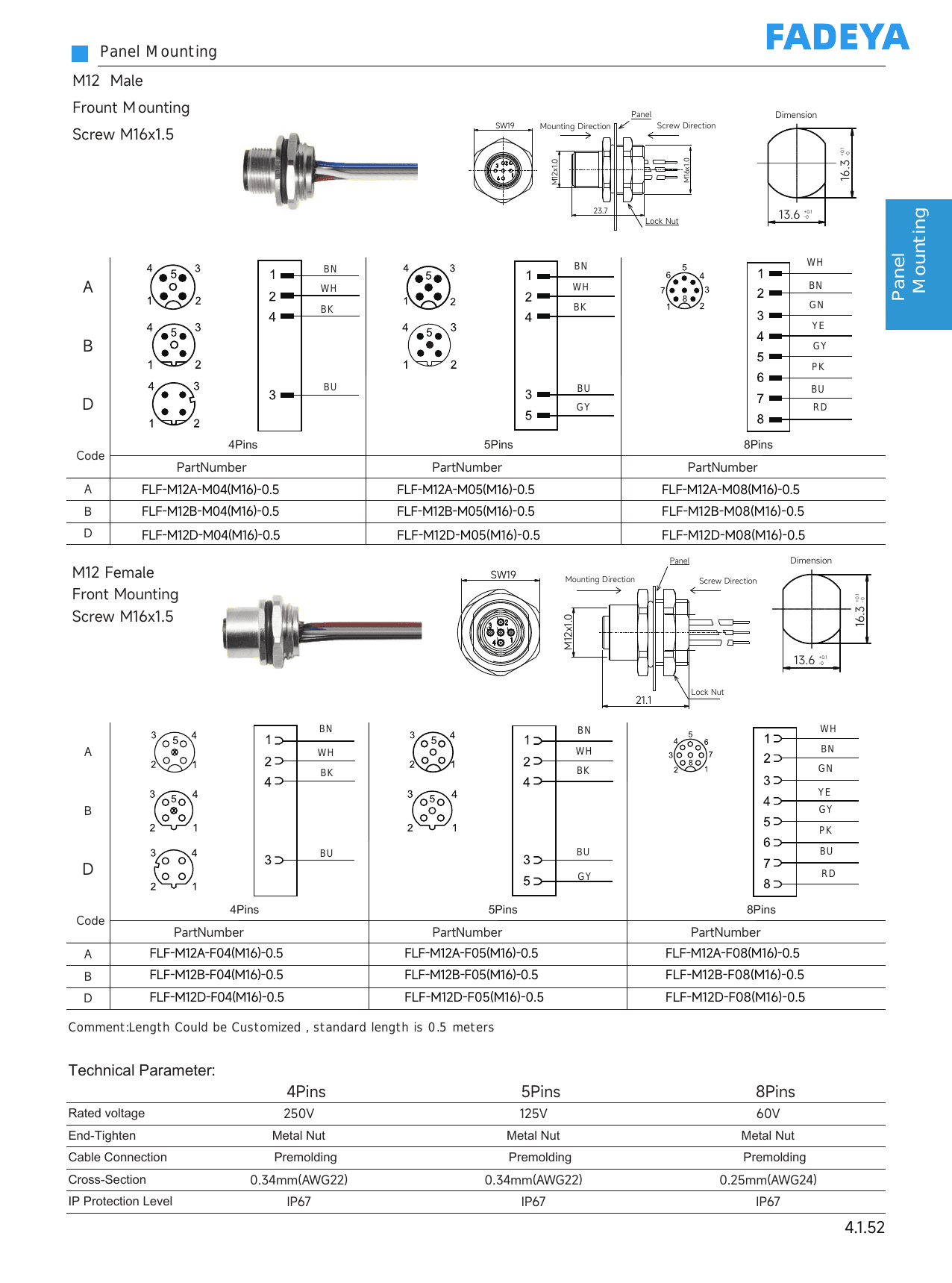

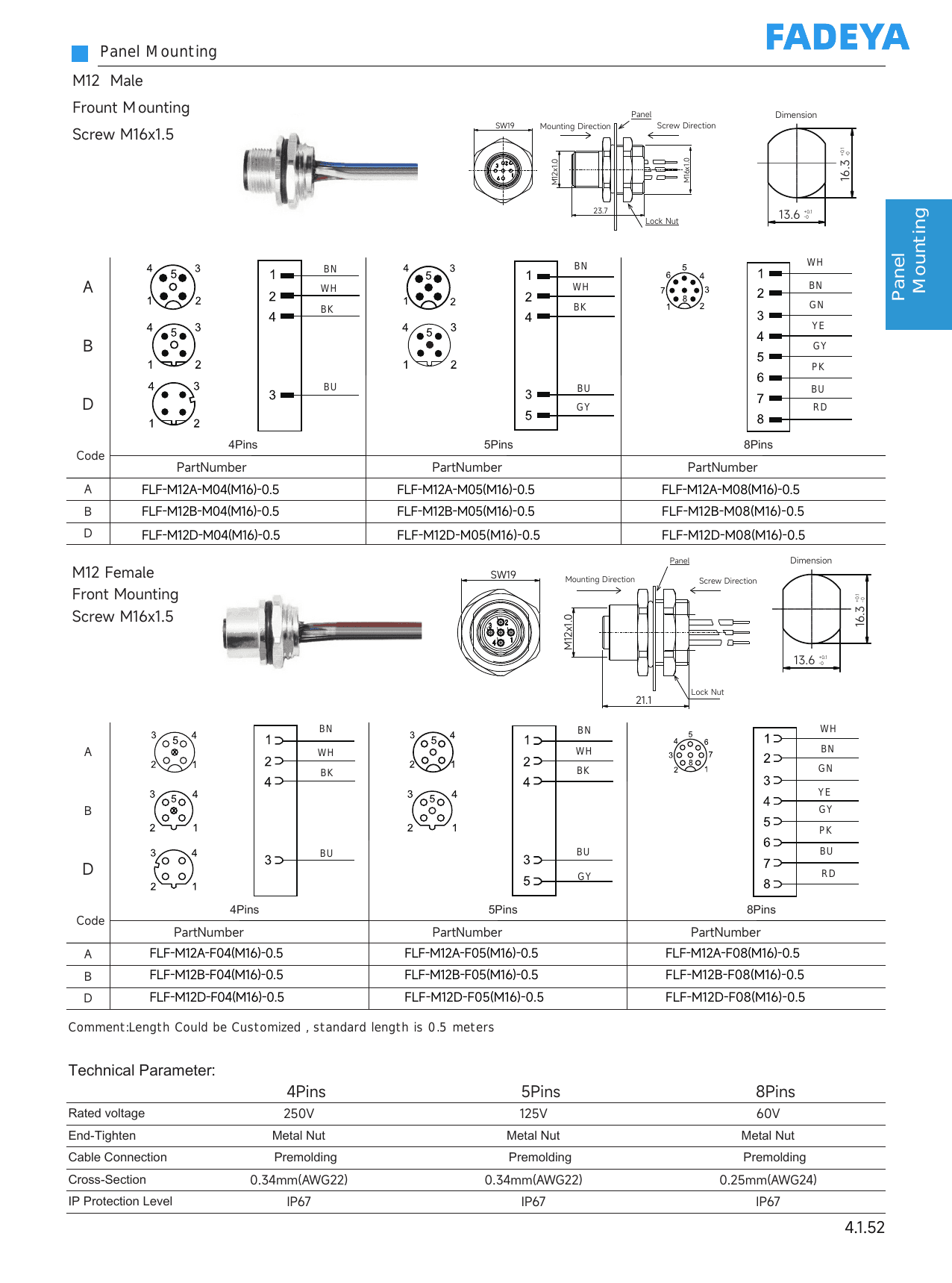

Datasheet
