Splitters & T-ConnectorsA/B/D5 pin

M12 Y-Distributor — to 2× M12

Request Quote

Download the complete PDF catalogue for full specifications and ordering details.

Download Full Catalogue (PDF)

Part Numbers

M12Y-M05A/2F05A-A

M12Y-M05A/2F05A-B

M12Y-M05A/2F05A-C

M12Y-M04A/2F04A-A

M12Y-M04A/2F04A-C

M12Y-F05A/2M05A-A

M12Y-F05A/2M05A-B

M12Y-F05A/2M05A-C

M12Y-F05A/2M05A-D

M12Y-F04A/2M04A-A

M12Y-F04A/2M04A-C

M12Y-F04A/2M04A-D

Standard cable length 2m (cordsets) / 0.5m (flanges); custom lengths available. B or D coding available on request — replace M12A with M12B or M12D in the part number. Cable jacket (PVC / PUR / High-Flexible / Anti-Welding) and color (GY / BK / OG) options as listed; contact us to confirm stock for a specific configuration.

Technical Parameters

Rated Voltage	60V AC/DC
Rated Current	max. 4A
Cable Connection	Metal nut
IP Rating	IP67 (EN 60529)

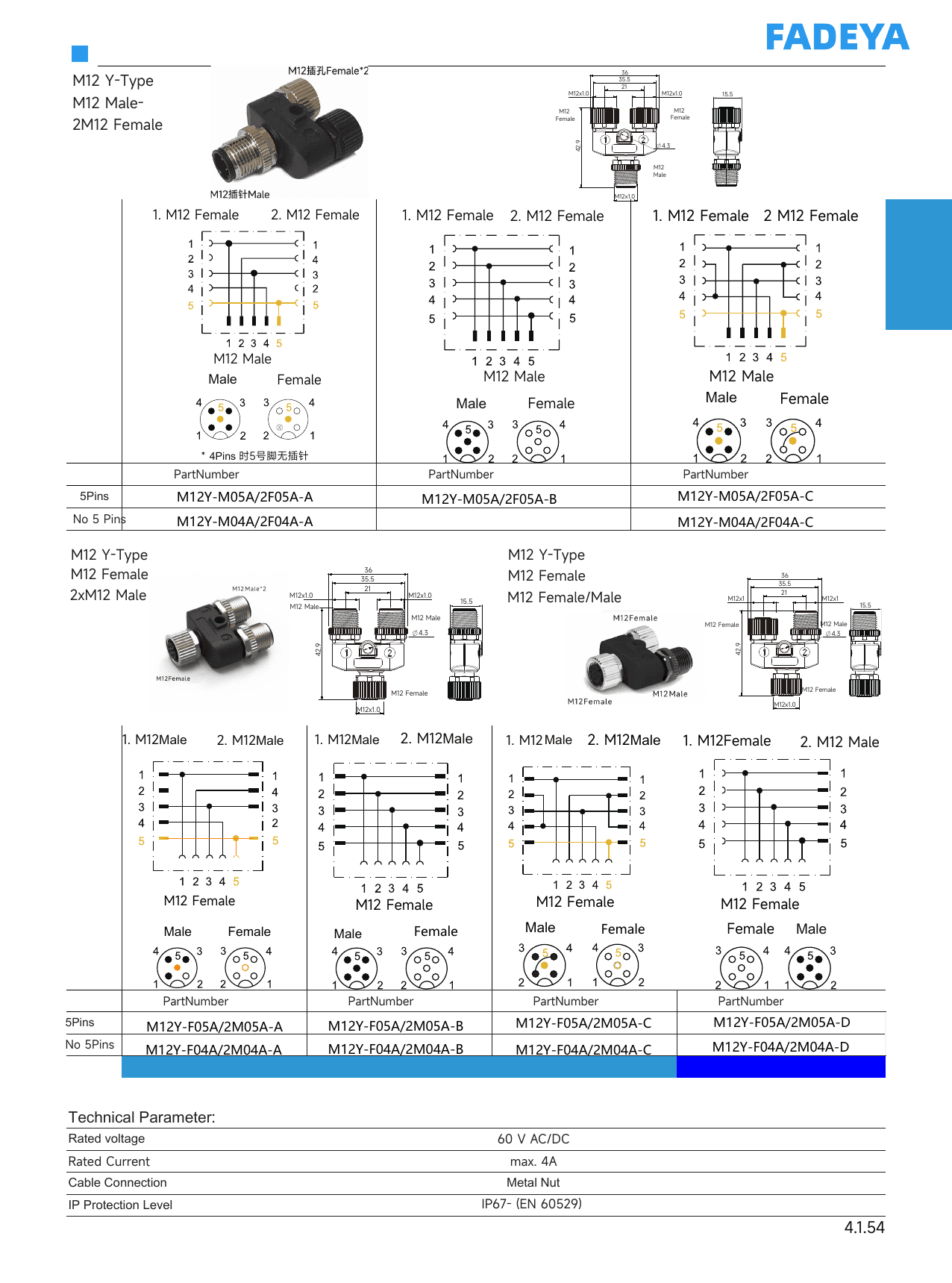

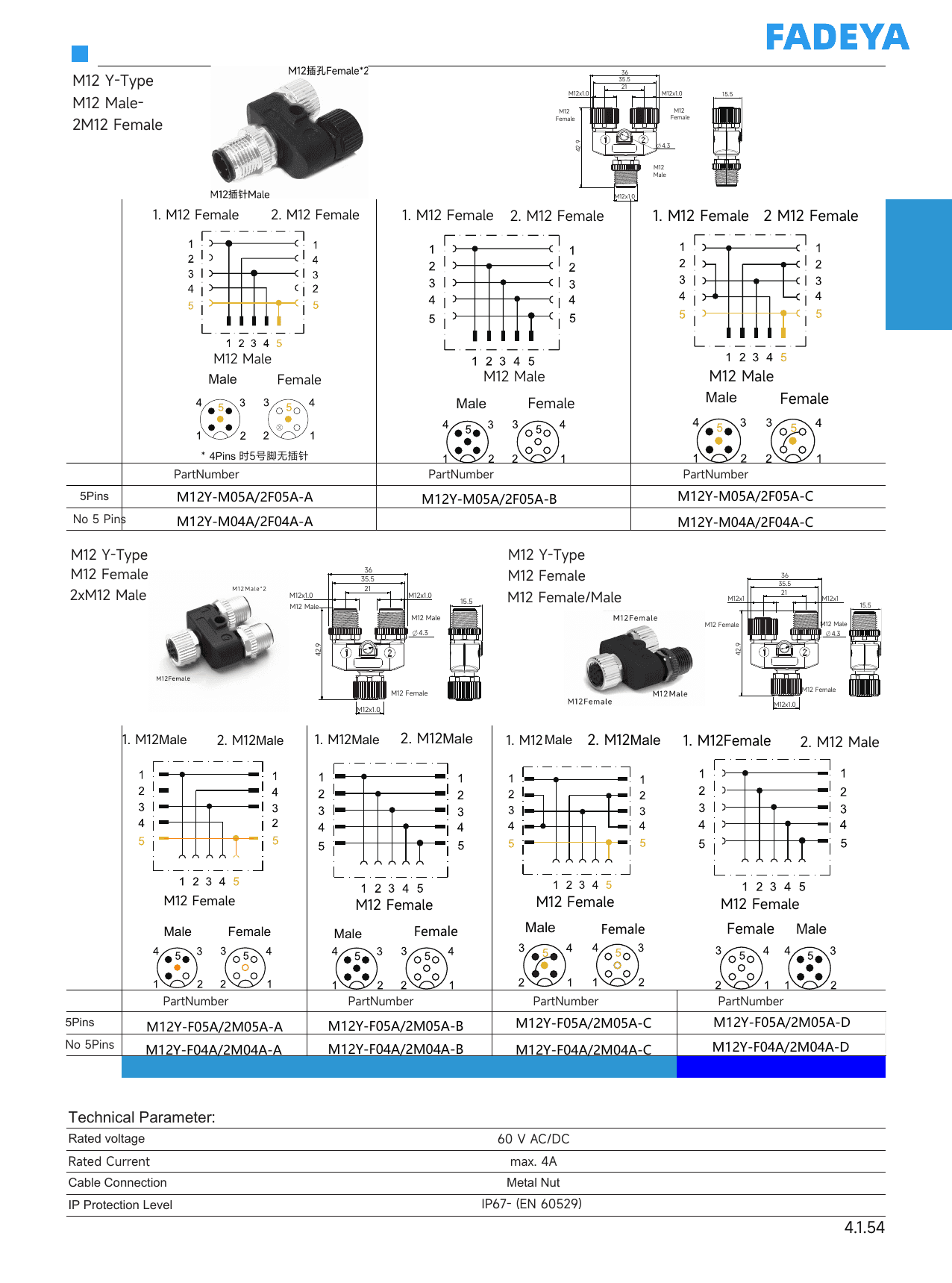

Datasheet

Zoom

Download Datasheet
