Splitters & T-ConnectorsA3 · 4 pin
M12 Y-Distributor — to 2× M8
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12Y-M03S/2XM8-F03S-A
M12Y-M04S/2XM8-F03S-A
Standard cable length 2m (cordsets) / 0.5m (flanges); custom lengths available. B or D coding available on request — replace M12A with M12B or M12D in the part number. Cable jacket (PVC / PUR / High-Flexible / Anti-Welding) and color (GY / BK / OG) options as listed; contact us to confirm stock for a specific configuration.
Technical Parameters
| Rated Voltage | 30V AC/DC |
| Rated Current | max. 4A |
| Cable Connection | Metal nut |
| IP Rating | IP67 (EN 60529) |

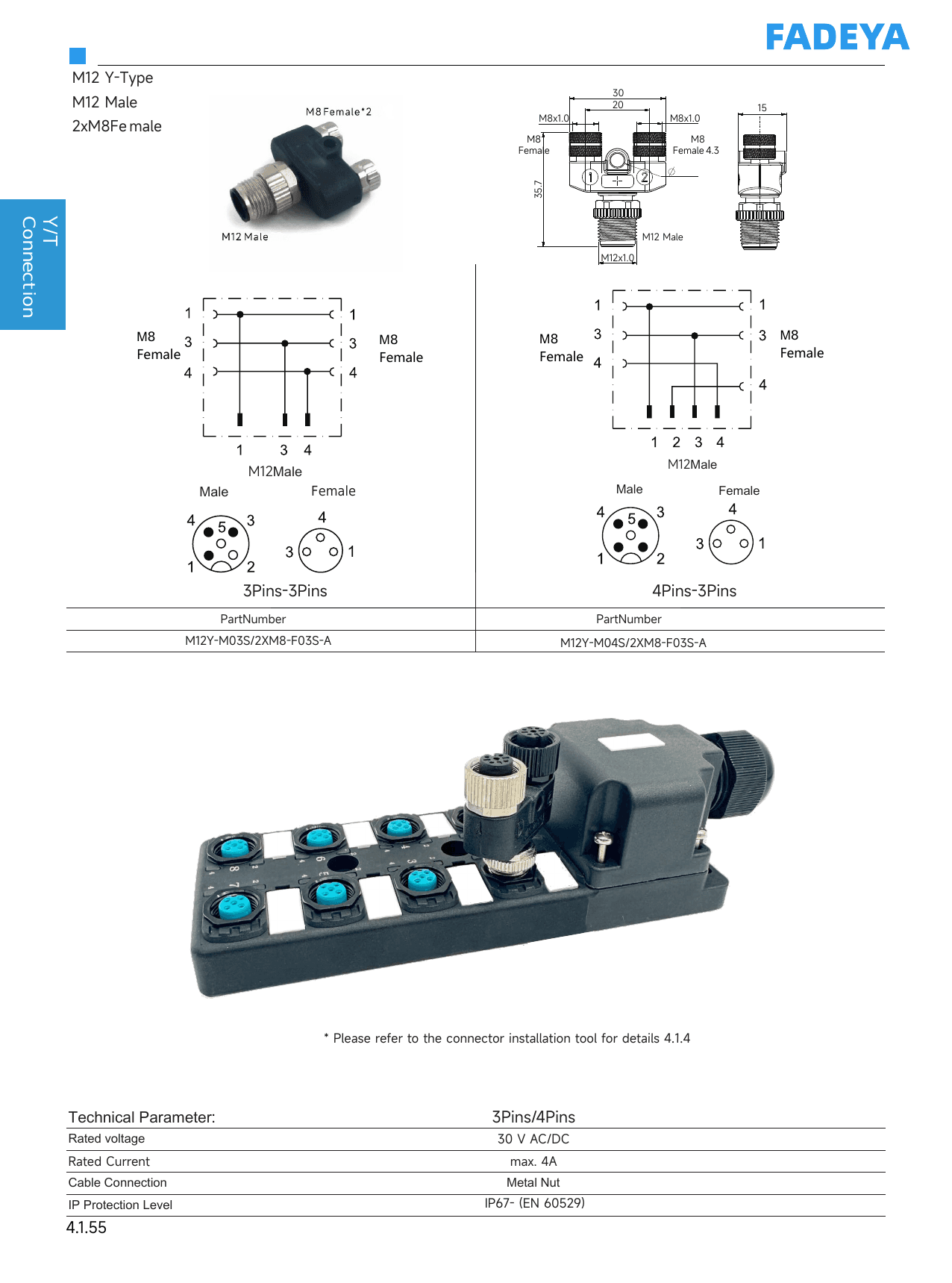

Datasheet
