M12 T-Connector (A/D/L Code)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12TA-F05/M05-F05
M12TD-M05/M05-F05
M12TL-M04/2F04
Standard cable length 2m (cordsets) / 0.5m (flanges); custom lengths available. B or D coding available on request — replace M12A with M12B or M12D in the part number. Cable jacket (PVC / PUR / High-Flexible / Anti-Welding) and color (GY / BK / OG) options as listed; contact us to confirm stock for a specific configuration.
Technical Parameters
| Rated Voltage | 60V AC/DC (A/D) · 63V AC/DC (L) |
| Rated Current | max. 4A (A/D) · max. 12A (L) |
| Cable Connection | Metal nut |
| IP Rating | IP67 |

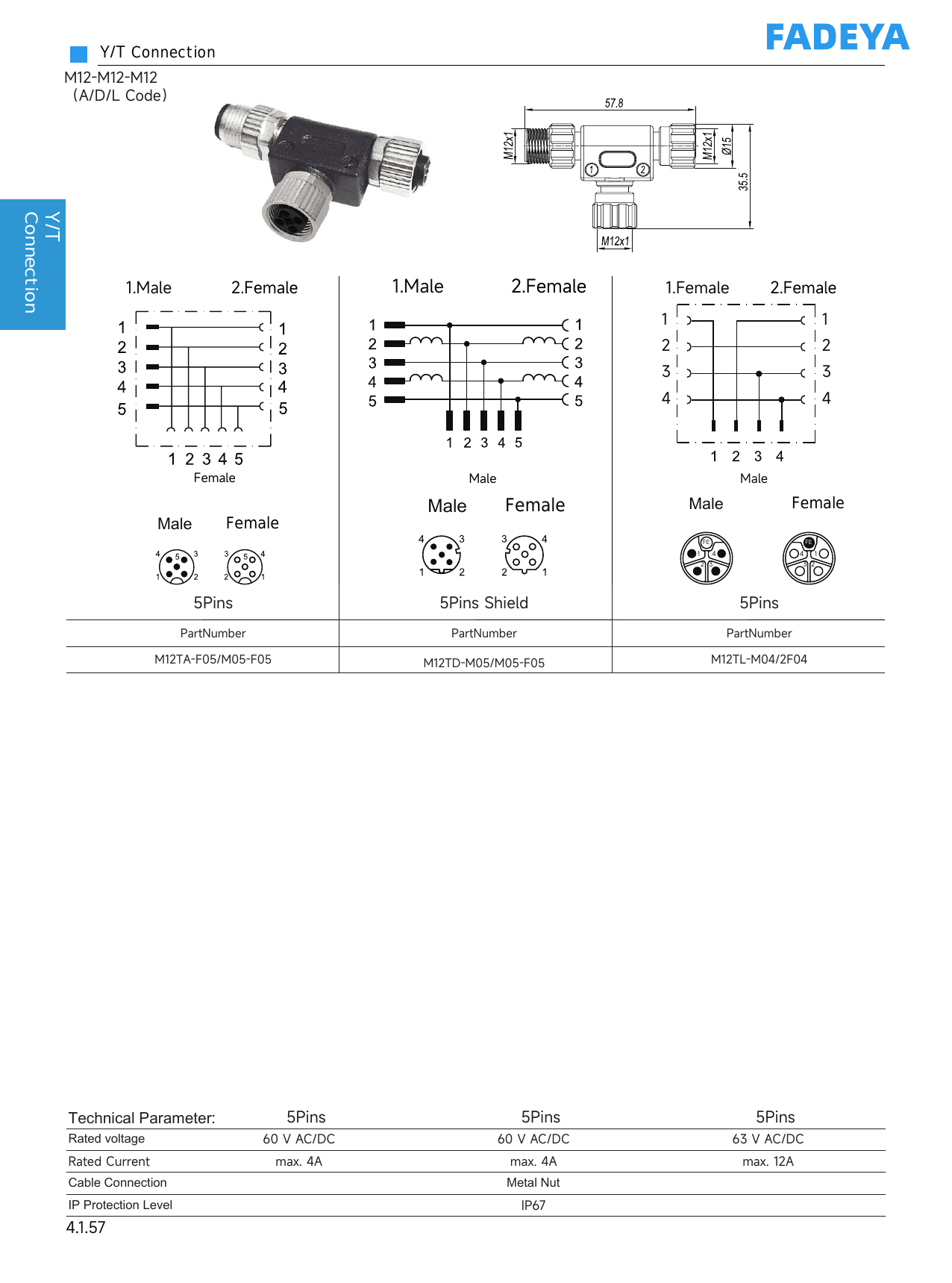

Datasheet
